Panasonic PT-RZ690L Specifications

  • Projector Type

    1-Chip DLP projector

  • Panel Size

    17.0 mm (0.67 in) diagonal (16:10 aspect ratio)

  • Display Method

    DLP chip, DLP projection system

  • Number of Pixels

    2,304,000 (1920200 pixels)

  • Light Source

    Laser diodes

  • Light output

    9,400 lm (Normal)
    10,000 lm (Center)
    7,500 lm (Eco)
    8,000 lm (Quiet 1)
    6,000 lm (Quiet 2)
    3,700 lm (Long Life 1)
    3,100 lm (Long Life 2)
    2,500 lm (Long Life 3)

  • Time until light output declines to 50 %

    20,000 hours (Normal/Quiet 1/Quiet 2)/24,000 hours (Eco)

  • Resolution

    1920x1200 pixels

  • Contrast ratio

    10,000:1 (Full On/Full Off, Dynamic Contrast)

  • Screen size (diagonal)

    50-600" (1.27-15.24m), 50-200" (1.27-5.08m) with ET-DLE055
    100-350" (2.54-8.89m) with ET-DLE035
    100-400" (2.54-10.16m) with ET-DLE020

  • Aspect Ratio

    16:10

  • Center-to-Corner Zone Ratio

    90%

  • Lens

    Optional powered zoom/focus lenses

  • Lens shift

    Vertical (from center of screen): +50 %, -16 %(powered)
    +40 %, -16 % with ET-DLE060

    Horizontal (from center of screen): +30 %, -10 % (powered)
    +10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060
    +28 %, -10 % with ET-DLE105/ET-DLE085

  • Keystone correction range

    Vertical: +/-40 Degree ( +/-5 Degree with ET-DLE020, +/-16 Degree with ET-DLE060, +/-22 Degree with ET-DLE105/ET-DLE085/ET-DLE055, +5 Degree with ET-DLE035)
    Horizontal: +/-15 Degree ( +/-10 Degree with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)

  • Installation

    Ceiling/floor, front/rear, free 360-degree installation

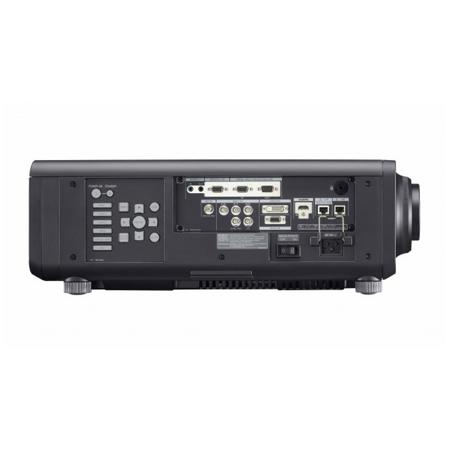

  • SDI In

    1x BNC: 3G/HD/SD-SDI input

  • HDMI In

    1x HDMI 19-pin (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input)

  • DVI-D In

    1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)

  • RGB 1 In

    RGB (5x BNC): RGB/YPBPR/YCBCR

  • RGB 2 In

    D-sub HD 15-pin (female): RGB/YPBPR/YCBCR

  • Serial/Multi Projector Sync

    In: D-sub 9-pin (female) for external control (RS-232C compliant)
    Out: D-sub 9-pin (male) for link control

  • Remote 1 In

    M3 for wired remote control

  • Remote 1 Out

    M3 for link control (for wired remote control)

  • Remote 2 In

    D-sub 9-pin (female) for external control (parallel)

  • Digital Link

    1x RJ 45 for network and DIGITAL LINK connections (HDBaseT compliant)
    PJLink (Class 2) compatible
    100Base-TX, Art-Net compatible
    HDCP 2.2 compatible
    Deep Color compatible
    4K/60p signal input

  • LAN

    1x RJ-45 for network connection, PJLink (Class 2) compatible
    10Base-T/100Base-TX, Art-Net compatible

  • Power Supply

    AC 100-240 V, 50/60 Hz

  • Power Consumption

    735 W (Normal)/575 W (Eco)/490 W (Quiet 1)/365 W (Quiet 2)
    265 W (Long Life 1)/235 W (Long Life 2)/205 W (Long Life 3)

  • Cabinet Materials

    Molded Plastic

  • Operation Noise

    40 dB (Normal)
    36 dB (Quiet1)
    35 dB (Quiet2)

  • Operating Environment

    Operating Temperature: 0-45 Degree C (32-113 Degree F)
    Operating Humidity: 10-80 % (No Condensation)

  • Applicable Software

    Logo Transfer Software
    Multi Monitoring & Control Software
    Early Warning Software
    Geometry Manager Pro (ET-UK20 Upgrade Kit
    ET-CUK10 Auto Screen Adjustment Kit)
    Smart Projector Control for iOS/Android

  • Dimensions

    19.60 x 7.87 x 21.18" (498 x 200 x 538mm)

  • Weight

    Approx. 48.9 lbs (22.2kg) (without lens)

  • UPC Code

    885170375338

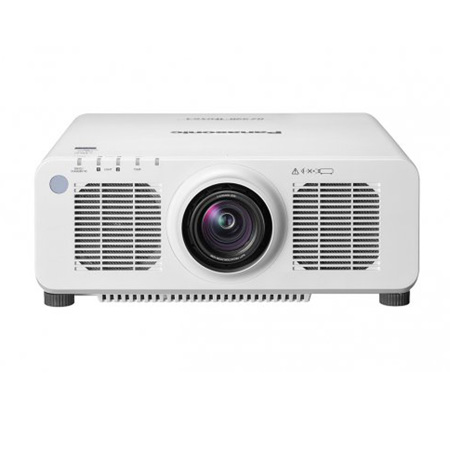

1 Accessories for Panasonic PT-RZ990L WUXGA Laser Light 1-Chip DLP Projector, No Lens, White

  • All Accessories (1)
  • Laptop Stand (1)

About Panasonic PT-RZ690L

Compact and Flexible 1-Chip DLp Projectors Deliver Elite Color Performance in Any Exhibition Space

Power to Impress with Accurate Colors
Deepen immersion in any environment with rich, accurate colors thanks to Panasonic's original Quartet Color Harmonizer color-wheel optimization and 1-Chip DLP imaging technology.

Easy to Install and Integrate
With versatile apps and functions, diverse optional lenses, support for 4K input signals4, and separate DIGITAL LINK and LAN terminals, these projectors reduce installation hassles with convenient flexibility.

Reliable Even in Harsh Conditions
Engineered for 20,000 hours5 of maintenance-free reliability with lasting brightness and color uniformity from the industry's leading dust-resistant optical engine.

Power to Impress with Accurate Colors

Panasonic Quartet Color Harmonizer Realizes High Brightness and Accurate Colors

Expect saturated color and finely expressed detail from next-generation 1-Chip DLP technology without sacrificing brightness thanks to Quartet Color Harmonizer, an original color-wheel technology with optimized optical design. It precisely modulates light-source output according to color requirements.

Excellent Uniformity for Multi-Screen Projection
1-Chip DLP technology allows for great uniformity between adjoining screens. Minimal variation between DMDs allows images from PT-RZ990 Series projectors to be easily blended for a more immersive viewing experience.

System Daylight View 3
Panasonic's premium System Daylight View 3 technology stops the picture washing out in bright light and preserves brightness, contrast, and color especially in museum and halls. It uses sensor information to adjust sharpness, gamma curves, and color to suit on-site lighting conditions.

Easy to Install and Integrate

Smart Projector Control
Smart Projector Control is a mobile app enabling remote control of select projectors. Install on your iPhone or Android phone or tablet, connect to your compatible projectors via Wi-Fi (LAN), and control functions including lens adjustment, input switching, status monitoring, and more. The app also features a handy auto-focus function that uses the smartphone's camera to achieve precise projector focus, saving time on installation.

Geometric Adjustment with Free Grid Correction
PT-RZ990 Series benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly create a distortion-free image.

Expanded Lens Lineup Widens the Scope of Installation
Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world's first UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

Supports 4K Signal Input
PT-RZ990 Series supports uncompressed 4K signal input via HDMI or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector's actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.

Separate LAN and DIGITAL LINK Terminals
Separate LAN and HDBase-T-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron, AMX, and Extron applications to be assigned to a dedicated LAN connection, freeing the DIGITAL LINK pipeline for video over cable runs of up to 150m (492')

Reliable Even in Harsh Conditions


Filterless Projector Structure with Airtight Optical Block
Heat-pipe-based1 filterless cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry's toughest guidelines, you're assured of a linear brightness ramp, superior color uniformity, and maintenance-free projection for 20,000 hours. These benefits are welcome when the projector is installed in a difficult-to-access location.

Dual Lasers for Failsafe Reliability
Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Backup Input Setting Protects Picture Display
Projectors can be configured to switch instantaneously to a backup input-signal should the primary signal be disrupted. This layer of insurance is invaluable in control rooms, security and surveillance applications, and for live events where image projection must not be interrupted

Multi Monitoring & Control Software with Early Warning Functions
Manage up to 2,048 devices via network with convenient system-map visualization and auto-search of unregistered devices. The free software is available with Early Warning Functions (automatic free 90-day trial available). These enable real-time monitoring, abnormality detection, and more.

Other Features

SOLID SHINE Laser Maintains Picture Quality for Longer
Thanks to two long-lasting solid-state laser modules, there are no lamps to replace, and color and brightness decline gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved for longer.

Dynamic Light Control for High Contrast
Dynamic Light Control directly modulates laser output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise light output adjustment while accurate contrast is delivered even when bright and dark scenes frequently interchange.

Detail Clarity Processor 3
This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural, convincing realism.

Contrast Sync and Shutter Sync Function
Contrast Sync, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Multi-Unit Brightness and Color Control
Sensors detect color and brightness apparent on screen. Projectors automatically calibrate for a uniform multi-screen image, adding a layer of convenience and cost saving for long-term events.

Multi-screen Support System
Optimally adjusts multiple screens with edge blending, color matching, and digital image enlargement.

Edge Blending
Edges of adjacent screens can be blended and their brightness controlled.

Color Matching
Corrects color reproduction variations of each projector via PC control software.

Digital Image Enlarging
Digital zoom up to 10x (H/V). Up to 100 images (10 x 10) can be edge-blended to create a large multi-screen image.

Panasonic PT-RZ690L Features

  • Deepen immersion in any environment with rich, accurate colors
  • 1-Chip DLP technology allows for great uniformity between adjoining screens
  • Geometric Adjustment with Free Grid Correction
  • Supports 4K Signal Input
  • Separate LAN and DIGITAL LINK Terminals
  • Filterless Projector Structure with Airtight Optical Block
  • Multi Monitoring & Control Software with Early Warning Functions
  • Multi-screen Support System

Key Features

  • Deepen immersion in any environment with rich, accurate colors
  • 1-Chip DLP technology allows for great uniformity between adjoining screens
  • Geometric Adjustment with Free Grid Correction
  • Supports 4K Signal Input
  • Separate LAN and DIGITAL LINK Terminals
  • Filterless Projector Structure with Airtight Optical Block

What's in the box:

  • Panasonic PT-RZ990L WUXGA Laser Light 1-Chip DLP Projector (White)
  • Wireless/Wired Remote Control Unit
  • Power Cord with Secure Lock
  • 2x Batteries for Remote Control (AAA/R03 or AAA/LR03 Battery)
  • Panasonic 3 Year Limited Warranty
