Panasonic Advidia TVI-Bundle-16, A-T-27-V Camera, VP-16-V2 Encoder
See all Panasonic items

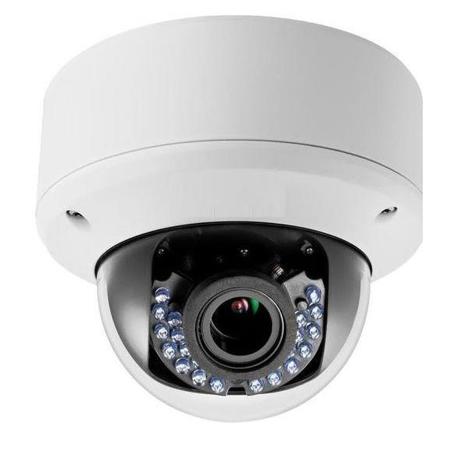

Panasonic Advidia TVI-Bundle-16 Camera/Encoder Bundle, A-T-27-V HD Dome Camera, VP-16-V2 16-Channel Encoder

SKU: PCTVIBNDLE16
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic Advidia TVI-Bundle-16, A-T-27-V Camera, VP-16-V2 Encoder Specifications

Camera: Device

Camera: Device

Jump to...

  • Image Sensor

    2MP CMOS Image Sensor

  • Signal System

    PAL/NTSC

  • Effective Pixels (H x V)

    1930x1088

  • Min. illumination

    0.01 Lux @ (F1.2,AGC ON)
    0 Lux with IR

  • Shutter Time

    1/25(1/30)s to 1/50,000s

  • Lens

    Motorized VF lens; 2.8 - 12 mm @ F1.4
    Angle of view : 35.1 Degree -114.5 Degree

  • Lens Mount

    f14

  • Day & Night

    ICR

  • Angle Adjustment

    Pan: 0 - 355 Degree
    Tilt: 0 - 75 Degree
    Rotation: 0 - 355 Degree

  • Synchronization

    Internal synchronization

  • Video Frame Rate

    1080p@25fps/720p@30fps

  • HD Video Output

    1 Analog HD Output

  • Wide Dynamic Range

    WDR (62dB)

  • 3-Axis Adjustment

    Yes

Camera: Menu

Jump to...

  • Camera ID

    On/off (0-255)

  • AGC

    Support

  • D/N Mode

    Color/BW/Auto/EXT

  • White Balance

    Auto/User/Push/8000K/6000K/4200K/3000K

  • Privacy Mask

    On/Off, maximum 2 zones

  • Motion Detection

    On/Off, maximum 4 zones

  • BLC

    Supported

  • Anti-flicker

    On/Off

  • Language

    English

Camera: General

Jump to...

  • Operating Conditions

    -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C)
    Humidity 90% or less (non-condensing)

  • Power Supply

    12 VDC +/-15%, 24 VAC +/-15%

  • Power Consumption

    Max. 4W, -A: Max. 5W

  • Weather Rating

    IP66

  • IR Range

    Up to 40m

  • Impact Protection

    IK10

  • Communication

    Coax, (TVI)

  • Dimensions

    5.72 x 4.9" (145.2 x 124.1mm)

  • Weight

    2.97 lb (1.35kg)

Encoder: Video/Audio (Input/Output)

Jump to...

  • Video Input

    16-Channel
    BNC interface

  • HDTVI Video

    720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30, CVBS

  • Audio Input

    4-Channel
    RCA (2.0 Vp-p, 1 KO)

Encoder: Video/Audio Encoding

Jump to...

  • Audio Output

    1-ch, RCA (Linear, 1 KO)

  • Video Compression

    H.264

  • Audio Compression

    G.711u

  • Fram Rate

    1/16 fps to real-time frame rate

  • Video Bitrate

    2 Kbps to 10 Mbps

  • Audio Bitrate

    4 Kbps

  • Stream Type

    Video, Video & Audio

  • Main Stream

    1080P/720P/WD1/4CIF/VGA/CIF

  • Dual-Stream

    Support, sub-stream: WD1/4CIF (12fps), CIF/QVGA/QCIF (real-time)

Encoder: Storage

Jump to...

  • Type

    SATA, NAS, ISCSI, IPSAN

  • Number

    2

  • Capacity

    Up to 6TB for each disk

Encoder: External Interface

Jump to...

  • Two-Way Audio Input

    1-Channel, RCA (2.0 Vp-p, 1 KO)
    (using the 1st channel of audio input)

  • Network Interface

    1, RJ45 10M/100M/1000M self-adaptive Ethernet Interface

  • Series Interface

    1, RS-485; Half-duplex

  • Alarm In/Out

    16-channel input/4-channel output

  • Power Supply

    12 VDC

Encoder: General

Jump to...

  • Power Consumption

    Without HDD: =45 W

  • Working Temperature

    14 Degree F to 131 Degree F (-10 Degree C to 55 Degree C)

  • Working Humidity

    10% to 90%

  • Chassis

    380 mm 1U chassis

  • Dimensions

    14.9 x 11.4 x 1.89" (380 x 290 x 48mm)

  • Weight

    Without HDD: 4.41 lb (2Kg)

About Panasonic Advidia TVI-Bundle-16, A-T-27-V Camera, VP-16-V2 Encoder

This Camera/Encoder Bundle includes A-T-27-V 1080P Analog HD Dome Camera and a VP-16-V2 16-Channel Encoder.

Panasonic Advidia TVI-Bundle-16, A-T-27-V Camera, VP-16-V2 Encoder Features

  • A-T-27-V Camera Features
  • 2 Megapixel high-performance CMOS
  • HD Analog 1080P resolution
  • Compatible with VP-16v2 and VP-8v2
  • 2.8 - 12mm motorized vari-focal lens
  • True Day/Night, Smart IR
  • Up to 40m IR distance
  • IP66 weatherproof & vandal proof
  • OSD menu
  • 24V AC/ 12V DC
  • VP-16-V2 Encoder Features
  • Connectable to HD-TVI and analog cameras
  • Connectable to the coaxitron camera/dome with long transmission distance
  • Redundant recording and holiday recording
  • Manual video quality diagnostics
  • VCA detection alarm (line crossing detection and intrusion detection)
  • Locks and unlocks video files HDD quota and group management; different capacity can be assigned to different cameras under quota mode
  • 1 self-adaptive 10M/100M/1000M network interface
  • Network detection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • A-T-27-V Camera Highlights
  • 2 Megapixel high-performance CMOS
  • HD Analog 1080P resolution
  • Compatible with VP-16v2 and VP-8v2
  • VP-16-V2 Encoder Highlights
  • Connectable to HD-TVI and analog cameras

What's in the box:

  • A-T-27-V HD Dome Camera
  • VP-16-V2 16-Channel Encoder
  • Panasonic 3 Year Limited Warranty
