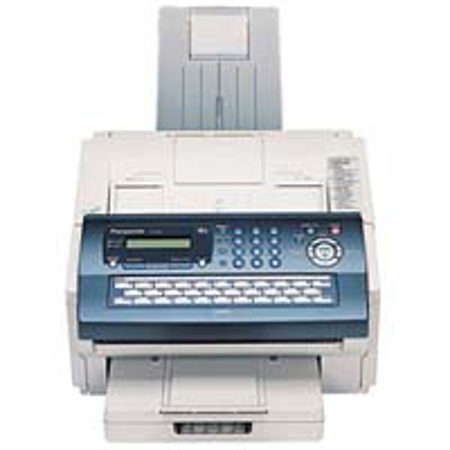

Panasonic Panafax UF-5950, Super G3 Monochrome Laser Fax Machine.

SKU: PCUF5950

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Specification about this item

  • Compatibility

    ITU-T Group 3, ECM

  • Modem Speed

    33,600 - 2,400 bps with automatic fallback

  • Coding Scheme

    MH/MR/MMR

  • Transmission Speed

    Approx. 3 sec.

  • Effective Scanning Width

    8.3" (212 mm)

  • Document Size


    Max. 10.1" x 78.7" (257 mm x 2000 mm) (with operator's assistance)
    Min. 5.8" x 5.0" (148 mm x 128 mm)

  • Automatic Document Feeder Capacity*

    50 sheets

  • Document Thickness


    Single sheet: 0.0024" - 0.0060" (0.06 - 0.15 mm)
    Multi-sheet: 0.0024" - 0.0039" (0.06 - 0.10 mm)

  • Scanning Resolution (Fax)


    Standard: 203 dots/inch x 98 lines/inch (8 dots/mm x 3.85 lines/mm)
    Fine: 203 dots/inch x 196 lines/inch (8 dots/mm x 7.7 lines/mm)
    Super Fine: 406 dots/inch x 391 lines/inch*7 (16 dots/mm x 15.4 lines/mm)

  • Scanning Speed*

    Approx. 2.8 sec. (Letter, Standard mode)

  • Recording Method

    Laser printing on plain paper

  • Printing Speed*

    6.5 ppm (Letter)

  • Recording Paper Size

    Letter / Legal / A4, cut-sheet on plain paper

  • Effective Recording Width

    8.2" (208 mm) (Letter)

  • Recording Paper Capacity

    250 sheets (20 lb., 75 g/m2) With optional cassette: Approx. 500 sheets max. total

  • Recording Resolution

    Fax / Copy 406 dpi x 391 dpi

  • Image Memory Capacity*

    8 MB (Approx. 480 pages)

  • Power Requirements

    AC 120 V, 60 Hz

  • Power Consumption

    Max. Approx. 470 W
    Sleep mode: 1.2 Wh

  • Dimensions (W x D x H)


    14.6" x 18.0" x 9.8" (370 mm x 457 mm x 250 mm)
    (Excluding projections and optional Paper Cassette)

  • Weight

    20 lb. (9.0 kg) (Excluding consumable supplies and optional equipment)

  • Warranty

    Manufacturer's Warranty of 90 Day Labor & 1 Year Parts

  • Other

  • Note

  • UPC Code

    092281862781

About Panasonic UF5950

A Reliable Fax with True Business Power. Simple but Trustworthy True Business Power is Here. The Panafax UF-5950 inherits the real business power that has made the Panafax name synonymous with business faxes. Amazing, in spite of being small enough to fit easily on your desk, the UF-5950 comes loaded with all the features and functions you'd expect from a top of-the-line business fax, not to mention Super G3 fax transmission.

Even with high volume transmissions and reception, the UF-5950 easily handles any fax job. Offering true business-level performance, the UF-5950 is not only durable and highly reliable, it is also economical and practical. Count on the Panafax UF-5950. The simplest solution to your business fax demands.

Business-Optimized Fax Capability:
High-speed Super G3 Fax Transmission with Quick Memory Transmission, the UF-5950 dials as soon as the first page has been scanned even when sending a large, multi-page document.

High-speed Scanning:
Built for true business-level faxing, the UF-5950 scans documents quickly at a rate of 2.8 seconds per page. In combination with the 50-sheet automatic document feeder, this makes it possible for you to fax a multi-page document at the touch of a button without having to wait around

480 Pages Large Document Memory:
With its high-capacity 8 MB document memory, the UF-5950 can store up to 480 pages. This allows it to easily handle several high-volume jobs at once, so you'll never have to wait around.

Low Power Consumption:
Thanks to our Energy Saver technology, the UF-5950's power consumption has been reduced to a mere 1.2 Wh in the sleep mode.

Panasonic UF5950 Features

  • Dependable Plain Paper Laser Fax
  • High-speed Super G3 Fax Transmission
  • High-speed Scanning
  • 480 Pages Large Document Memory
  • Low Power Consumption
  • Auto Dialer One-touch: up to 32 stations
  • Abbreviated: up to 100 stations
  • Digit of Telephone number (up to 36 digits)
  • Program keys (up to 4 Programs)
  • Multi-Tasking Operation
  • Directory Search Dialing
  • Directory Sheet Print
  • Intelligent Redial
  • Chain Dialing
  • Distinctive Ring Detector (DRD)
  • Quick Memory Transmission
  • Multi-station Transmission (up to 144 stations)
  • Automatic Memory Retransmission
  • Deferred Transmission
  • Deferred Multi-station Transmission
  • Priority Direct Transmission
  • Edit File Mode with View Mode
  • Automatic Cover Sheet
  • Receive to Memory
  • Substitute Reception
  • Selective Reception
  • Number of memory job files (Max. 10 files)
  • Fax Forward
  • Polling / Multi-station Polling (up to 144 stations)
  • Deferred Polling/Deferred Multi-Station Polling
  • Memory Polling Transmission (1 file)
  • Confidential Mail Box (10 mail boxes)
  • Password Transmission/Reception
  • ITU-T Sub-address Transmission
  • Panasonic Super Smoothing (Fax/Copy)
  • 64-Level Halftone
  • Automatic/Fixed Reduction
  • Overlapping Print
  • Collation Stack
  • Verification Stamp
  • Communication Journal with image data
  • Header/Total Page Print
  • Transaction Journal with view mode
  • Fax Access Code(Fax Lock)
  • PIN Code Access
  • Fax/Tel Auto Switch
  • External TAM Interface
  • Remote Reception
  • Multi-Purpose LCD Display (20 x 2 lines)
  • Multiple Copy with Sorting (up to 99 copies)
  • Reduction Copy
  • Energy Saver
  • Remote Diagnostic
  • Check & Call Function
