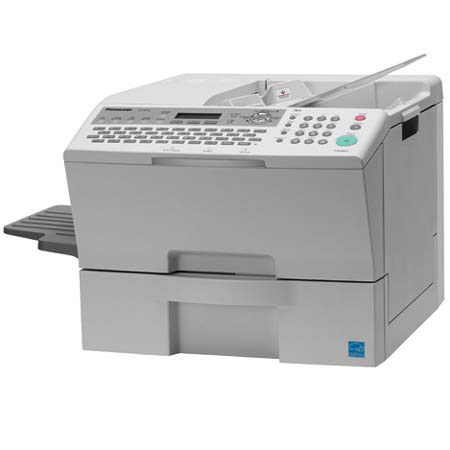

Panasonic UF-7200 Desktop Laser Multifunction Fax Machine with 100-Sheets ADF, 19ppm, 1.4 Seconds Quick Scan & USB 1.1 Port

SKU: PCUF7200

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic UF7200 Desktop Laser Fax Machine, 1.4 Seconds Specifications

  • ADF Capacity

    100 Sheets

  • Recording Paper Capacity

    550 Sheet

  • Power Requirements

    AC 120V, 50/60 Hz

  • Power Consumption

    Max: Approximately 1000 W
    Power Save Mode: 9.5 Wh
    Sleep Mode: 4.5 Wh

  • Document Size

    Max: 8.5" x 78.7" with operators assistance
    Min: 5.5" x 5.5"

  • Image Memory Capacity

    Standard: 3 MB (180 pages)
    Max: 2GB (12,750 pages) with optional SD Memory card

  • Network Scanner Interface

    10/100 Ethernet

  • Scanning Resolution

    Standard: 150 dpi x 150 dpi
    Fine: 300 dpi x 300 dpi
    Super Fine: 600 dpi x 600 dpi

  • Scanning Speed

    Approximately 1.1 seconds (150 x 150 dpi)

  • Scanning Speed

    Approximately 1.1 seconds (150 x 150 dpi)

  • Printer Interface

    USB 1.1 / 10/100 Ethernet

  • Printer Language

    Standard: Panasonic Printing System for Windows

  • Paper Size

    Letter/ Legal/ A4

  • Printer Memory

    32MB

  • Printing Resolution

    600dpi: 600 x 600dpi

  • G3 Fax Compatibility

    ITU-T Group 3, ECM

  • G3 Fax Transmission Speed

    Approximately 2.7 seconds per page (letter size)

  • G3 Fax Scanning Resolution

    Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
    Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
    Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)

  • No. of Auto Dialers

    Standard: 580
    Max: 1,000 with optional SD memory card (32MB to 2GB)

  • Coding Scheme

    MH/MR/MMR/JBIG

  • Number of Memory Job Files

    50

  • Effective Scanning Width

    8.34"

  • Scan-to-Email Compatibility

    IETF RFC 2305, ITU-T T.37

  • Communication Protocol

    TCP/IP, SMTP, POP3, MIME, DHCP, LDAP, SNMP/MIB

  • Data Format

    TIFF-FX (Profile S/FJ), PDF

  • Dimensions

    17.3" x 17.7" x 14.2" (440mm x 450mm x 360mm)

  • Weight

    28kg

  • Warranty

    Manufacturer's Warranty of 90 Day Labor & 1 Year Parts

About Panasonic UF7200 Desktop Laser Fax Machine, 1.4 Seconds

The Panasonic UF-7200 high-volume workstation is designed to handle the needs of busy offices or midsize workgroups. With standard 550 sheet paper capacity, 100-page Auto Document Feeder and 19ppm print engine the UF-7200 is built for true office productivity. With the standard 10/100 Ethernet and USB 1.1 communications port the Panafax UF-7200 is also a robust workgroup laser printer operating at 19ppm with 600 dpi image quality.

The optional Internet Fax/Network Scan module will transform the UF-7200 into centralized multifunction workstation. With user friendly features like the QWERTY keyboard for easy station programming, 10,000 page All-in-One toner cartridge, large easy to pull out paper draw and advanced network device management software.

Panasonic UF7200 Desktop Laser Fax Machine, 1.4 Seconds Features

  • High-speed scanning of 1.4 seconds per page
  • 100-sheet standard Automatic Document Feeder (ADF)
  • 33.6 Fax with JBIG
  • 550 sheet cassette expandable to 1,100 sheets
  • Network printing up to 19ppm
  • 12MB standard memory (SD type memory cards up to 2GB capacity)
  • USB 1.1 port standard
  • QWERTY keyboard
  • Optional Internet Fax / Email / Network Scanning
  • Optional 2nd G3 communication port (Dual line fax)
  • Document Management System software included
  • 580 Auto-dialers expandable to 1,000 with optional SD memory card
  • Maximum Digits for Telephone number: 36 digits
  • Program Keys (up to 80 programs)
  • Multi-Tasking Operation
  • Directory Search Dialing
  • Directory Sheet Print
  • Intelligent Redial
  • Chain Dialing
  • Quick Memory Transmission
  • Multi-Station Transmission (up to 630 stations)
  • Deferred Transmission
  • Deferred Multi-Station Transmission
  • Duplex Transmission
  • Misdial Prevention

What's in the box:

  • Manufacturer's Warranty of 90 Day Labor & 1 Year Parts
