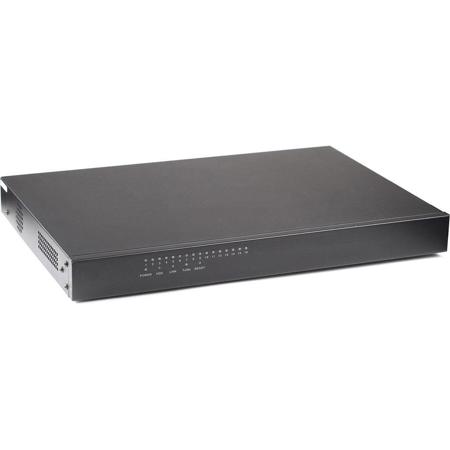

Panasonic Advidia 8-Channel IP Video Encoder
See all Panasonic items

Panasonic Advidia 8-Channel IP Video Encoder

SKU: PCVP8V2

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Panasonic IP Video Encoder Specifications

Video/Audio Input/Output

Video/Audio Input/Output

Jump to...

  • Video Input

    8-channel
    BNC interface

  • HDTVI Video

    720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30, CVBS

  • Audio Input

    4-channel

Video/Audio Encoding

Jump to...

  • Audio Input

    RCA (2.0 Vp-p, 1 KOhm)

  • Audio Output

    1 channel, RCA (Linear, 1 KOhm)

  • Video Compression

    H.264

  • Audio Compression

    G.711u

  • Frame Rate

    1/16 fps to real-time frame rate

  • Video Bitrate

    2 Kbps to 10 Mbps

  • Audio Bitrate

    4 Kbps

  • Stream Type

    Video, Video & Audio

  • Main Stream

    1080P/720P/WD1/4CIF/VGA/CIF

  • Dual-Stream

    Support, sub-stream: WD1/4CIF (12fps), CIF/QVGA/QCIF (real-time)

External Interface

Jump to...

  • Two-Way Audio Input

    1 channel, RCA (2.0 Vp-p, 1 KOhm)
    (using the 1st channel of audio input)

  • Network Interface

    1, RJ45 10M/100M/1000M self-adaptive Ethernet Interface

  • Series Interface

    1, RS-485; half-duplex

  • Alarm In/Out

    16-channel input, 4-channel output

  • Power Supply

    12 VDC

General

Jump to...

  • Power Consumption

    <=30 W

  • Working Temperature

    14 Degree F to 131 Degree F (-10 Degree C to 55 Degree C)

  • Working Humidity

    10% to 90%

  • Chassis

    380 mm 1U chassis

  • Dimensions

    14.96 x 11.42 x 1.89" (380 x 290 x 48mm)

  • Weight (without HDD)

    <=4.41 lb (2Kg)

About Panasonic IP Video Encoder

You don't have to purchase all new IP video cameras to experience IP technology. Using video encoders you can convert your existing analog cameras to IP video. Encoders convert your existing analog cameras to superior IP video, providing the most affordable, yet simple, solution to centralize and scale your video surveillance system. Migrating to IP video from analog using video encoders sets the foundation for a video management system where you can easily add existing and new cameras - analog or IP - to your network.

Panasonic IP Video Encoder Features

  • Connectable to HD-TVI and analog cameras
  • Connectable to the coax camera/dome with long transmission distance
  • Manual video quality diagnostics
  • VCA detection alarm (line crossing detection and intrusion detection)
  • 1 self-adaptive 10M/100M/1000M network interface
  • Network detection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Connectable to HD-TVI and analog cameras
  • Connectable to the coax camera/dome with long transmission distance
  • Manual video quality diagnostics
  • VCA detection alarm (line crossing detection and intrusion detection)
  • 1 self-adaptive 10M/100M/1000M network interface
  • Network detection

What's in the box:

  • Advidia 8-Channel IP Video Encoder
  • Video Insight VMS License
  • Panasonic 3 Year Limited Warranty
