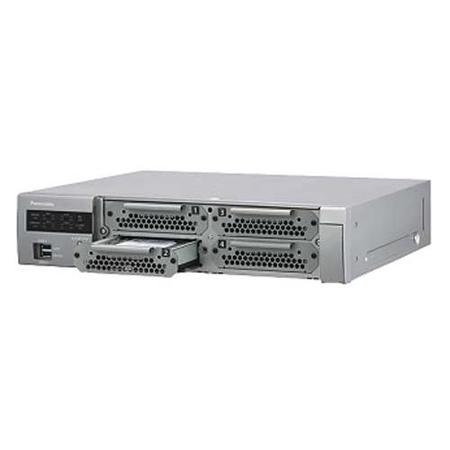

Panasonic i-Pro Extreme WJ-NX300 16-Channel NVR with 6TB HDD

Panasonic i-PRO series network cameras
ONVIF NVT conformant camera and encoder

H.265 (HEVC), H.264, JPEG

Aspect Ratio 4:3: 4000 x 3000, 2560 x 1920, 2048 x 1536, 1280 x 960, 800 x 600, 640 x 480
Aspect Ratio 16:9: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360
Aspect Ratio 1:1: 2992 x 2992, 2816 x 2816, 2048 x 2048, 1280 x 1280
Aspect Ratio 9:16: 1080 x 1920, 720 x 1280, 360 x 640

G.711 for ONVIF, G.726 (ADPCM) 32 kb/s, AAC-LC

32 max.
Default: 16 (two additional camera kits WJ-NXE30 are necessary, sold separately)

Event, schedule, emergency

Pre-Alarm: Up to 15 seconds at up to 4 Mb/s
Sub-Stream: 64, 128, 256, 384, 512, 768 kb/s

16x programs, 6x time zones/day, independent setup for each day of the week

Up to 60 fps (depending on the camera)

Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus, aux, wiper (for WV-SUD638)

Main monitor:
Control Screen: 4/9/16 split-screen display
Wide View Screen: 2/3/4/5/6/7/9/12/16/24/32 split-screen display, 1 screen sequence, 4/9/16 split-screen sequence
Sub Monitor: 1/4/9/16/24/32 split-screen display, 1 screen sequence, 4/9/16 split-screen sequence

Play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 seconds), time-saving playback

Search Criteria: Time/date, playback by designating a timeline, VMD, thumbnail

File Format: Original format, MP4 Recorded data of selected cameras and time/date range can be copied to USB storage

Up to 16 characters

Time: 12- or 24-hour
Date: 5 formats

Live/Play: 1.25x 1.5x 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1 screen or 4 screens)

Operator access (500), network error (100), error (1000), event (1000), operation (500)

Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese

1-channel display mode

2Client

Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264)

Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese

CPU: Intel Core i7-860 or faster, RAM: 4 GB or more, VRAM: 128 MB or more (64 MB min.), Microsoft DirectX 9.0c or later

9x terminal inputs
16x camera alarms (Panasonic alarm protocol)
128x command alarms

Off/on

Alarm recording, email notification, alarm message, camera positioning, terminal output, Panasonic alarm protocol output, buzzer, indicator

Reset

1000

1x BNC, video output
1 V p-p, 75 Ohms NTSC/PAL (selectable in setup menu)

1x HDMI, A/V video main output
Main monitor: HDMI 4K UHD (3840 x 2160p) at 30 Hz, 4K UHD (3840 x 2160p) at 25 Hz, 1920 x 1080p at 60 Hz, 1920 x 1080p at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz
1x HDMI, video SUB output
Sub Monitor: HDMI 1920 x 1080p at 60 Hz, 1920 x 1080p at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz

1x RCA, unbalanced output
-10 dBv, 600 Ohms

1x alarm input 1-9
1x alarm output
1x alarm reset input
1x time adjustment input
1x time adjustment output
1x 5 V output
1x emergency recording input
1 x network error output
1x HDD error/recording error output
1x camera error output
1x recorder error output

1x USB, front port
1x USB 2.0, rear port

1x RJ45, LAN PC port
1x RJ45, LAN camera/PC port
10BASE-T/100BASE-TX/1000BASE-T

1x USB 3.0, copy front port
1x USB 3.0, copy rear port

256 Mb/s max.

Total 512 Mb/s

IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP
IPv6: ICMPv6

Upon alarm or warning

Up to 16

Up to 32 users

3 levels (programmable)

User level - camera (view & control, no access)

User authentication (ID and password), host authentication, alteration detection, SSL/TLS

Terminal (master/slave), NTP (server/client)

User definable (using menu setup)

On Smartphone/Tablet: 16 clients max.

3.5" (8.89cm) SATA HDD, up to 4x HDDs supported

22 HDD slots (with 2x WJ-HXE400 extension units, 9x HDDs installed in an extension unit)
Up to 6TB will be supported

6TB HDD preinstalled

RAID 1, 5, 6

Play, rev play, pause, FF, FR, prev record, next record, prev image, next image

NX Viewer: Alteration detection, save as JPEG, two times zoom, print, copy, aspect ratio switching, fish eye correction, corridor display

Language: English or Japanese software

cUL (UL60065), FCC Part15 Class A

120 VAC, 50/60 Hz

72 W approx.

Main Body: 41 to 113 Degree F (5 to 45 Degree C)
Mouse: 41 to 104 Degree F (5 to 40 Degree C)

5 to 90% (without condensation)

6562' (2000m) above sea level

16.5 x 3.5 x 11.8" (42.0 x 8.8 x 30.0cm)
(From rackmount bracket 13.8" (35cm)) excluding rubber feet and projections

15.4 lb (7.0kg) approx. without HDDs
