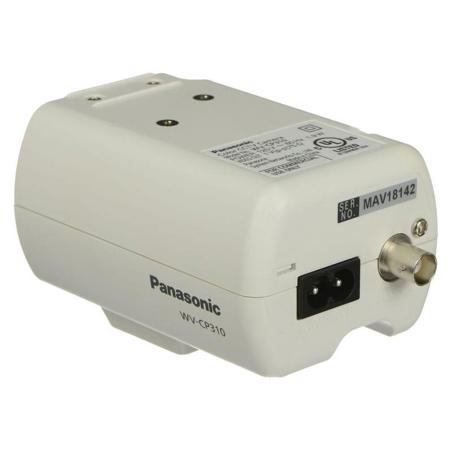

Panasonic WV-CP310 650 TVL IR Day/Night Analog Fixed Box Camera,120 V AC
See all Panasonic items

Panasonic WV-CP310 650 TVL Compact IR Day/Night Analog Fixed Box Camera, 120 V AC

SKU: PCWVCP310

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic WV-CP310 Specifications

  • Image Sensor

    1/3 type interline transfer CCD

  • Effective Pixels

    976 (H) x 494 (V)

  • Scanning Mode

    2:1 interlace

  • Scanning Area

    Horizontal x Vertical: 4.8 x 3.6mm / 0.19 x 0.14"

  • Scanning Frequency

    Horizontal x Vertical: 15.73kHz to 59.94Hz

  • Horizontal Resolution

    650 TV lines

  • Minimum Illumination

    Color: 0.08 lx (F1.4, Sens Up: Off, AGC: High)
    B/W: 0.008 lx (F1.4, Sens Up: Off, AGC: High)

  • Signal-to-Noise Ratio

    52dB (AGC: OFF)

  • White Balance

    AWC (2000 to 10000K), ATW1 (2700 to 8000K), ATW2 (2400 to 8000K)

  • Light Control

    ALC/ALC+/ELC

  • Automatic gain control

    ON (LOW, MID, HIGH) / OFF

  • Electronic Shutter

    OFF 1/60, AUTO, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/120000

  • Electronic Sensitivity UP

    32x max. AUTO, 512x max. FIX

  • Day & Night (IR)

    Day & Night (IR) Off / Auto1 /Auto2 / On

  • Digital Noise Reduction

    High or Low

  • Scene File

    2 patterns

  • Video Motion Detection

    OFF / MOTION DET / SCENE CHANGE

  • Privacy Zone

    ON (1) / ON (2) / OFF, up to 8 zones

  • Auto Image Stabilizer

    ON / OFF

  • Camera Title

    16 alphanumeric characters

  • Synchronization

    Internal (INT) / Multiplexed Vertical Drive (VD2)

  • Video Output

    1.0V [p to p] / NTSC composite 75

  • Input/Output: Controller Interface

    Coaxial Multiplex System

  • Setup Method

    OSD setup menu

  • Language

    English, Russian, German, French, Italian, Spanish, Chinese, Japanese

  • Safety/EMC Standard

    UL (UL60065), FCC (Part 15 ClassA), C-UL (E60065), DOC (ICES-003)

  • Power Source and Consumption

    120V AC, 60Hz, 1.9W

  • Ambient Operating Humidity

    90 % or less (without condensation)

  • Ambient Operating Temperature

    -10 to 50 deg. C / 14to 122 deg. F

  • Dimensions (W x H x D)

    72 x 55 x 101mm / 2.83 x 2.17 x 3.98"

  • Weight

    Approx. 190g / 6.70oz

About Panasonic WV-CP310

• High resolution: 650 TV lines
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode
• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
• Focus Assist ensures easy installation
• Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 16 axis matrix color compensation function enables wider range of natural color adjustment
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions
• Electronic sensitivity enhancement: Auto (Up to 32x) / Fix (Up to 512x)
• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/120,000 sec.
• Digital zoom: Up to 2x
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal / Multiplexed Vertical Drive (VD2) synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian,Chinese, Japanese
• Lens Distortion Correction
• On screen display menu
• ELC mode for easier lens adjustment upon installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic WV-CP310 650 TVL Compact IR Day/Night Analog Fixed Box Camera
  • Installation Guide
  • CD-ROM
  • Power Cord
  • Panasonic 3 Year Limited Warranty
