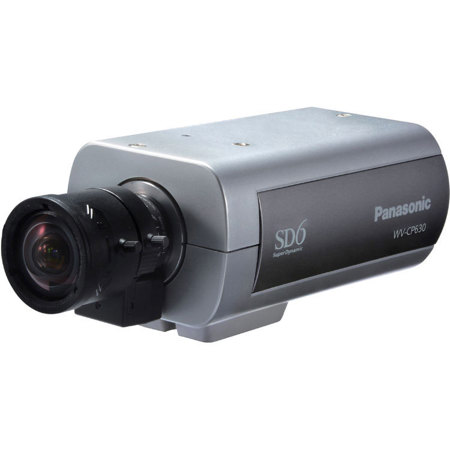

Panasonic WV-CP630 700 TVL Day/Night Analog Fixed Box Camera, 120 V AC
See all Panasonic items

Panasonic WV-CP630 700 TVL Day/Night Analog Fixed Box Camera with Super Dynamic 6 Technology, 120 V AC

SKU: PCWVCP630

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic WV-CP630 Specifications

  • Image Sensor

    1/3 type interline transfer CCD

  • Effective Pixels

    976 (H) x 494 (V)

  • Scanning Mode

    2:1 interlace scan

  • Scanning Area

    Horizontal x Vertical: 4.8 x 3.6mm / 0.19 x 0.14"

  • Scanning Frequency

    Horizontal x Vertical: 15.734 kHz to 59.94 Hz

  • Scanning Line

    525 lines

  • Horizontal Resolution

    700 TV lines

  • Minimum Illumination

    Color: 0.08 lx (SENS UP: OFF), 0.003 lx (SENS UP: 32x) at F1.4
    B/W: 0.008 lx (SENS UP: OFF), 0.0003 lx (SENS UP: 32x) at F1.4

  • Signal-to-Noise Ratio

    52dB (AGC OFF, Weight ON)

  • White Balance

    AWC (2000 to 10000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K)

  • Light Control

    ALC / ALC+ / ELC

  • Automatic gain control

    ON (HIGH / MID / LOW) / OFF

  • Super Dynamic

    ON / OFF

  • Dynamic Range

    52dB typical (Super Dynamic ON)

  • Electronic Shutter

    OFF 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/12000s

  • Electronic Sensitivity UP

    OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x)
    FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x)

  • Digital Noise Reduction

    LOW / HIGH

  • Day & Night (IR)

    AUTO1 / AUTO2 / ON / OFF

  • Electronic zoom

    ON (up to 2x) / OFF

  • Scene File

    2 patterns

  • Video Motion Detection

    OFF / MOTION DETECTION / SCENE CHANGE

  • Privacy Zone

    ON (1) / ON (2) / OFF

  • Auto Image Stabilizer

    ON / OFF

  • Camera Title

    English letter, numbers and symbols: up to 16 characters.

  • Lens Mount

    CS-mount

  • ALC lens drive

    DC drive

  • Auto back focus

    ABF / MANUAL / switching between color and BW interlocking

  • Synchronization

    Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)

  • Upside-down

    ON / OFF

  • Lens distortion correction

    0 to 255

  • Video Output

    1.0V [P to P] NTSC composite
    75Ohms / BNC Connector Multiplexed VD2 and control data capable

  • External I/O Terminals

    ALARM IN: 1 (OFF / ALARM / VMD PERMIT / BW) ALARM OUT: 1 (OFF / ALARM / BW)

  • Setup Method

    OSD setup menu

  • Language

    English, Russian (For setup menu and camera title), German, French, Italian, Spanish, Portuguese (For setup menu), Japanese (Only for camera title. Setup menu is in English.)

  • Safety/EMC Standard

    UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA)

  • Power Source and Consumption

    120V AC 60Hz, 2.3W

  • Ambient Operating Humidity

    Less than 90 %

  • Ambient Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Dimensions (W x H x D)

    75 x 65 x 132.5mm / 2.95 x 2.56 x 5.22"

  • Weight

    Approx. 430g / 15.17oz (without power cord)

  • UPC Code

    885170213630

About Panasonic WV-CP630

• Super Dynamic 6 delivers Superior image by fusion of Super Dynamic and ABS (Adaptive Black Stretch)
• High resolution: 700 TV lines typical
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode.
• ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes
• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions
• Electronic sensitivity enhancement: Auto (Up to 32x) / Fix (Up to 512x)
• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/12,000 sec.
• Digital zoom: Up to 2x
• Alarm input and alarm output terminals
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian, Portuguese, Japanese

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic WV-CP630 700 TVL Day/Night Analog Fixed Box Camera with Super Dynamic 6 Technology
  • CD-ROM (Including Operating Instructions)
  • Installation Guide
  • Power Cord
  • Panasonic 3 Year Limited Warranty
