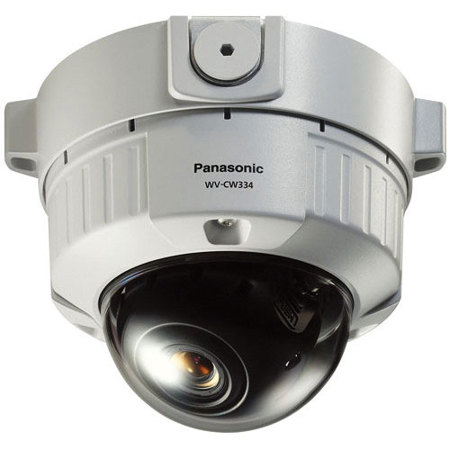

Panasonic WV-CW334S 540 TVL Outdoor Simple Day/Night Vandal Resistant Fixed Dome Analog Camera, 3.6x Varifocal Auto Iris Lens
SKU: PCWVCW334S
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Panasonic WV-CW334S
The WV-CW334S is a vandal-resistant camera that is IP66 rated for water and dust resistance and IEC 60068 50J rated for high impact resistance. Engineered with a 1/3 inch CCD sensor (768 x 494 pixels), it offers high sensitivity in variable lighting conditions. The WV-CW334S has day/night functionality with a minimum lux level of 0.6 in color and 0.4 in b/w. Additionally, the camera's Adaptive Black Stretch (ABS) technology enhances visibility of dark areas without degrading the image quality in bright areas.
Installation adjustment features include Back Light Compensation (BLC), Auto Tracing White Balance (ATW) and Automatic Light Control (ALC). Two white balance modes, Auto Tracking White Balance and Automatic White Balance Control, are selectable with a dip switch. The 6x (2.8 - 10mm) varifocal auto iris lens can be easily adjusted using the monitor output. Mounting options include flush mount, surface mount and embedded ceiling mount and a three-way hinge (horizontal, vertical and swivel rotation) for easy installation.
Panasonic WV-CW334S Features
- High resolution: 540 TV lines
- High sensitivity with Simple Day/Night function: 0.6 lx (Color), 0.4 lx (B/W)
- ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
- Vandal resistant mechanism for high reliability
- IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard
- Various adjustment features including BLC (Back Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- 2 White Balance modes are selectable with Dip Switch: ATW (Auto Tracking White Balance) / AWC (Automatic White Balance Control)
- 2.8 to 10 mm 3.6x Varifocal Auto Iris lens
- Internal/Multiplexed Vertical Drive (VD2) synchronization
- Monitor output for easier lens adjustment upon installation
- 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
- Various mounting options: Flush mount, Surface mount and Embedded ceiling mount
- Optional heater maintains operating temperature -30 deg.C to +50 deg.C (-22 deg.F to 122 deg.F)
