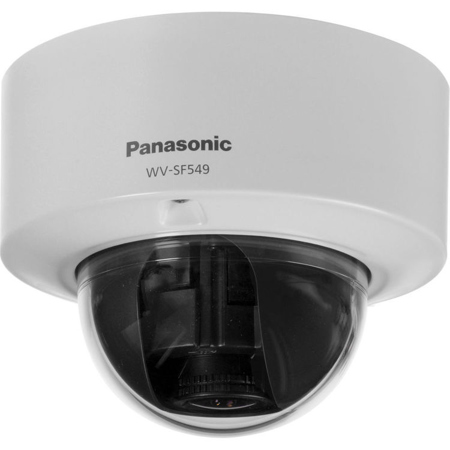

About Panasonic WV-SF549
The Panasonic WV-SF549 Indoor Super Dynamic Full HD Vandal Resistant Dome Network Camera with IR LED and advanced features like the Full duplex bi-directional audio and SDXC/SDHC/SD memory card slot offers high-quality 24-hour video surveillance in both day and night time lighting conditions. High sensitivity for day/night surveillance with IR function, this network camera captures clear images at F/1.3 even in locations with a minimum illumination of 0.06 lux (B&W).
The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face super dynamic range technology offers blur-free images of the human face. Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in Full HD resolution of 1920 x 1080 at 30 fps.
The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter. In addition, the Auto Back Focus adjusts the position of the MOS sensor to offer stable focus in both color and B&W modes. The 2 area VIQS technology is particularly useful in installations where specific areas in a scene are of high interest while the rest of the scene does not need to be captured at the same level of detail.
Panasonic WV-SF549 Features
- 1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously
- Combining enhanced "UniPhier", Panasonic's proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum 50% network bandwidth
- Cropping function enables to provide whole image (1920 x 1080) and the part image (640 x 360) simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
- Picture in picture function: A cropping image or an alarm image can be added to an image and transmitted
- Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced "UniPhier".
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras
- High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.3
- SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
- Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output
- Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored though using wide angle lens
- Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions
- Superior color reproduction by primary (RGB) color filter
- Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
- Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / Fixed electronic shutter Outdoor scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level
- Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.
- 3x Extra optical zoom at 360p resolution. (Picture Mode: 2 Mega pixel [16:9] )
- VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
- 2x, 4x digital zoom controlled by browser
- Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output
- Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
- Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Still images (JPEG) can be viewed on mobile phones via the Internet
- Onvif compliant model
