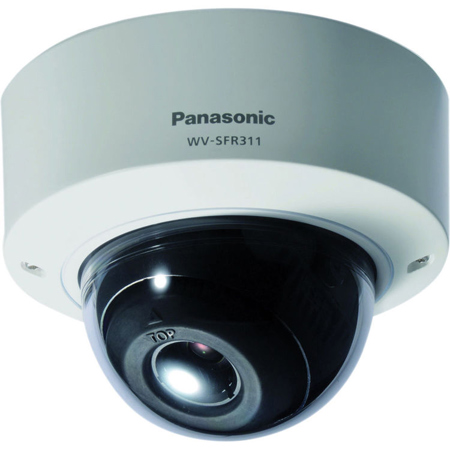

Panasonic WV-SFR311 1.3MP 720p Indoor IR Day & Night Vandal Resistant Dome Network Camera with 2.8-10mm Varifocal Lens, 60fps, H.264, JPEG, PoE
SKU: PCWVSFR311
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Panasonic WV-SFR311
This indoor, vandal resistant 3 Series i-PRO camera features a next generation UniPhier LSI processor, capable of producing high definition resolution at 60 frames per second, enabling the capture of exceptionally clear images of moving objects. The new platform offers Enhanced Super Dynamic and Adaptive Black Stretch (ABS) technologies, enabling an amazing wide dynamic light range (up to 133db) and delivering outstanding performance even in the most challenging lighting conditions. The SFR311 has the ability to encode up to four independent H.264 streams simultaneously and demonstrates a super-high sensitivity in low light conditions, generating usable color video at less than .01 lux illumination.
The camera also features 3D Noise Reduction (3DNR) and Multi-process Noise Reduction (MNR), ensuring both bright and dark areas are reproduced to deliver best-in-class performance, minimum video noise and accurate color reproduction. A built-in SDXC memory card slot offers high-capacity H.264/JPEG edge-recording with flexible recording modes, including alarm-recording and backup-recording in the event of a network failure.
Panasonic WV-SFR311 Features
- Super high resolution at HD/1280 x 720 created by high sensitivity MOS Sensor
- Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording by new enhanced "UniPhier", Panasonic's proprietary System LSI platform.
- Enhanced Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras
- Multi process NR & 3D-DNR ensures noise reduction in various conditions
- High sensitivity with Day & Night (IR)function: 0.01 lx (Color), 0.003 lx (B/W) at F1.6
- New camera attachment bracket allows an easy camera installation toward all four directions
- VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate
- Cropping function enables to provide whole image and the part image simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
- Face Super Dynamic technology ensures clear face image
- Lens distortion compensation for the distorted images can be adjusted 256 steps
- Electronic sensitivity enhancement: Auto (Up to 16/30s) / OFF
- Selectable light control modes: Outdoor scene, Indoor scene (50 Hz) / Indoor scene (60 Hz), Fix shutter Indoor scene (50 Hz/60Hz): Flicker caused by fluorescent lightning will be automatically compensated
- 2x extra optical zoom at 640 x 360 resolution
- 2x, 4x digital zoom controlled by browser
- VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
- Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits
- Camera title display: Up to 20 alphanumeric characters on the browser
- Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output
- Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- Full duplex bi-directional audio allows interactive communication between camera site and monitoring site
- H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
- Internet mode: H.264 images can be transmitted over HTTP protocol.
- Multi-language: English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Onvif compliant model
