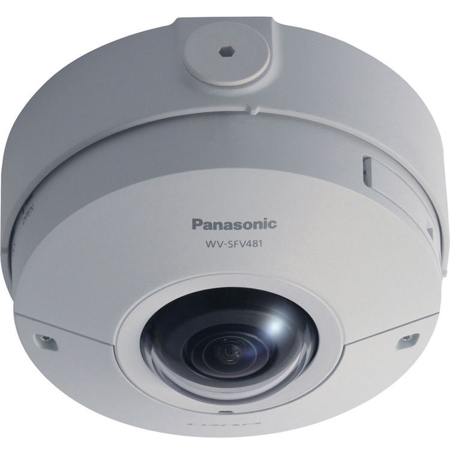

Panasonic WV-SFV481 4K 12.4MP 360deg. Outdoor Day & Night Vandal Resistant Dome Network Camera with 1.38mm Lens, 15fps, 30fps, H.264, JPEG, PoE

The WV-SFV481 outdoor weatherproof i-PRO ULTRA 360 camera offers ultra high resolution, ultra sensitivity, ultra intelligence and ultra toughness. Built on Panasonic's new, ground-breaking 12 megapixel 4K ULTRA HD engine, the WV-SFV481 produces a 9MP (3K x 3K) Fisheye image at 15fps and a 4MP Fisheye image at 30fps to capture crisper edge-to-edge images that deliver virtually the same resolution and coverage area as four conventional 720p security cameras thereby increasing system efficiency The ULTRA 360deg. cameras' new analytic functions optimize business processes by bringing a deeper understanding of a customer's behavior. The new analytics are ideal for generating insight into floor behavior in retail environments and to evaluate people movement in public spaces.

The ULTRA 360 camera is designed to be highly flexible supporting various display modes such as Fish-eye, Single Panorama, Double Panorama, Single PTZ, Quad PTZ and Quad Stream modes. The cameras support simultaneous streaming of both Fish-eye and dewarped images so that the system can allow the full image to be recorded while concurrent users can utilize additional streams with different display configurations. The cameras support multi-user virtual pan, tilt and zoom in Quad PTZ mode. This means that multiple users can pan, tilt and zoom different views of the full image at the same time on live streams or while playing back recorded video further increasing flexibility.

• 360deg. monitoring with a wide variety of transmission modes: Panorama, Double Panorama, Quad PTZ, Single PTZ and Quad streams (H.264)
• 9 Megapixel images up to 15 fps
• VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate. Only for fisheye image.
• Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by new 4K ULTRA HD engine.
• Smooth PTZ operation without mechanical action
• Built-in distortion correction function
• A fisheye lens control function realizes intelligible screen operation intuitively
• Smartphone monitoring: Direct camera control from smartphone
• Wide dynamic range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range.
• High sensitivity with Day/Night (ICR) function: 0.3 lx (Color), 0.04 lx (B/W) at F1.9 ICR: IR Cut filter Removal
• Built-in ABF enables automatic focus adjustment for sharp image both in color and B/W modes and corrects the focus shift that caused by temperature difference. You can install the camera even in the environment having drastic changes in temperature without focal blur.
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.
• Superior color reproduction by primary (RGB) color filter.
• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
• Selectable light control modes: Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC (maximum exposure time) Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated.
• ELC (maximum exposure time): The lightning control will be automatically performed by adjusting shutter speed in the range of ELC.
• VMD (Video Motion Detector) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits. Configurable only on the fisheye image.
• Camera title display: Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/ SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, HTTP notification and Panasonic protocol output.
• Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.
• Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
• Can be added new intelligent extension software (Extension software) in addition to built- in VMD (Video Motion Detection), alarm function.
• Intelligent function (Extension software) such as Intruder / Loitering / Scene change / Object / Cross line detection, People Count (Cross line), MOR(Moving Object Remover) Function, Heat map (High Traffic Zone / Long-stay Zone)
• Super Chroma Compensation function realizes a better color
• H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
• Internet mode: H.264 images can be transmitted over HTTP protocol.
• Multi-language: English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via Internet.
• IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard,Type 4x(UL50), NEMA 4x compliant.
• Dehumidification device for use in various weather conditions
• Vandal resistant mechanism for high reliability
• "Railway applications - Electronics equipment used on rolling stock" compatible with EN50155
• Low profile design for discrete installation
• Onvif compliant model

Ultra High Resolution
The cameras produce a 9MP 3K x 3K Fisheye image at 15fps and a 4MP Fisheye image at 30fps in H.264 for incredibly high resolution at standard frame rates, ensuring bright images under any lighting condition. In addition, the Ultra 4K HD engine allows multiple levels of zooming without resolution loss.

Ultra High Sensitivity
The cameras' new 1/2" 12MP image sensor and F1.9 large diameter lens provides sharp and natural color reproduction with strong low light performance, less than 0.3 lux in color and black-and-white.

Ultra Toughness
The cameras feature an anti-shock vandal resistant chassis that meets IP66 standards for dust and water resistance and compliant with IK10/50J and are EN 50155 compliant for on-vehicle applications (SFV481 only). The ULTRA 360 cameras are ready for installation in vehicles such as buses and trains.
