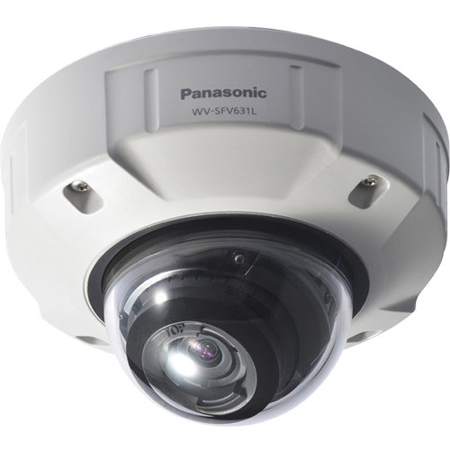

Panasonic WV-SFV631L Specifications

About Panasonic WV-SFV631L

This 6 Series i-PRO camera features a next generation UniPhier LSI processor and 60 frames per second performance in in1080p. The new platform offers Enhanced Super Dynamic technology enabling an unrivaled133dB video dynamic range, delivering outstanding performance even in the most dynamic and challenging lighting conditions. The camera has the ability to encode up to four H.264 streams simultaneously and features a super-high sensitivity in low light conditions generating usable color video at less than .01 lux illumination.

Panasonic WV-SFV631L Features

  • Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording by new enhanced "UniPhier", Panasonic's proprietary System LSI platform.
  • Enhanced Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras
  • Multi process NR & 3D-DNR ensures noise reduction in various conditions
  • High sensitivity with Day & Night (IR) function: 0.01 lx (Color), 0.003 lx (B/W) at F1.3
  • IR LED equipped: The equipped infrared LED makes it possible to take pictures at zero lx.. IR LED is controlled to match the environment, thereby the camera provides clear images of human faces without white blur.
  • High Speed ABF (Auto Back Focus) and Motorized Zoom ensures easy installation
  • VIQS Variable Image Quality on Specified area technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate
  • Cropping function enables to provide whole image and the part image simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
  • Electronic sensitivity enhancement: Auto (Up to 16/30s) / OFF
  • Selectable light control modes: Outdoor scene, Indoor scene (50 Hz) / Indoor scene (60 Hz),Fix shutter Indoor scene (50 Hz/60Hz): Flicker caused by fluorescent lightning will be automatically compensated
  • Super high resolution at Full HD/1920 x 1080 created by high sensitivity MOS Sensor
  • High sensitivity with Day & Night (IR) function: 0.04 lx (Color), 0.01 lx (B/W) at F1.3
  • Maximum Screen Size is 2048 x 1536 at 30fps, H.264
  • 3x extra optical zoom at 640 x 360 resolution. 2x, 4x digital zoom controlled by browser
  • VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
  • Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits
  • Camera title display: Up to 20 alphanumeric characters on the browser
  • Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output
  • Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.
  • Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
  • Double SDXC/SDHC/SD Memory card slots for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (H.264 / JPEG). Realize long-term recording and auto backup function.
  • H.264 max. bit rate/client and Total bit rate control allows Flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
  • Multi-language: English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese
  • Supports SSL, DDNS (viewnetcam, RFC2136)
  • Onvif compliant model

Key Features

  • High sensitivity
  • High sensitivity
  • Camera title display

What's in the box:

  • Panasonic WV-SFV631L 2.4MP 1080p Full HD Day & Night Indoor/Outdoor VR Super Dynamic Dome Network Camera with 2.8-10mm Varifocal Lens
  • Monitor Out Conversion Plug
  • Base Bracket
  • Attachment Plate
  • 4P Alarm Cable
  • 2P Alarm Cable
  • Waterproof Tape
  • Software CD
  • Template A for the Attachment Plate
  • Template B for the Base Bracket
  • Bit
  • 5x Fixing Screws for Attachment Plate (M4 x 8mm)
  • LAN Cable Cover
  • Code Label
  • Panasonic 3 Year Parts & Labor Limited Warranty
