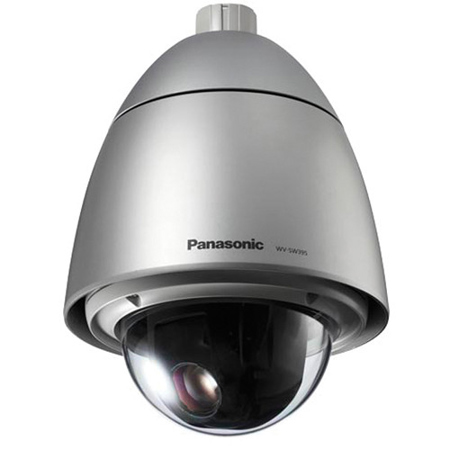

Panasonic WV-SW395A 1.3MP HD Outdoor Day & Night Super Dynamic Weather Proof PTZ Dome Network Camera with 18x Optical Zoom, 30fps, H.264, JPEG, PoE
SKU: PCWVSW395A
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Panasonic WV-SW395A
The i-PRO SmartHD WV-SW395A model is a Super Dynamic, Weather Resistant HD network dome camera that provides feature-rich pan-tilt-zoom control, auto-tracking of 720p high-definition (HD) images and full-frame 1280x960-pixel images at up to 30 images per second. It provides multiple H.264 (High profile) and JPEG video streams for simultaneous real-time monitoring and high-resolution recording. Pan-tilt-zoom (PTZ) control features include a 360-degree map shot that provides the full 360-degree field of view, separated into eight thumbnail images taken at 45-degree intervals. Clicking on any thumbnail easily directs the PTZ camera. The WV-SW395A dome camera uses Panasonic's UniPhier LSI chip (H.264 high-profile format) to combine HD video and real-time video streaming at a lower data size. A new 1.3-megapixel MOS image sensor enables high sensitivity and lower power consumption. To increase user system options, the camera is Open Network Video Interface (ONVIF)-compliant.
The camera features ClearSight Rain-resistant Dome Coating, which significantly increases the operational utility of outdoor cameras in wet weather. This innovative hydrophilic coating allows rain drops to flatten onto the surface of the camera dome, significantly reducing optical distortion and providing better visibility in rainy conditions. In addition, the coated surface resists the development of water stains and dust accumulation reducing dome maintenance.
Panasonic WV-SW395A Features
- 720p HD images up to 30 fps. Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
- Newly developed 1.3 Megapixel double speed MOS Sensor
- Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by "UniPhier", Panasonic's proprietary System LSI platform. H.264 and MPEG-4 are selectable for system migration.
- 18x optical zoom with 12x digital zoom enabling 216x zoom. 36x extra optical zoom under VGA resolution with 12x digital zoom enabling 432x zoom.
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared with conventional cameras
- Face Super Dynamic technology ensures clear face image
- Adaptive Digital Noise Reduction: 2D-DNR and 3D-DNR integration ensures reduced noise and motion blur in various conditions
- Superior color reproduction by primary (RGB) color filter
- Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
- Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter Outdoor / Indoor: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.
- Panning with auto flip function can be performed 0 to 360 degrees
- Auto tracking: The camera automatically pans and tilts to follow a moving subject and keep it in the center of the image
- PTZ control can be taken on the user friendly GUI with 16 speeds pan/tilt and new "Drag and Zoom" operation enabling finer control. 256 speeds available for system with WV-CU950 system controller.
- Industrial grade Pan/Tilt/Zoom mechanism for high reliability
- VMD (Video Motion Detector) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
- Face detection function detects the position of human face and the information is sent by XML or video stream
- Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function
- Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits
- JPEG image compression ratio can be changed by alarm so that higher quality image can be provided
- Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- H.264/MPEG-4 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.
- Dehumidification device for use in various weather conditions. Built-in fan/heater/sun shield for temperature changes
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Built-in fan/heater/sun shield for temperature changes
- ONVIF compliant model
