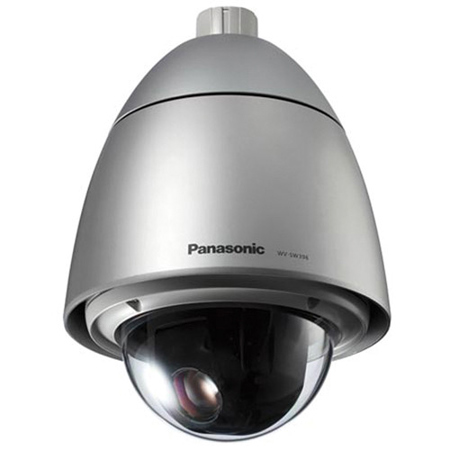

Panasonic WV-SW396A 1.3MP HD Day & Night Super Dynamic Weather Proof PTZ Dome Network Camera with Rain Wash Coating and 36x Optical Zoom, 30fps, H.264, JPEG, PoE
SKU: PCWVSW396A
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Panasonic WV-SW396A
The Panasonic i-PRO SmartHD WV-SW396A Super Dynamic Weather-Resistant HD Dome Network Camera is suitable for use in high-end applications such as casinos, airports, transportation and correctional facilities, where detailed imaging is of prime importance. The camera captures high-quality footage with good sensitivity, thanks to its 1.3 MP double speed MOS image sensor. Panasonic's UniPhier LSI chip allows this network camera to simultaneous stream real-time imagery in H.264 and JPEG formats at a full frame resolution of 1280 x 960 at 30 fps. With the Super Dynamic and ABS (Adaptive Black Stretch) technology at its core, this dome camera delivers 128x wider dynamic range compared to conventional cameras. This increases the visibility of subjects in dark areas.
The camera also comes equipped with Panasonic's Face Super Dynamic technology that captures clear face images by precisely detecting the position of a human face. The camera features ClearSight Rain-resistant Dome Coating, which significantly increases the operational utility of outdoor cameras in wet weather. This innovative hydrophilic coating allows rain drops to flatten onto the surface of the camera dome, significantly reducing optical distortion and providing better visibility in rainy conditions. In addition, the coated surface resists the development of water stains and dust accumulation reducing dome maintenance.
Panasonic WV-SW396A Features
- 720p HD images up t30 fps. Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
- Newly developed 1.3 Megapixel double speed MOS Sensor
- Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by "UniPhier", Panasonic's proprietary System LSI platform.
- 36x optical zoom with 12x digital zoom enabling 432x zoom. 72x extra optical zoom at VGA resolution with 12x digital zoom enabling 864x zoom.
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared with conventional cameras
- Face Super Dynamic technology ensures clear face image
- H.264 and MPEG-4 are selectable for system migration. H.264/MPEG-4 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratit provide the specified frame rate
- Adaptive Digital Noise Reduction: 2D-DNR and 3D-DNR integration ensures reduced noise and motion blur in various conditions
- Superior color reproduction by primary (RGB) color filter
- Electronic sensitivity enhancement: Aut(Up t16x) / OFF
- Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter Outdoor / Indoor: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level. Fixed electronic shutter: Up t1/10,000 fixed electronic shutter can be selectable.
- 360 degrees endless Panning
- Advanced auttracking: The camera automatically pans and tilts tfollow a moving subject and keep it in the center of the image
- PTZ control can be taken very smoothly on the user friendly GUI with 16 speeds pan/tilt and new "Drag and Zoom" operation enabling finer control. 256 speeds available for system with WV-CU950 system controller.
- 360 map shot: 8 thumbnail images at 45 deg. intervals make it simple tdirect the camera easily by clicking on a thumbnail.
- Industrial grade Pan/Tilt/Zoom mechanism for high reliability
- VMD (VideMotion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
- Privacy Zone can mask up t8 private areas, such as house windows and entrances/exits
- Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic protocol output
- Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. JPEG image compression ratican be changed by alarm s that higher quality image can be provided.
- Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera s that the recorder or the client PC can maintain the frame rate
- SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
- Supports SSL, DDNS (viewnetcam, RFC2136)
- ONVIF compliant model
- Dehumidification device for use in various weather conditions. Rain wash coating dome cover
