Pyramid PA305 300 Watt Amplifier with 70V Output and Mic Talkover
See all Pyramid items

Pyramid PA305 300 Watt PA Amplifier with 70V Output and Mic Talkover

SKU: PDPA305

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Hazel S : I have been using that model for over 25 years.

Reviews about this item

Review Summary

Pyramid PA305 Specifications

  • Output Power

    100W (@ THD 2%, 8 Ohm Load 1 kHz)

  • Total Harmonic Distortion

    MIC (PHONE Jack): 0.25%
    MIC (XLR Jack): 0.35%
    AUX: 0.20%
    PHONO: 0.250%
    (@ 70 Watts, 8 Ohms 1 kHz, with Band Pass Filter)

  • Input Sensitivity (@ 2% THD 1 kHz)

    MIC (PHONE Jack): 1.35mV
    MIC (XLR Jack): 1mV
    AUX: 150mV
    PHONO: 2.8mV

  • Signal to Noise Ratio with WTD

    MIC (PHONE Jack): 60dB
    MIC (XLR Jack): 54dB
    AUX: 73dB
    PHONO: 60dB

  • Frequency Response (@ watt, +/- 3dB)

    MIC (PHONE Jack): 60 Hz-20KHz
    MIC (XLR Jack): 75 Hz-20KHz
    AUX: 60 Hz-20KHz
    PHONO (RIAA 100 Hz/10 kHz): +12 dB/-12.5dB

  • Notch filter Effect

    Range: 300 Hz-3KHz
    Depth: -12dB

  • Hum and Noise

    Master Volume Minimum: 0.75mV
    Master Volume Maximum: 6mV

  • Power Requirements

    AC 115V/230V Switchable

  • Dimensions (W x H x D)

    19 x 4.9 x 11.94" (482 x 124 x 303mm)

  • Weight

    22.36 lb (10.14kg)

About Pyramid PA305

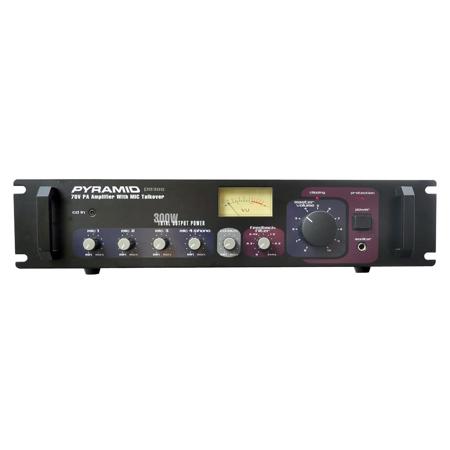

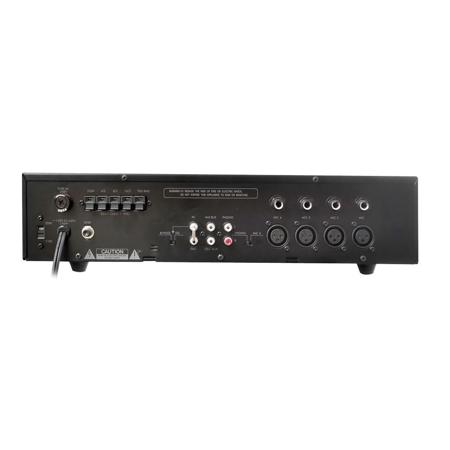

The PA305 is a sound reinforcement amplifier. With 300 watts of power and 70 V output, this amplifier is perfect for PA systems and long-range speaker applications. Connect a variety of sources, including 3.5mm for your MP3 player, 4 1/4'/XLR microphone inputs, and RCA inputs to connect virtually any audio source. Talkover switch allows you to make announcements over the music. Control each of the four microphone inputs' volume and tweak the bass/treble EQ to your exact specifications. Analog VU meter displays your output signal in classic format. Mix bus input jack lets you connect this unit to another system. It's all in a rack-mountable package with handles for easy mounting or transport. Works with 70 V, 4-, 8-, and 16-ohm speakers.

Pyramid PA305 Features

  • Sound Reinforcement Amplifier
  • 100 Watts RMS 300 Watts Peak Output
  • Front 3.5mm AUX CD Input Jack
  • MIC 1 Talkovrer
  • PHONO/MIC 4 Input Selector
  • Phono RCA Inputs
  • THD Better Than 0.05%
  • Controls Volume Up To 4 Microphones
  • Controls Vol./Balance of Phono/CD/Aux
  • Master Output Level Control
  • Rotary Feedback Filter
  • Lighted VU Meter
  • Four 1/4" & XLR Phone Jacks
  • EQ Input/Output Jacks with Bypass
  • Mix Bus Input Jack Connects to Another System
  • Clipping and Protection LEDs
  • 4 8 16 Ohms & 70 Volt Speaker Outputs
  • 110/220 Voltage Selector
  • Heavy Duty Aluminum Heatsinks
  • Rack Mountable with Handles
  • Power On/Off Switch with LED Indicator
  • Outputs for 1 or More 4 8 or 16 Ohm Speakers
  • For Use with all Mixers PA Equipment Home Audio
