Pyramid PB3818 5000 Watt 2-Channel Bridgeable Mosfet Amplifier
See all Pyramid items

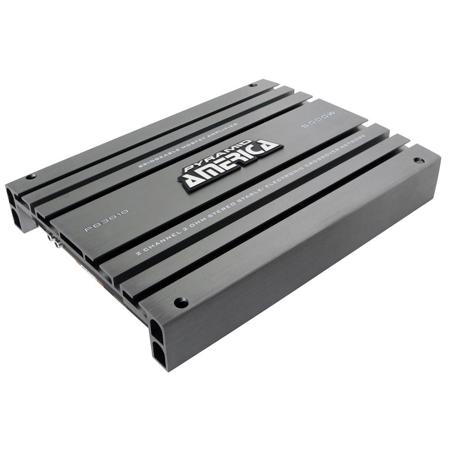

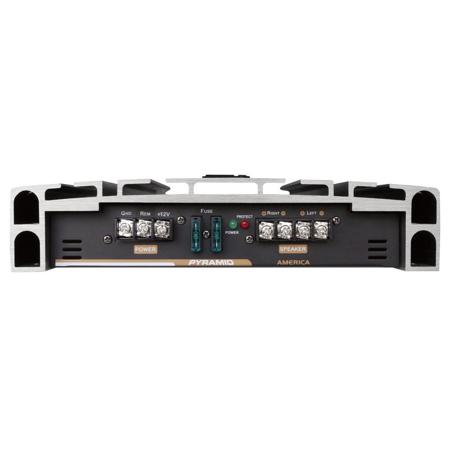

Pyramid PB3818 5000 Watt 2-Channel Bridgeable Mosfet Amplifier

SKU: PDPB3818
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does it mean that the Pyramid PB3818 Amplifier is bridgeable?

Being bridgeable means that the amplifier can combine the power of two channels into one. This provides flexibility in your audio setup, allowing you to power a range of speakers or subwoofers as per your needs.

What is the role of the Mosfet power supply in this amplifier?

The Mosfet, or Metal-Oxide-Semiconductor Field-Effect Transistor, power supply in the Pyramid PB3818 Amplifier is used for amplifying or switching electronic signals. It ensures efficient and reliable performance, delivering clean, distortion-free sound.

Can this amplifier handle high-demand audio requirements?

Yes, the Pyramid PB3818 is a 5000-watt amplifier, a power level that ensures it can handle even the most demanding audio requirements.

Is the Pyramid PB3818 Amplifier suitable for high-fidelity audio systems?

Absolutely. The Pyramid PB3818 Amplifier delivers superior sound quality and clean, distortion-free sound, making it an excellent choice for high-fidelity audio systems.

Shopper : Why Did You Choose This?Samuel G : A techincian suggested it to meJohn W : I Needed OneDennis p : coolMarcos M : Good price for amp, let’s see if it’s worth itTeresa C : Great amp!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyramid PB3818 Specifications

  • Output Power (@ 14.4 VDC 1 KHz)

    RMS Power: 100W x 2 (@ 4 Ohms), 200W x 2 (@ 2 Ohms)
    Max Power Output: 5000W (@ 1 Ohms)

  • Bridged Mode (@ 4 Ohms)

    500W x 2 or 5000W x 2 and 500W x 1

  • Frequency Response

    10-30000 Hz ( +/-3 dB)

  • Input Impedance

    10K Ohms (Low Level)
    100 Ohms (High Level)

  • Input Sensitivity

    250mV (Low Level)
    2.5V (High Level)

  • Power Supply Voltage

    DC 14.4V Negative Ground (10.5-16V)

  • Matching Speaker Impedance

    Stereo Mode: 2-4 Ohms
    Bridged Mode: 4-8 Ohms

  • Maximum Current Draw

    30A x 2

  • Dimensions (W x H x L)

    10.24 x 2.26 x 13.78" (260 x 57 x 350mm)

  • Weight

    8.73 lb (3.96kg)

  • UPC Code

    068888993258

About Pyramid PB3818

Pyramid PB3818 Features

  • Two Channel Amplification
  • 2x 2500W Max Output
  • 1x 5000W Watts 2 Bridged
  • Fully Adjustable Electronic Crossovers
  • Variable Bass Boost (0-12DB@50Hz)
  • Soft Turn On/Off Circuit
  • 2 Ohm Stereo Stable
  • Bridgeable into 4 Ohms
  • Mosfet PWM Power Supplies
  • Variable Gain Control
  • Remote Turn On
  • Heavy Duty Aluminum Alloy Heat-sink
  • Hi/Low Level Inputs
  • High Impedance Input
  • High Level Molex Input
  • Power and Protection LED's
  • S/N Ratio: >95DB
  • THD less than 0.04%
  • Fully Protected Circuitry

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two Channel Amplification
  • 2x 2500W Max Output
  • 1x 5000W Watts 2 Bridged
  • Fully Adjustable Electronic Crossovers
  • Variable Bass Boost (0-12DB@50Hz)
  • Soft Turn On/Off Circuit

What's in the box:

  • PB3818 5000 Watt 2-Channel Bridgeable Mosfet Amplifier
  • Pyramid 1 Year Limited Warranty
