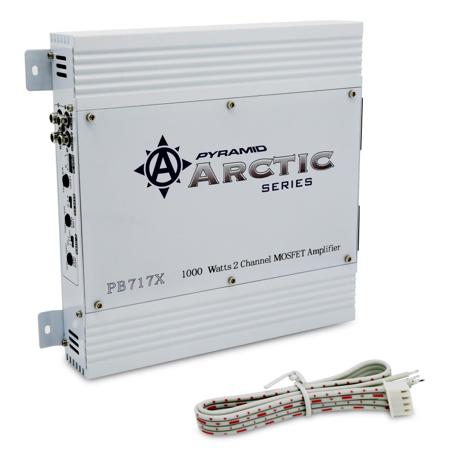

Pyramid PB717X Arctic 1000 Watts 2-Channel Bridgeable MOSFET Amplifier
See all Pyramid items

Pyramid PB717X Arctic 1000 Watts 2-Channel Bridgeable MOSFET Amplifier

SKU: PDPB717X
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyramid PB717X Specifications

  • Output Power (@ 14.4v DC 1KHz)

    RMS Power: 50 Watts x 2 (@ 4 Ohms), 75 Watts x 2 (@ 2 Ohms)
    Maximum Power Output: 500 Watts x 2

  • Frequency Response

    10Hz-70 KHz

  • Input Impedance

    Low Level Inputs: 10k Ohms
    High Level Inputs: 100 Ohms

  • Input Sensitivity

    Low Level Inputs: 200mV
    High Level Inputs: 5V

  • Power Supply Voltage

    14.4V DC Neg.Ground (10.5-16V)

  • Matching Speaker Impedance

    Stereo Mode: 2-4 Ohms
    Bridged Mode: 4-8 Ohms

  • Maximum Current Draw

    30A

  • Dimensions (L x W x H)

    9.84 x 10.03 x 1.96" (250 x 255 x 50mm)

  • Weight

    6.78 lb (3.07kg)

About Pyramid PB717X

Pyramid PB717X Features

  • Two Channel Bridgeable Amplification
  • Tri-way Configuration: 1/ 2 Channels
  • 2x 50 Watts Total Output @ 4 Ohms
  • 1000 Watts Total System Output @ 4 Ohms
  • Variable Gain Control
  • MOSFET Pulse Width Modulated Power Supply
  • 2 Ohm Stereo Stable
  • Built-In Variable Subwoofer Crossover
  • High Level Low Impedance MOLEX Input Connector
  • RCA Low Level Inputs
  • Speaker Output Terminal Strip
  • Signal/Noise Ratio: 90dB
  • THD less than 0.04%
  • Overload Protection
  • Thermal Protection
  • Short Circuit Protection
  • Power on LED Indicator
  • LED Diagnostic Condition Indicator
  • Automotive Type Fuse Protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two Channel Bridgeable Amplification
  • Tri-way Configuration: 1/ 2 Channels
  • 2x 50 Watts Total Output @ 4 Ohms
  • 1000 Watts Total System Output @ 4 Ohms
  • Variable Gain Control
  • MOSFET Pulse Width Modulated Power Supply

What's in the box:

  • PB717X Arctic 1000 Watts 2-Channel Bridgeable MOSFET Amplifier
  • Pyramid 1 Year Limited Warranty
