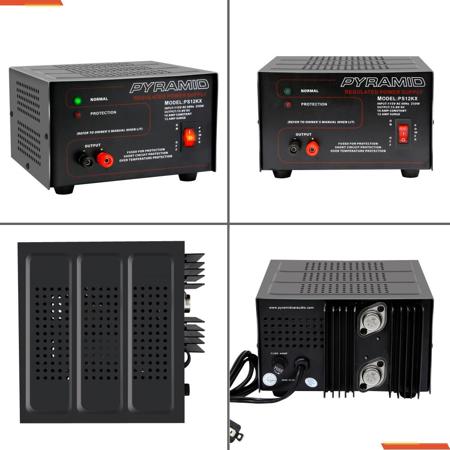

Pyramid PS12KX.5 10 Amp 13.8V AC to DC Converter Power Supply
See all Pyramid items

Pyramid PS12KX.5 10 Amp 13.8V AC to DC Converter Power Supply

SKU: PDPS12KX5
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyramid PS12KX.5 Specifications

Electrical

Electrical

Jump to...

  • Input Voltage

    105-125VAC (115V Normal)

  • Input Line Frequency

    60Hz

  • Input Power

    Max: 250W

  • Output Voltage

    13.8VDC+0.3V

  • Output Current

    10Amp Constant/ 12Amp Surge

  • Output Ripple

    150mV RMS

  • Load Regulation

    2.5% (280mV)

  • Input Line

    Glass Tube Fuse 4.0 AMP 250V

  • Over-Load Protection

    +10-15% (Auto Reset)

  • Efficiency

    60% Min (Input at 115 VAC and Output at 10 Amp)

  • Design

    Linear Type

  • Temperature

    Operating: 32 to 104 Degree F (0 to +40 Degree C)
    Storage: -13 to 158 Degree F (-25 to +70 Degree C)

Mechanical

Jump to...

  • Enclosure

    Metal/Blue

  • Input Cable

    SPT-2 6' (1.82m) 18 AWGx2C W/1-15P-Plug

  • Output Terminal

    Binding Post, 10A/125V

  • Power Switch

    Illuminated, 15A/125VAC

  • Dimensions (L x W x H)

    7.9 x 7.2 x 4.7" (20.06 x 18.28 x 11.94cm)

  • Weight

    9.47 lb (4.3kg)

About Pyramid PS12KX.5

Pyramid PS12KX.5 Features

  • Linear / Regulated Power Supply Design
  • AC-to-DC Power Conversion (12V DC)
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source
  • Fuse Protected with Auto-Reset
  • Electronic Overload & Short Circuit Protection
  • Used for Component & Device Equipment Testing Operation & Performance
  • Rugged & Durable Housing Construction Cabinet Heatsink
  • LED Indicator Lights
  • Built-in Cooling Fan
  • Power ON / OFF Switch
  • Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Linear / Regulated Power Supply Design
  • AC-to-DC Power Conversion (12V DC)
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source

What's in the box:

  • PS12KX.5 10 Amp 13.8V AC to DC Converter Power Supply
  • Pyramid 1 Year Limited Warranty
