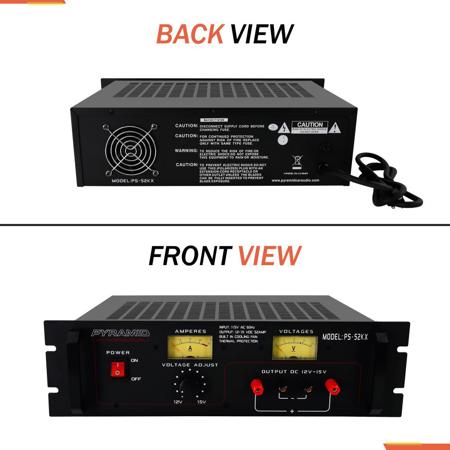

Pyramid PS52KX 50 Amp AC to DC Converter Power Supply with Built-in Cooling Fan
See all Pyramid items

Pyramid PS52KX 50 Amp AC to DC Converter Power Supply with Adjustable Voltage Control Rack Mount and Built-in Cooling Fan

SKU: PDPS52KX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyramid PS52KX Specifications

Electrical

Electrical

Jump to...

  • Input Voltage

    105-125VAC (115VAC Normal)

  • Input Line Frequency

    60Hz

  • Input Power

    Max: 800W

  • Output Voltage

    12VDC-15VDC

  • Output Power

    600W Max/13.8VDC at 45 AMP Max

  • Output Ripple

    150mV RMS

  • Load Regulation

    2% Max

  • Line Regulation

    1% (105VAC - 124VAC)

  • Input Line Precaution

    Glass Tube Fuse 10 AMP/250V

  • Over-Load Precaution

    90% Rated Load PrecautionDevices

  • Over-Load Protection

    50 Amp + 2 Amp (Instant Automatic Reset)

  • Over-Voltage Protection

    16VCD + 0.5V (Automatically Shut off)

  • Over-Temperature Protection

    Automatic Reset

  • Efficiency

    60% Min (Input at 115 VAC and Output at 13.8VDC 45Amp)

  • Design

    Linear Type

  • Temperature

    Operating: 32 to 104 Degree F (0 to +40 Degree C)
    Storage: -13 to 158 Degree F (-25 to +70 Degree C)

Mechanical

Jump to...

  • Enclosure

    Metal/Black

  • Input Power Cable

    SVT/18AWG x 3C/ 6' (1.82m) with NEMA 5-15P-Plug

  • Output Terminal

    Binding Post, Red & Black

  • Voltage & Ampere Meter

    Analog Type, Class 2.5%

  • Power Switch

    Illuminated Type, 20A/125VAC

  • Potentiometer

    Output Voltage Adjustable

  • Dimensions (L x W x H)

    12 x 19 x 4.5" (30.4 x 48 x 11.4cm)

  • Weight

    36.60 lb (16.6kg)

Other

Jump to...

  • UPC Code

    068888701716

About Pyramid PS52KX

Pyramid PS52KX is a 50A bench power supply and AC-to-DC power converter with analog gauge amperage and voltage metered display. It is rack mountable for work desk or equipment testing station.

Pyramid PS52KX Features

  • Linear / Regulated Power Supply Design
  • AC-to-DC Power Conversion (12V DC)
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source
  • Analogue Gauge Amperage & Voltage Metered Display
  • Rotary Control Voltage Level Adjustment
  • Fuse Protected with Auto-Reset
  • Electronic Overload & Short Circuit Protection
  • Used for Component & Device Equipment Testing Operation & Performance
  • Rugged & Durable Housing Construction Cabinet Heatsink
  • Rack Mountable
  • Built-in Cooling Fan
  • Power ON / OFF Switch
  • Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Linear / Regulated Power Supply Design
  • AC-to-DC Power Conversion (12V DC)
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source

What's in the box:

  • PS52KX 50 Amp AC to DC Converter Power Supply
  • Pyramid 1 Year Limited Warranty
