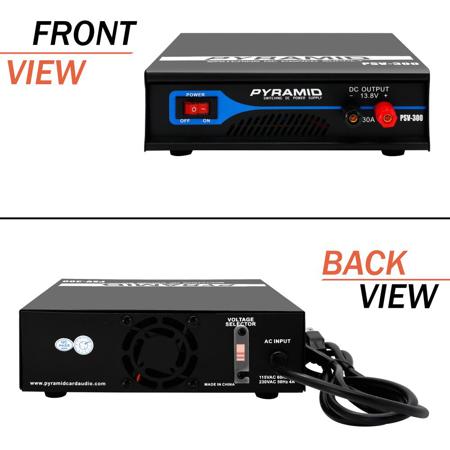

Pyramid PSV300 Heavy Duty 30 Amp Switching DC Power Supply
See all Pyramid items

Pyramid PSV300 Heavy Duty 30 Amp Switching DC Power Supply

SKU: PDPSV300
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pyramid PSV300 Specifications

  • Input Voltage

    110 to 120V AC

  • Input Frequency

    60 Hz

  • Output Voltage

    13.8V DC +/-0.5 Volts

  • Output Current

    30 Amps DC Continuous (Maximum)

  • Line Regulation

    < +/-5%

  • Load Regulation

    < +/-5%

  • Overload Protection

    FUSE 6A/250V

  • Output Ripple

    150 mV RMS

  • Design

    Switching Type

  • Operating Temperature

    32 Degree F to 86 Degree F (0 to 30 Degree C)

  • Storage Temperature

    -13 Degree F to 158 Degree F (-25 to 70 Degree C)

  • Input Cable

    SVT18 AWG / 3C 85 Degree C 6'

  • Output Terminal

    Binding Post 10 Amp/125 Volts

  • Power Switch

    Illuminated, 10A /250 VAC

  • Dimensions (W x H x D)

    8.46 x 2.67 x 8.30" (215 x 68 x 211mm)

  • Weight

    4.96 lb (2.25kg)

About Pyramid PSV300

Your PYRAMID Heavy-Duty 30-Amp Switching DC Power Supply is designed to use AC power-to-power equipment that requires 12V DC automotive power. The power supply converts standard 120V AC household power to 13.8V DC power and can supply up to 30 amps of continuous power

Pyramid PSV300 Features

  • Regulated Home Power Supply Design
  • AC-to-DC Power Conversion
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source
  • Rugged & Durable Housing Construction
  • Built-in Cooling Fan
  • Power ON / OFF Switch
  • Electronic Overload & Short Circuit Protection
  • Used for Component & Device Equipment Testing Operation & Performance
  • Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Regulated Home Power Supply Design
  • AC-to-DC Power Conversion
  • Provides Constant Source of DC Voltage
  • Simple Electronic Plug-in Operation
  • Hassle-Free Screw Terminal Connectors
  • Eliminates the Need of Battery or External Power Source

What's in the box:

  • PSV300 Heavy Duty 30 Amp Switching DC Power Supply
  • Pyramid 1 Year Limited Warranty
