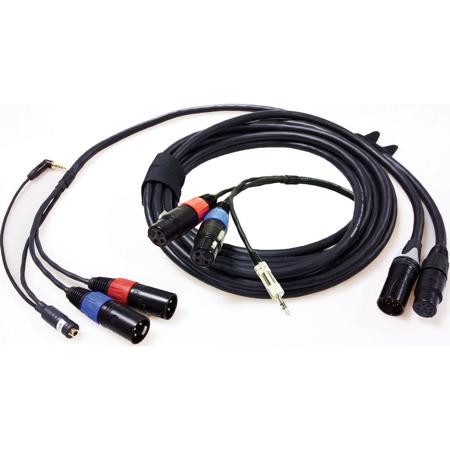

Peter Engh M3 7-pin Quick-Release Cable Set with 2x 18' XLR-3F Mixer End and 34" Standard Camera End

SKU: PE1000AU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Peter Engh M3 7-pin Quick-Release Cable Set Specifications

  • Mixer

    Output: Via (2) XLR-3F L/R

  • Monitor

    Return Monitor: Via 3.5 mm TRS straight mini male
    Return Monitor Send: 3.5 mm stereo TRS mini male, right angle

  • Camera Input

    34" XLR-7F to 2 XLR 3-pin Male [L/R]

  • Camera Operator

    Listen: Female 3.5 mm Stereo Mini TRS tap

  • Length

    Mixer End: 18.0' (5.48 m)
    Camera End: 34.5" (87.63 cm)

  • Dimensions

    10.0 x 12.0 x 1.5" (254.0 x 304.8 x 38.1 mm)

  • Weight

    1.6 lbs (0.72 kg)

About Peter Engh M3 7-pin Quick-Release Cable Set

The Peter Engh M3 7-pin Quick-Release Cable Set is designed to connect field mixer or recorder outputs to camera inputs with a 7-pin connector break point. The cable system also sends a monitor return back to the mixer and most often a courtesy monitor tap for the cameraman. The available mixer ends and camera ends will accommodate almost every professional mixer, recorder and camera.

The Peter Engh M3 7-pin Quick-Release Cable Set is a complete and robust Breakaway cable system. Not only does the system account for sending and receiving audio from a field mixer to a camera, it also allows the integration of Lectrosonics wireless links, extension cables and most notably the SPILTMON 3 three camera splitter. Each and every cable is meticulously handcrafted to high standards using high-quality components.

What's in the box:

  • Peter Engh M3 7-pin Quick-Release Cable Set with 2x 18' XLR-3F Mixer End and 34" Standard Camera End
  • Peter Engh 1 Year Parts and Labor Limited Warranty
