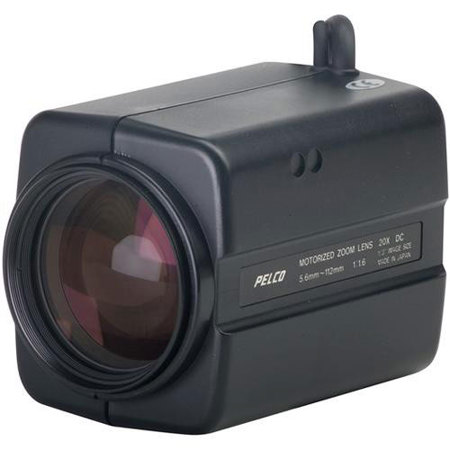

Pelco 13ZD 1/3" Motorized Zoom Lens, 20X, 5.6-112mm, Auto Iris Direct Drive
See all Pelco items

Pelco 13ZD 1/3" Motorized Zoom Lens, 20X, 5.6-112mm, Auto Iris Direct Drive

SKU: PE13ZD56X20
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pelco 13ZD Specifications

  • Type

    Motorized Zoom

  • Format Size

    1/3"

  • Mount Type

    CS

  • Focal Length

    5.6 - 112 mm

  • Zoom Ratio

    20X

  • Relative Aperture (f)

    1.6 - 360

  • Operation

    Iris: Auto (Direct Drive)
    Focus: Motorized
    Zoom: Motorized

  • Angle of View

    Diagonal: 3.2 Degree - 59.4 Degree
    Horizontal: 2.6 Degree - 47.6 Degree
    Vertical: 1.9 Degree - 35.7 Degree

  • Minimum Object Distance

    1.5 m

  • Back Focal Length

    8.97 mm

  • Filter Size (mm)

    55P0.75

  • Weight

    1.23 lb (0.56kg)

  • UPC Code

    700880040027

About Pelco 13ZD

Pelco's 13ZD Series of 1/3-inch motorized zoom lenses cover a wide range of applications from wide angle to telephoto. Each auto iris lens in this series covers a specific range of focal lengths and is available with or without preset positioning.

Appropriate for indoor and outdoor lighting situations, the 13ZD Series lenses will fit all 1/3-inch CS-mount cameras requiring DC-drive auto iris lenses. In addition, all auto iris lenses include a spot filter. A factory-installed, square 4-pin auto iris connector is standard.

Maximum apertures of f/1.6 or f/1.8 and a minimum aperture of f/360 allow excellent performance characteristics across a wide range of lighting conditions.

Pelco 13ZD Features

  • CS Mount
  • Spot Filter
  • For Use with 1/3" Format Cameras
  • Auto Iris (Direct Drive, No Amplifier), Motorized Focus and Zoom (with or without Presets)
  • High Resolution Power in Compact Body

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CS Mount
  • Spot Filter
  • For Use with 1/3" Format Cameras
  • Auto Iris (Direct Drive, No Amplifier), Motorized Focus and Zoom (with or without Presets)
  • High Resolution Power in Compact Body

What's in the box:

  • 13ZD 1/3 " Motorized Zoom Lens (5.6-112mm)
  • Pelco 2 Year Limited Warranty
