Final Sale - No Returns or Exchanges
See Options
Need help? Ask our experts.
Review Summary
39 to 80" (99.06 to 203.20cm)
800 x 400mm
832 x 405mm (32.76 x 15.94")
200 lbs (90.72kg)
2.63 - 5.71" (6.68 - 14.50cm)
Tilt: -5 to 15 deg.
Vertical: Up to 0.25" (0.64cm)
Horizontal: Up to 8.0" (20.32cm)
UL listed
VESA approved
RoHS certified
OHSPD approved
Scratch resistant fused epoxy
36.54 x 16.89 x 2.62 - 5.40" (92.81 x 42.90 x 6.65 - 13.72cm)
8.70 lbs (3.95kg)
735029231875

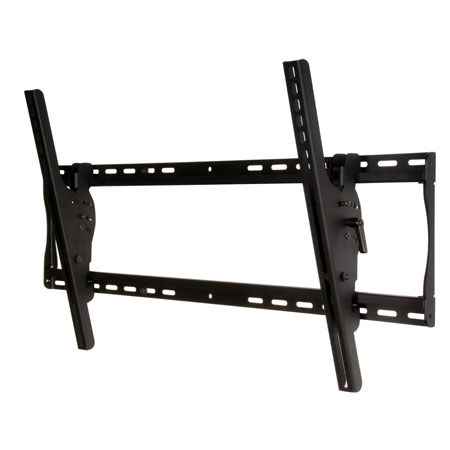

The SmartMount Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok tilt technology. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple and secure installation.
Universal mount fits displays with mounting patterns up to 832 x 405mm (32.76 x 15.94")
Adjustable 15deg. forward tilt and 5deg. backward tilt for finding the optimal viewing angle
Easy-Grip ratcheting handle locks tilt angle into place
Included IncreLok feature offers fixed tilt lock in 5deg. increments when used
Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Includes all necessary wall and display attachment hardware
Design is UL listed and tested to four times stated load capacity
Hook-and-Hang Installation
Display is easily installed by a single person.
Horizontal & Vertical Adjustment
Post-installation leveling and side-to-side adjustability features allow fine tuning of the mounted display for the perfect display positioning.
Increlok Tilt Technology
Lock the tilt angle for the perfect view and prevent tampering or undesired adjustment.
Easy-Glide Adaptors
Hooks onto the wall plate for quick, simple and secure installation.
Open Wall Plate
Allows total wall access, increasing electrical and cable management options.
