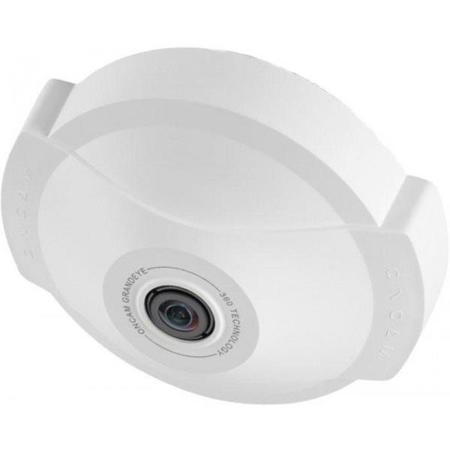

Pelco Evolution 12 12MP Surface Mount Indoor Camera with Fisheye Lens, White
See all Pelco items

Pelco Evolution 12 12MP Surface Mount Indoor Camera with Fisheye Lens, White

SKU: PEEVO12NID

This item is no longer available.

Recommended Alternatives

Pelco SRXP4-8V9-EBT-IR: Picture 1 regular
Pelco Sarix Professional 4 SRXP4-8V9-EBT-IR 8MP Network Outdoor Bullet Camera
$801.45
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pelco Evolution 12 Specifications

General

General

Jump to...

  • Lens Field of View

    180 Degree Horizontal, 180 Degree Vertical

  • Image Sensor

    4072 H x 3046 V, 12.4 MP (approximately), 1/2.3 in. Sony CMOS Sensor

  • Lens

    185 Degree / F2.0

  • Minimum Illumination

    0.1 lux = 50 IRE F/2.0

  • Frame Rate

    12 fps typical at maximum resolution

  • Video Motion Detection

    8 configurable regions

  • External Input

    1x contact input

  • External Output

    1x contact output

  • Security

    Configurable password protection

  • Advanced Event Management

    Triggered by motion, external input or HTTP event, result configurable, external output, FTP/SMTP upload, Local recording

  • Networking

    TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP and RSTP

  • Privacy

    10 configurable privacy regions

  • SD Card

    Built-in SD card slot. Supports cards up to 128 GB capacity. Speed class 10 or higher required.

  • Audio Connections

    Audio In through 3.5 mm jack, RTSP using G711 codec and ONVIF S

  • Analog Video Out

    Test port for production, not available in normal operation

  • White Balance Range

    Auto White Balance (Range = approx. 2500 K - 8000 K)

Video

Jump to...

  • Video Stream 1

    Codec: H.264 in 9.6 MP, 6 MP, 4 MP
    Compression Level: Multi-levels of compression and frame rate adjustment (14 fps max)
    Pixel Resolution: Fisheyes at: 4 MP (2080 x 1960), 6 MP (2528 x 2376), 9.6 MP (3200 x 3000)

  • Video Stream 2

    Codec: H.264 in 4 MP, 2 MP, 1 MP and 1/4 MP
    Compression Level: Multi-levels of compression and frame rate adjustment (14 fps max)
    Pixel Resolution: Fisheyes at: 1/4 MP (544 x 512), 1 MP (1056 x 992), 2 MP (1472 x 1384), 4 MP (2080 x 1960)

  • Video Stream 3

    Codec: MJPEG in 4 MP, 2 MP, 1 MP and 1/4 MP
    Compression Level: Multi-levels of compression and frame rate adjustment (14 fps max)
    Pixel Resolution: Fisheyes at: 1/4 MP (544 x 512), 1 MP (1056 x 992) , 2 MP (1472 x 1384), 4 MP (2080 x 1960)

  • Video Stream 4, 5, 6, 7

    Codec: H.264 Only
    Compression Level: Multi-levels of compression and frame rate adjustment (up to 30 fps)
    Pixel Resolution: 4x independent onboard dewarped VCams at 1/4 MP and 1 MP

  • Image Control

    Settings include brightness / contrast / saturation / exposure compensation, compression quality and wall / ceiling / table mount

  • Image Enhancement

    Electronic WDR 60 dB

  • PTZ Functionality

    10x zoom with Oncam 3D client-side dewarping software

  • VMS / NVR Supported

    Supported by major VMS / NVR systems including
    VideoXpert (version 1.6 or later) and Digital Sentry (version 7.8.90 or later)

  • Web Browser Compatibility

    Internet Explorer 9, Edge 25, Firefox 23 and Chrome 29 or above. Plug-in required for full functionality

  • Unicast

    Up to 20 simultaneous users depending on the resolutions settings

  • Multicast

    Supported for H.264 main camera stream

  • Bit Rate Control

    Options include Constant Bit Rate Control and Constant Quality Control

Electrical

Jump to...

  • Ports

    RJ45 for 1000Base-TX
    2.1mm DC Input jack
    6-pin 1.5 mm Phoenix for external I/O
    BNC for test video output

  • Network Cable Type

    CAT5 or better for 1000Base-TX

  • Power Input

    12 VDC, 1.0 A (min) LPS or NEC Class 2 power supply or Power over Ethernet (PoE), IEEE standard 802.3af

  • Power Consumption

    Maximum: 8.4 W (PoE 48 VDC) / 7.32 W (DC 12 VDC)

Environmental

Jump to...

  • Operating Temperature Range

    -32 to +104 Degree F (0 to +40 Degree C)

  • Operating Humidity

    Up to 98% non-condensing

  • Ingress Protection

    IP40

Certifications

Jump to...

  • Approvals

    IEEE802.3af, CE, AS/NZS CISPR 22:2009+A1:2010, CISPR 24:2010 (Class A), FCC, ICES-003, KCC, CU, RCM, SASO UL 60950-1(ed.2) & CAN/CSA C22.2No. 60950-1-07, RoHS, REACH

Mechanical

Jump to...

  • Housing Material

    Polymer

  • Camera Mount

    Surface mount

  • Dimensions (L x W x H)

    7.1 x 6.3 x 2.8" (179 x 160 x 70mm)

  • Weight

    25.4 oz (721.2g)

Other

Jump to...

  • UPC Code

    700880337837

About Pelco Evolution 12

Evolution 12 360 Degree Indoor Camera
The next step in 360 Degree total situational awareness

12 MP high-resolution sensor
• Constant 360 Degree surveillance with no blind spots
• No moving parts, no maintenance and silent operation
• High quality images in low-light conditions
• 12 fps at 9.6 MP max resolution and up to 30 fps at 2.0 MP
• 0.1 lux minimum illumination
• PoE or 12 VDC powered

Multiple interior mount options
• Quick and easy installation
• Clean and simple design
• Convenient surface-mounting enclosure
• Range of accessories provide multiple mounting possibilities including ceiling, wall and pendant
• Enclosure available in black and white

Extensive VMS/NVR platform integration with Oncam SDK
• Market leading Oncam Grandeye 3D dewarping software
• Full live and retrospective dewarping available
• Camera features are accessible through VMS platforms
• Simultaneous multiple video streams
• 10x digital zoom capability through client-side dewarping
• H.264 / MJPEG streaming with multiple quality levels
• Optimizes bandwidth and storage utilization
• Intuitive web-based interface for viewing and configuration
• Supported by major VMS / NVR systems including VideoXpert (version 1.6 or later) and Digital Sentry (version 7.8.90 or later)
• ONVIF profile S conformant

Pelco Evolution 12 Features

  • Local 3D dewarping providing 4x VCams at 1 MP max each
  • Local SD card slot for event recording
  • Configurable privacy regions
  • Polygonal video motion detection regions
  • Local alarm digital input and output
  • Audio microphone input

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Local 3D dewarping providing 4x VCams at 1 MP max each
  • Local SD card slot for event recording
  • Configurable privacy regions
  • Polygonal video motion detection regions
  • Local alarm digital input and output
  • Audio microphone input

What's in the box:

  • Pelco Evolution 12 12MP Surface Mount Indoor Camera with Fisheye Lens (White)
  • Pelco 3 Year Limited Warranty
