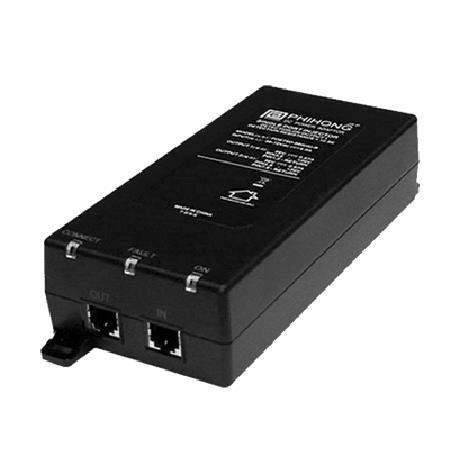

Pelco 75W PoE Single-Port Injector with US Power Cord
See all Pelco items

Pelco 75W PoE Single-Port Injector with US Power Cord

SKU: PEPOE75U1UPU
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pelco PoE Injector Specifications

  • Input Voltage Rating

    100 to 240 VAC +/- 10%

  • AC Input Current

    2 A (RMS) maximum for 90 VAC; 1.2 A (RMS) maximum for 240 VAC

  • Leakage Current

    3.5mA maximum at 254 VAC 60 Hz

  • AC Input Frequency

    47 to 63 Hz

  • AC Inrush Current

    30 A (RMS) maximum for 115 VAC; 60 A (RMS) maximum for 230 VAC

  • Total Output Power

    75W

  • Ripple and Regulation

    250 mV maximum

  • Efficiency

    80% (typical) at maximum load; 120VAC, 60Hz

  • Hold-up Time

    10 milliseconds minimum; 120 VAC and maximum load

  • Transient O/P Voltage Protection

    60V maximum

  • Over Voltage/Current

    Short Circuit Protection: Outputs equipped with short circuit protection and overload protection as per 802.3af specifications except maximum average current is 1.34 A; the output can be shorted permanently without damage

  • Input Connectors

    IEC320 inlet 3-pin

  • Output Connection

    4-pair powering for full power; 2-pair powering for IEEE802.3at mode

  • IEEE 802.3af/at Interoperability

    If 25k Ohms is detected the unit operates in IEEE802.3at mode; 33.6 W, 2 pair powering; 12.5 k detection resistance required for full power

  • Operating Temperature

    -20 to 40 deg. C (-4 to 104 deg. F)

  • Storage Temperature

    -25 to 65 deg. C (-13 to 149 deg. F)

  • Maximum Humidity Gradient

    5% to 90%

  • Certifications

    CE, Class B
    FCC, Class B
    UL/cUL Listed

  • UPC Code

    700880335215

About Pelco PoE Injector

The POE75U-1UP Power over Ethernet (PoE) single port power injector is designed to meet the demanding data rate and power requirements of outdoor Spectra Enhanced IP cameras with high-quality streaming video capabilities. The injector offers total output power of 75 W, which meets the IEEE802.3af and IEEE802.3at standards for detection, connection, disconnection and fault protection. The POE75U-1UP power injector is compatible with 10/100/1000Base-T systems. AC input voltage ranges from 100 to 240 VAC with input frequency from 47 to 63 Hz. Maximum output load current is 350 mA at 56 VDC.

Pelco PoE Injector Features

  • 75 Watts of High PoE Power for the Outdoor Spectra Enhanced PTZ
  • Diagnostic LEDs
  • Broken Wire Detection
  • Proprietary Detection, Disconnect, and Overload
  • Full Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Pelco 75W PoE Single-Port Injector with US Power Cord
  • Pelco 90 Day Warranty
