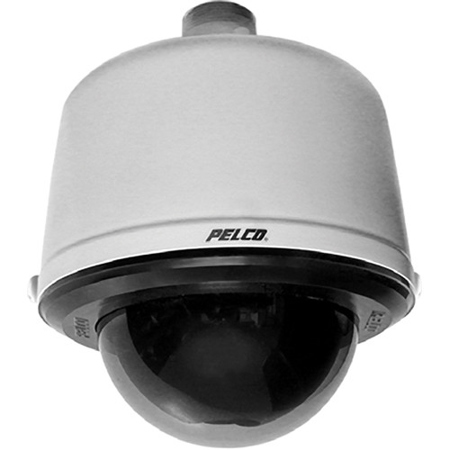

Pelco Spectra IV SE 36X Integrated NTSC Dome Camera System, Light Gray

Modularity

Spectra IV SE was designed with ease of installation and ease of maintenance in mind. Each dome system consists of three components: a back box, a dome drive, and a lower dome. These three system components are interchangeable with other Spectra IV SE dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time.

Back Box

Spectra IV SE back box options include the following models: environmental in-ceiling (ideal for outdoor soffits), indoor in-ceiling, indoor surface mount, and standard and environmental pendant. The Spectra IV SE Series can also be ordered with heavy-duty, pressurized, and stainless steel back box options (refer to the appropriate product specification sheets for more information).Each back box model features built-in back box memory to store camera and location-specific dome settings, including labels, presets, patterns, and zones. A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, Pelco fiber modules can also be attached to the door assembly for transmission over single-mode or multimode fiber.

Dome Drive

The Spectra IV SE dome drive's unique integrated optics package incorporates many advanced features that allow the system to produce high quality video in the most difficult environments. All cameras in Spectra IV SE dome drives feature LowLight technology allowing the cameras to compensate for scenes where minimal light is present. Both the 29X and the 36X cameras feature built-in motion detection and advanced 128X WDR that enables the system to compensate for scenes where dramatic contrasts in lighting are present. The 36X day/night camera electronic image stabilization digitally reduces blurring of the camera image due to vibration caused by external sources, such as wind and traffic. Auto sharpness enhances picture detail by increasing the aperture gain of the camera and sharpening the edges in the picture.

Lower Dome

Special consideration was taken when designing the Spectra IV SE lower dome bubble to ensure that an optimal optical relationship between the lens and bubble was achieved, providing crystal clear video at long focal lengths.

Dome Systems

Spectra IV SE dome systems feature many software enhancements that increase performance and make configuration and operation easy. An internal scheduling clock allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to eight, four-sided, user-defined privacy areas. Password protection prevents unauthorized users from changing the system settings. Configurable on-screen compass and tilt display provides positioning information when needed. Intuitive multilingual on-screen menus can be displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech.

Spectra IV SE's variable speed capabilities range from a smooth, fast pan motion of 400 degrees per second to a smooth "creep" speed of 0.1 degree per second. The system is capable of continuous 360 degrees rotation and has an "auto flip" feature that allows the dome to rotate 180 degrees and reposition itself for uninterrupted viewing of any subject that passes directly beneath the dome.

In addition, with the optional Pelco TXB-N module, you can add IP network capability at any time to a Spectra IV dome system without losing analog viewing and control. By snapping the TXB-N module into the back box, you can stream network video to a Web browser, Endura, Digital Sentry, or third-party software recording solution allowing integration into virtually any IP-based system.
