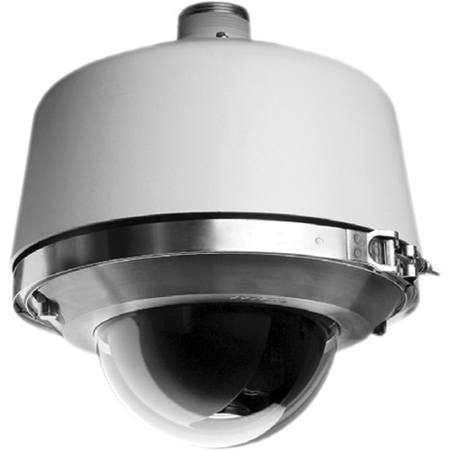

Pelco Pressurized Spectra IV SE 36X Dome Camera System, Light Gray, NTSC

SKU: PESD436PRE1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pelco Spectra IV SE Specifications

Camera
  • Signal Format

    NTSC

  • Scanning System

    2:1 Interlace

  • Image Sensor

    1/4" EXview HAD

  • Effective Pixels

    768 (H) X 494 (V)

  • Horizontal Resolution

    >540 TVL

  • Lens

    Focal Length: 3.3 to 119mm
    Aperture: f/1.4

  • Zoom

    36x optical, 12x digital

  • Zoom Speed

    Optical Range: 3.2 / 4.6 / 6.6 sec

  • Focus

    Horizontal Angle of View: 57.2 Degree at 3.3 mm wide zoom
    1.7 Degree at 119 mm telephoto zoom
    Automatic with manual override

  • Sensitivity

    At 35 IRE NTSC/EIA (maximum)
    Color: 0.55 lux at 1/60 sec and 0.018 lux at 1/2 sec
    B&W: 0.00018 lux at 1/2 sec

  • Sync System

    Internal / AC line-lock, phase adjustable using remote control, V-Sync

  • White Balance

    Automatic with manual override

  • Shutter Speed

    Automatic (electronic iris) / Manual
    1/2 to 1/30,000

  • Iris Control

    Automatic iris control with manual override

  • Gain Control

    Automatic / off

  • Video Output

    1 Vpp, 75 Ohm

  • Video Signal-to-Noise Ratio

    >50 dB

  • Wide Dynamic Range

    128x

  • Image Stabilization

    Electronic Image Stabilization: Integrated/selectable

  • Sharpness Adjustment

    Auto Sharpness: Integrated / selectable

Dome Drive

Jump to...
  • Pan Movement

    360 Degree continuous pan rotation

  • Vertical Tilt

    Unobstructed +2 to -92 Degree

  • Manual Pan/Tilt Speeds

    Pan: 0.1 to 80 Degree /sec manual operation, 150 Degree /sec Turbo
    Tilt: 0.1 to 40 Degree /sec manual operation

  • Preset Speeds

    Pan: 400 Degree /sec
    Tilt: 200 Degree /sec

General

Jump to...
  • Construction

    Back Box and Lower Dome: Type 316L stainless steel
    Bubble: Polycarbonate, 0.090" thick
    V-Band: Type 316L stainless steel
    Pressure Relief and Schrader Valve: Brass
    Connector: Nickel-plated steel

  • Light Attenuation

    Zero light loss

  • Mounting

    1.5" NPT, threaded

  • Pressure Relief Valve

    Valve: Schrader
    Pressure: 8 psig (55 kPa), not factory pressurized
    Pressure Relief: 10 psig (69 kPa)

Electrical

Jump to...
  • Input Voltage

    18 to 32 VAC; 24 VAC nominal
    22 to 27 VDC; 24 VDC nominal

  • Input Power

    24 VAC: 23 VA nominal (without heater); 73 VA nominal (with heater)
    24 VDC: 0.7 A nominal (without heater)

  • Fuse

    1.25 A

  • Auxiliary Output

    2

  • Alarm Inputs

    7

Certifications

Jump to...
  • Certifications

    CE, Class B
    FCC, Class B
    C-Tick
    S Mark for Argentina
    Meets NEMA Type 6P and IP67 standards

Environmental

Jump to...
  • Operating Temperature

    Maximum: 140 Degree F (60 Degree C) absolute maximum; 122 Degree F (50 Degree C) sustained maximum
    Minimum: -60 Degree F (-51.11 Degree C) absolute minimum; minimal icing at sustained minimum of -50 Degree F (-45 Degree C); prevents icing at sustained minimum of -40 Degree F (-40 Degree C); de-ices 0.1" (2.5 mm) within 3 hours after power-up

Physical

Jump to...
  • Dimensions

    Overall: 11.63 x 10.50" (29.50 x 26.70cm)

  • Weight

    Back Box: 10.2 lbs (4.6kg)
    Lower Dome: 3.3 lbs (1.5kg)

  • UPC Code

    700880318768

About Pelco Spectra IV SE

The Spectra IV SE Series Pressurized dome system provides ultimate protection of the camera optics and electronics from moisture, corrosive gases, and airborne contaminants. Domes are easily pressurized with dry nitrogen to 8 psig (55 kPa) before or after installation to stabilize the environment inside the system. Sensors strategically placed in the dome system send an "Alert" message when changes in internal pressure, temperature, or dew point are beyond factory-set acceptable limits. The sensors also allow for instant on-screen display of internal temperature, pressure, and dew point.

Spectra IV SE Pressurized series PTZ dome cameras offer industry-leading moisture protection suitable for the harshest conditions while delivering consistent high-quality video.

Pelco Spectra IV SE Features

  • Pressurized to 8 PSIG (55 kPa)
  • Solid-State Sensors for Internal Temperature, Pressure, and Dew Point
  • On-Demand Environmental Status Display for Internal Temperature, Pressure, and Dew Point
  • On-Screen Alert Modes
  • On-Screen Programmable Menus for Pan/Tilt, Camera, and Sensor Alert Settings
  • Built-in Back Box Memory
  • Integrated Passive UTP Circuit
  • 2 Auxiliary Outputs and 7 Alarm Inputs
  • Environmental Pendant Style Back Box
  • Stainless Steel Construction
  • Meets NEMA Type 6P and IP67 Standards

Key Features

  • Pressurized to 8 PSIG (55 kPa)
  • Solid-State Sensors for Internal Temperature, Pressure, and Dew Point
  • On-Demand Environmental Status Display for Internal Temperature, Pressure, and Dew Point
  • On-Screen Alert Modes
  • On-Screen Programmable Menus for Pan/Tilt, Camera, and Sensor Alert Settings
  • Built-in Back Box Memory

What's in the box:

  • DD436 Spectra IV SE Dome Drive (NTSC)
  • BB4-PR-E Spectra IV Pressurized Environmental Pendant Back Box (Gray)
  • Pelco Pressurized Spectra Lower Dome
  • Pelco 3 Year Limited Warranty
