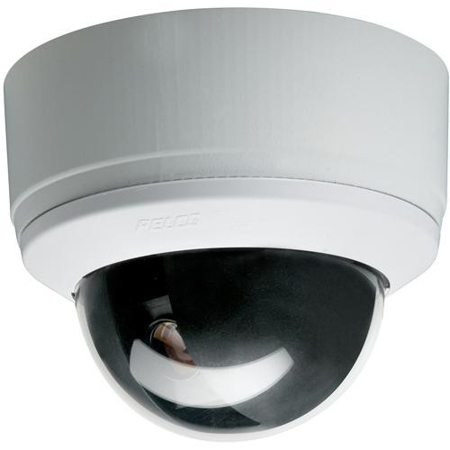

The Spectra Mini incorporates many well-known features from Pelco's full-size Spectra dome system into a cost effective, small form factor. The easy-to-install dome system can be mounted to the surface of ceilings or recessed into hard ceilings and suspended tile ceilings. A high resolution camera transmits video over coaxial cable or unshielded twisted pair (UTP) wires. When paired with active UTP receivers, Spectra Mini is capable of transmitting high quality video across distances of up to 4,000 ft (1,219 m). Pan/tilt operation can be performed with Pelco's controllers that transmit Pelco D, Pelco P or Coaxitron protocols. For non-Pelco controllers, a translator board can be installed. On-screen programming allows easy setup of the miniature dome's many features.
• Familiar Spectra Camera Menu Structure
• Single Model for Surface Mount and In-Ceiling Applications
• Autofocus, High Resolution Integrated Color Camera/Optics Package
• 80X Zoom (10X Optical, 8X Digital)
• Zone Blanking
• 64 Presets
• 0.5deg. Preset Accuracy
• 140deg. /second Pan Speed
• Rotating Discreet Liner
• 1 Pattern
• 1 Dynamic Window Blanking Area
• Proportional Pan and Tilt
• Programmable Zoom Speeds
• Multilingual Support
• Integral, Autosensing, Multiprotocol Receiver
• Auto Flip Dome Rotation
• Integrated UTP Circuit
• Quick Connect Cable for Power, Video (Coaxial or UTP) and Data
• Available with Smoked or Clear Dome
Variable speed capabilities of the Spectra Mini range from a fast pan motion of 140 degrees per second to a smooth "creep" speed of 0.4 degrees per second. The system is capable of continuous 360 degrees rotation and has an auto flip feature. This feature allows the dome to rotate 180 degrees and reposition itself for uninterrupted viewing of any subject that passes directly beneath the dome's location.
• 64 Presets: 53 User Definable and 11 Predefined
• +/-0.5deg. Preset Accuracy
• Multilingual Menus (English, Spanish, Portuguese, Italian, French and German)
• Alternate Language Files (includes Russian, Polish, Turkish and Czechoslovakian) Available as Optional Software Upload
• Data Port for Software Update and Setup
• On-Screen Compass, Tilt and Zoom Display
• Password Protection
• 140deg. /sec Pan Preset Speed and 80deg. /sec Tilt Preset Speed
• Rotating Discreet Liner
• 4 Zones (programmable in size) Can Be Labeled with up to 20 Characters Each or Set to Output Blank Video
• Programmable Locations of Labels and On-Screen Displays
• 1 on-screen, user-defined programmable pattern. Includes pan, tilt, zoom and preset functions
• 1 Programmable Window Blanking Area
• Proportional Pan and Tilt: Continually decreases pan and tilt speeds in proportion to depth of zoom
• Variable Scan Speed: Scan speed can be 3, 6 or 12deg. /sec
• Pan Motion Allows 0.4-140deg. /sec Pan Speed
• Programmable Limit Stops for Auto/Random/Frame Scan Modes
• Autosensing Protocol (Coaxitron, RS-422 Pelco P and Pelco D); Accepts Competitive Control Protocols with Optional TXB Translator Boards
• Digital Position, Zoom Control and Feedback Through Pelco D Protocol
• Built-in Menu System for Setup of Programmable Functions
• Auto Flip Rotates Dome 180deg. at Bottom of Tilt Travel
• Programmable Zoom Speeds
