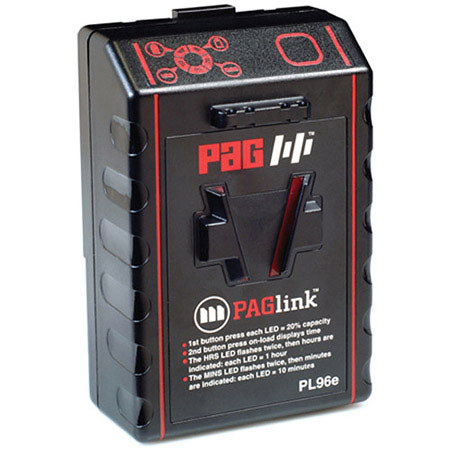

Pag link PL96e Rechargeable V-Mount Li-Ion Battery 14.8V 6.5Ah

• The PL96e is a high-power, intelligent linking battery, and part of the PAGlink system. PAGlink is the only system that allows you to combine the capacities of two to eight batteries in any state of charge, to achieve super-high capacities and a higher current-draw capability.

• It is the only system that allows you to charge batteries whilst linked. PAGlink batteries can be used individually or linked to power a variety of cameras including: high-definition broadcast cameras, digital cinema and 3D camera set-ups, DSLRs and handheld camcorders. An individual PAGlink battery has a capacity of 96 watt-hours, making it unrestricted, in quantity, for air transportation.

• Linking two batteries doublesthe capacity to 192Wh; three batteries provide 288Wh. No other system offers as much power. Hard-wearing, heavy duty contacts are incorporated for high-current applications. The rated maximum continuous output is 12A when linked (8A individually). PAGlink is smarter. Other manufacturers use more expensive cell-technology to sustain a current draw of only 10A, while PAGlink achieves a superior 12A, usingcheaper standard Li-Ion technology.

• As well as being smarter, PAGlink batteries are smaller and lighter, with a higher energy density than any linking system marketed to date. Linked batteries form a high speed serial network that enables them to communicate with each other to control charge and discharge. The rear battery can be hot-swapped for constant, uninterrupted camera power.

• The battery features long-life, premier-quality Li-Ion cells, which have no memory effect, and are completely recyclable. In keeping with PAG's total battery design philosophy it is designed and constructed to provide the longest possible working life. A built-in 5 LED run-time and capacity indicator shows remaining camera run-timein hours and minutes. When linked, run-time is displayed for the total of all batteries connected.

• Battery state-of-charge is displayed as a percentage, in 6 increments. PAGlink batteries support four different data systems that display capacity in the camera viewfinder: Sony, IDX, Red and Anton-Bauer, and adapt automatically when connected. PAGlink batteries store data in their microprocessor, such as capacity, voltage,number of cycles and software version, which can be revealed using the PAGlink Battery Reader (Model 9647), to assist with the management of battery stocks.

• The battery software can be updated using a PAGlink Battery Programmer, ensuringthat you benefit from PAG's continually advancing technology. PAGlink batteries can be charged while linked, using any reputable V-Mount Li-Ion charger. The new, 2-position PL16 charger (Model 9707) will simultaneously charge up to 16 PAGlink batteries (8 on each position), from any state of charge.

• The PL96e has been independently tested and certified to comply with UN transport safety regulations. Its capacity is below 100 watt-hours and it is therefore suitable for air transport on passenger aircraft, in hand-luggage, without quantity restriction. The battery's advanced electronic protection system is fail-safe and features Parylene coated circuits to protect against electrolyte. Enhanced low temperature performance allows PAGlink batteries to operate at -20 Degree C.
