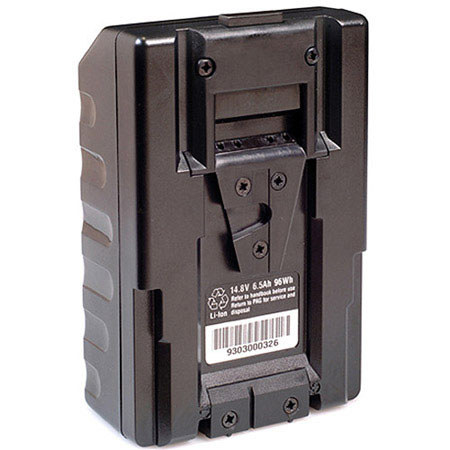

Pag PAGlink PL96T 14.8V 6.5Ah 96 Watt-Hour Li-Ion V-Mount Linking Time Battery

The PAGlink PL96T 14.8V 6.5Ah 96 Watt-Hour Li-Ion V-Mount Linking Time Battery is a high-power linking battery and part of the PAGlink system. PAGlink is the only system that allows you to combine the capacities of two to eight batteries, to achieve super-high capacities and a higher current-draw capability. It is the only system that allows you to charge batteries whilst linked. PAGlink batteries can be used individually or linked to power a variety of cameras: high-definition broadcast cameras, digital cinematography and 3D camera set-ups, HD DSLRs and handheld camcorders.

Linked batteries form a high speed serial network that enables them to communicate with each other to control charge and discharge. The network enables linked batteries to act as one when communicating with the camera. Heavy duty contacts are incorporated for high-drain applications. The rated maximum continuous output is 12A when linked (8A individually). As well as being smarter, PAGlink batteries are smaller and lighter, with a higher energy density than any linking system marketed to date.

The battery features long-life, premier-quality Li-Ion cells, which have no memory effect and are completely recyclable. In keeping with PAG's total battery design philosophy it is designed and constructed to provide the longest possible working life. The PL96T Time Battery incorporates a numeric run-time and capacity display, unique to PAG. Remaining run-time is shown, on-load, expressed in hours and minutes, to a resolution of 1 minute. Remaining capacity is shown as a percentage (1% increments).

The PL96T can be linked to PL96e batteries to provide a numeric display of remaining run-time for all linked batteries. PAGlink batteries support four different viewfinder information systems: Sony, IDX, Red and Anton-Bauer and adapt automatically when connected. When linked, the rear battery can be hot-swapped for constant, uninterrupted camera power.

The PAGlink batteries can also be charged while linked, using any reputable V-Mount Li-Ion charger. The 2-position PAGlink PL16 Charger (Model 9707) can simultaneously charge up to 16 PAGlink batteries. The PL96T has been independently tested and certified to comply with United Nations standards. Its capacity is 96 watt-hours and it is therefore suitable for air transport on passenger aircraft, in hand-luggage, without quantity restriction. The battery's advanced electronic protection system is fail-safe and features Parylene coated circuits to protect against electrolyte. Enhanced low temperature performance allows PAGlink batteries to operate at -20½C.
