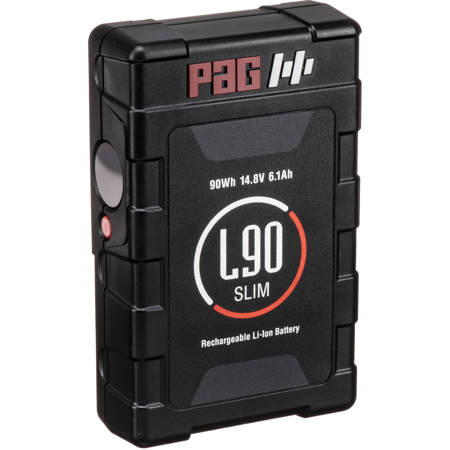

Pag L90 90Wh 14.8V 6.1Ah Slim V-Mount Lithium-Ion Battery

PAG has developed a battery that offers a slim form factor and a weight of only 0.5kg. It has been designed for the ARRI Alexa Mini and is ideal for similar small cameras, especially when mounted to gimbals or drones. The L90 Slim features the latest high-current Li-Ion cells that contribute to the battery's low-profile design. It has a capacity of 90Wh and a continuous current-draw capability of 10A, giving it a higher energy density than most full-sized V-Mount Li-Ion batteries of similar capacity.

PAG-designed firmware is incorporated, making it an intelligent battery that manages its own charge and discharge safely. It can be charged using any reputable V-Mount Li-Ion charger. Reliability, durability and longevity are integral to the battery design, providing an unbeatable return on investment. PAG has incorporated its own proven and tested electronic protection system, to ensure the highest possible level of safety. All PAG Li-Ion batteries are tested to UN standards by an independent, authorized facility, in order to meet Air Transport authority regulations. Each battery is labeled with the UN test number and supplied with an Air Safety document. In addition to UN testing, a capacity below 100Wh ensures that the battery is flight-friendly and suitable for transport on aircraft without quantity restriction.

An important consideration in the design of the cell-pack was ensuring that it could withstand the vibration caused when mounted to multi-rotor aerial platforms. PAG has incorporated spacers between the cells to prevent the negative affects of vibration. Another unique feature is the orientation-sensing numeric Run-Time & Capacity Display, positioned on the side of the battery. The display characters rotate automatically according to the battery's orientation, to ensure legibility. Run-time is displayed to a resolution of 1 minute. Capacity is displayed in 1% increments. PAG was the first to introduce a numeric Run-Time display over 16 years ago and is now the first to offer an orientation-sensing battery display.

In keeping with the latest PAG-developed technology, the L90 communicates automatically with different camera data systems and displays its remaining capacity in the camera viewfinder and LCD. The battery is future-proof to accommodate changes in charger and camera technology. Firmware can be updated easily in the field, via the contacts. The battery case injection-moldings are manufactured from a high-impact material which is inherently very strong. Additionally, the internal case design protects the cell-pack against damaging impact.

The battery features a multi-level electronic protection system which is fail-safe and guards against conditions that reduce battery life. The circuits are coated to protect them and ensure the operation of the safety systems in the event of damage to the battery.
