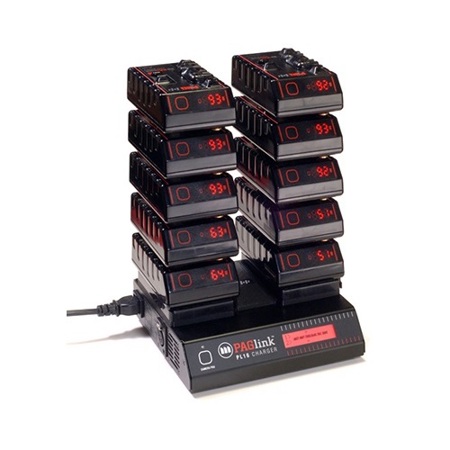

Pag PL16 9707A Two-Position Charger with 2x Gold Mount Connectors for Up to 16 PAGlink Batteries

The 2-position PAGlink PL16 Charger is the ideal location charger for PAGlink Gold Mount Li-Ion batteries. Up to 16 PAGlink batteries can be charged simultaneously (8 per channel). PAGlink batteries communicate their state-of-charge to the charger and enable it to fully-charge all of the batteries, fast and efficiently, regardless of the differences between the batteries in terms of state-of-charge. At the end of a shoot, simply link your batteries and connect them to the charger. The next day, they will be fully charged and ready to go.

The process is managed automatically by the PAGlink batteries' high-speed network and PAG's Intelligent Parallel Charging software. During charging, the percentage state-of-charge of each PAGlink battery is indicated on its individual display. The battery's numeric display can be inverted, for legibility, with a single button press and reverts automatically after removal. The stages of the charging process for each channel are clearly indicated on the charger's large backlit LCD screen. The most discharged batteries are given a higher charge priority. Fully charged batteries will stop accepting charge automatically.

PAGlink means no more power concerns when using high-current camera set-ups and no more midnight battery swapping on the charger. Using a PAG charger to charge and manage your PAG batteries is always the best way to achieve the maximum number of cycles and the longest possible working life. The high-power PL16 is capable of supplying 6A at 16.8V (approximately 100W). The PL16 is robust, ultra-compact, quiet and cool-running.

A Recovery Charge Program is included for deeply discharged batteries. Two presses of the charger's front panel button will enable the batteries to accept charge. The charger will automatically reset Li-Ion batteries if their cut-out has been tripped. The PL16 can be used to power your camera from any AC supply worldwide, using the charger's built-in 100W camera power supply, which has an XLR4 output.

• 2-position simultaneous fast-charger
• 2x Gold Mount connectors
• Features PAG iPC - Intelligent Parallel Charging
• Simultaneously charges up to 16 PAGlink batteries (8 per channel)
• Simultaneously charges the latest PAG standard Li-Ion batteries (1 per channel)
• High-powered 100W output (6A at 16.8V)
• Fast-charges four fully-discharged 94 Watt-hour batteries in 6 hours
• Accepts firmware updates via the battery connectors
• Incorporates a 100W camera power supply with XLR4 output
• 75mm high X 220mm wide x 190mm deep / 1.4kg

Main Charge Programs
Li-Ion Intelligent Parallel Charging program: maximum output 6A at 16.8V (100W approx.).

PAGlink Charging
Up to 8 PAGlink batteries per channel may be charged. Batteries can be in any state-of-charge. The most-discharged batteries will be given a higher charge priority. Fully charged batteries stop accepting charge automatically and independently of other batteries.

Recovery Charge Program
If a battery will not accept charge and is indicated as absent (ABST) on the charger display, a Recovery Charge Program can be initiated by two presses of the front panel button, which will enable the battery to be charged. Additionally, the charger will automatically recover a Li-Ion battery where the output has been shut down.

Self Test Program
Monitors the battery under charge, monitors the charger's own functions and shuts down to a safe condition should any tests fail. .

Output Protection
Protected against short circuit and excess battery voltage.

AC Mains Failure Protection
Should mains failure occur during a charging program or whilst the charger is connected, it will shut down to a safe condition.

User Interface
The charge status of each PAGlink battery is indicated by its own display. The different stages of the charging process are indicated for each channel on the charger's LCD screen. The charger is fully automatic in operation.

Safety
Designed to comply with electrical safety standard BS EN 60065 and UL6500. NOTE: U.K. mains leads are fitted with a 1" fuse to BS1362 rated 5A as standard.

European Union Directives
Complies with the following EU Directives:
• EMC Directive 89/336/EU.
• Low Voltage Directive 73/23/EU.

Typical Battery Charging Times
• 1 battery: 2hrs 30mins
• 2 batteries: 3hrs
• 4 batteries: 6hrs
• 6 batteries: 9hrs 30mins
• 8 batteries: 11hrs 45mins 16 batteries: 24hrs

Charging times given are for fully-discharged 94 Watt-hour PAGlink batteries equally distributed across both channels.

Camera Power Supply
Suitable for powering cameras that can accept a 16.8V input.

Operation
The camera power supply function is operated by pressing and holding the Camera PSU button on the charger's front panel for 1 second. Charging is suspended whilst the power supply is in use.
