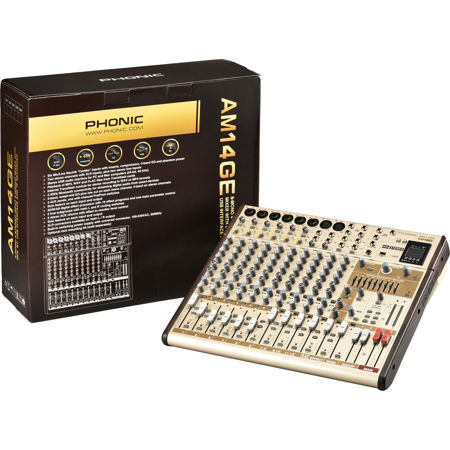

Phonic AM14GE AM Gold Edition 6-Mono 4-Stereo Input 2-Group Mixer with DFX
See all Phonic items

Phonic AM14GE AM Gold Edition 6-Mono 4-Stereo Input 2-Group Mixer with DFX, Plus Bluetooth, TF Recorder & USB Interface

SKU: PHAM14GE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Phonic AM14GE Specifications

  • Inputs

    Total Channels: 14
    Balanced Mono Mic/Line Channels: 6 x Combo XLR-1/4" (6.35mm)
    Balanced Stereo Mic/Line Channels: 2 x XLR
    Balanced Stereo Line Channels: 4 x Stereo 1/4" (6.35mm)
    Aux Returns: 2 x Stereo 1/4" (6.35mm)
    2T Return: Stereo RCA Foot Switch: 1 x 1/4" (6.35mm)

  • Output

    Main L/R Stereo: 2 x XLR and 2 x 1/4" (6.35mm) TRS
    Group 1/2: 2 x 1/4" (6.35mm) TRS
    Aux Send: 3 x 1/4" (6.35mm) TS
    Rec Out: Stereo RCA
    Control Room (L/R): 2 x 1/4" (6.35mm) TS
    Phones: 1 x 1/4" (6.35mm)

  • Channel Inserts

    6 x 1/4" / 6.35 mm TRS (Tip = Send, Ring = Return, Sleeve = Ground)

  • Channel Strips

    10

  • AUX Sends

    3

  • Balance Control

    Pan / Balance Control: Yes

  • Level Controls

    Channels: 10 x 2.4" (60mm) Faders
    Phones: 1 x Rotary
    2T/USB: 1 x Rotary
    Main L/R: 2 x 2.4" (60mm) Faders
    Group 1/2: 2 x 2.4" (60mm) Faders
    Monitor Send: 1 x 2.4" (60mm) Fader
    Effect Send: 1 x 2.4" (60mm) Fader

  • Master Section

    AUX Send Master: 3
    Master AUX Send Solo: 3
    Stereo AUX Returns: 2Effects Return to Monitor: 1

  • Built-in USB Interface

    Stereo In/Out

  • Connector Type

    USB Type-B

  • Supported Bit/Sample Rates

    24-Bit / 48 kHz

  • Return

    USB Return Button: Main/Control Room

  • Recording

    TF Card Recording: WAV / MP3

  • Recording Bit Rate

    MP3: 32, 64, 128, 192 kb/s
    WAV: 512, 768, 1024, 1536 kb/s

  • Bluetooth

    2.4 GHz

  • Metering

    2x 20 LED

  • Phantom Power

    +48 VDC

  • Frequency Response

    20 Hz to 60 kHz (+0/-1 dB)
    20 Hz to 100 kHz (+0/-3 dB)

  • Crosstalk

    < -90 dB (Channel Fader Down, Other Channels at Unity)
    (1 kHz @ 0 dBu, 20 Hz to 20 kHz Bandwidth, Channel in to Main L/R Outputs)

  • Noise

    Master: -86.5 dBu (at Unity, Channel Fader Down)
    Master: -84 dBu (at Unity, Channel Fader at Unity)
    (20 Hz to 20 kHz, Measured at Main Output, Channels 1-4 Unity Gain, EQ Flat, All Channels on Main Mix, Channels 1/3 as Far Left as Possible, Channels 2/4 as Far Right as Possible. Reference = +6 dBu)

  • Signal-to-Noise Ratio (SNR)

    > 90 dB (Reference to +4)

  • EIN

    < -129.5 dBm (150 Ohms Terminated, Max Gain)

  • THD

    < 0.005% (Any Output, 1 kHz at +14 dBu, 20 Hz to 20 kHz, Channel Inputs)

  • CMRR

    80 dB (1 kHz at -60 dBu, Gain at Max)

  • Maximum Level (Input)

    Mic Preamp: +10 dBu
    All Other: +21 dBu

  • Maximum Level (Output)

    Balanced Output: +28 dBu

  • Impedance

    Mic Preamp: 2 kOhms
    All Other Inputs: 10 kOhms
    RCA 2T Output: 1.1 kOhms

  • Equalization

    3-Band, +/-15 dB (Mono)
    Low: 80 Hz
    Mid: 100 Hz to 8 kHz, Sweepable
    Hi: 12 kHz

    4-Band, +/-15 dB (Stereo)
    Low: 80 Hz
    Lo-Mid: 800 Hz
    Hi-Mid: 3 kHz
    Hi: 12 kHz

    9-Band Graphic (Stereo) on Main

  • Internal Digital Effects

    32/40-Bit Digital Effect Processor: 16 EFX

  • Compressor

    Single Knob: Adjusts Ratio and Threshold (Mono Only)

  • Power

    Internal Power Supply: 100 to 240 VAC, 50/60 Hz, 50 W

  • Dimensions (W x H x D)

    16.0 x 4.1 x 14.0" (406.4 x 103.4 x 355.6mm)

  • Weight

    10.6 lb (4.8kg)

About Phonic AM14GE

Phonic's all-new Gold Editions of the classic AM series of mixers offer more ways to record your audio than ever before. We begin with a stereo USB interface for sending audio to and from any modern PC or Mac computer.

This allows recording of digital audio in quality far superior to the average compact disc (24-bit, 48 KHz), plus a user-assignable 'loopback' return signal for monitoring or music playback. A superior onboard module is also included, offering both TF recording and playback in addition to Bluetooth connectivity.

The TF portion allows stereo recordings to be made in uncompressed WAV (up to 1536Kbps) or MP3 format (up to 192KHz), providing phenomenal recording quality previously unavailable without additional, external equipment. Integrated stereo recording at its finest!

The AM Gold Editions still provide many of the analog standards. Ultra low-noise pre-amps ensure high quality sound when used in project studios or in sound reinforcement.

Neutrik-brand combo input connectors are utilized for unparalleled audio while our advanced analog circuitry ensures your audio is handled with the utmost of care. The multi-band EQ on mono channels gives you total control over your audio.

The AM Gold Editions also makes monitoring the mix easy with its dual multi-segment LED level meters, EFX to monitor control and high volume headphone outputs.

Key Features
• Professional quality stereo USB recording interface provides audio superior to CDs (24-bit, 48 KHz)
• Integrated TF+BT module for recording uncompressed audio and playback/streaming audio in multiple formats
• WAV and MP3 recording bitrates selectable by user through onboard menu
• Entirely new, elegant design with classic feel mixed with modern, sleek LED metering
• Uncompromisingly low-noise design handles all audio with the utmost of care
• Utilizes branded Neutrik Combo jacks for unmatched performance
• USB interface with 'loopback' function, user-assignable to headphones or control room mixes

Phonic AM14GE Features

  • Six Mic/Line Neutrik "Combo" inputs with inserts, compressors, 3-band EQ and phantom power
  • Two stereo channels with XLR inputs, plus two stereo line inputs
  • Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
  • Playback of MP3, WAV and FLAC files from TF media
  • Internal TF module for recording stereo audio in WAV or MP3 formats
  • 2.4GHz Bluetooth connectivity for streaming digital audio from smart-devices
  • 3-band, swept-mid EQ plus low cut on each mono channel, 4-band on stereo channels
  • 3 AUX sends, one with channel Pre/Post switches
  • Solo feature on each input and output
  • 32/40-bit digital effect processor with 16 effect programs and one main parameter control
  • 2 true subgroups with main L and R routing switches
  • 2 stereo AUX returns with effect to monitor level control
  • Solo feature on each input and output
  • XLR connectors available on main L / R output
  • Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz
  • Optional rack mounting kit (sold separately)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Six Mic/Line Neutrik "Combo" inputs with inserts, compressors, 3-band EQ and phantom power
  • Two stereo channels with XLR inputs, plus two stereo line inputs
  • Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
  • Playback of MP3, WAV and FLAC files from TF media
  • Internal TF module for recording stereo audio in WAV or MP3 formats
  • 2.4GHz Bluetooth connectivity for streaming digital audio from smart-devices

What's in the box:

  • AM14GE AM Gold Edition 6-Mono 4-Stereo Input 2-Group Mixer
  • IEC Power Cord
  • Phonic 1 Year Limited Warranty
