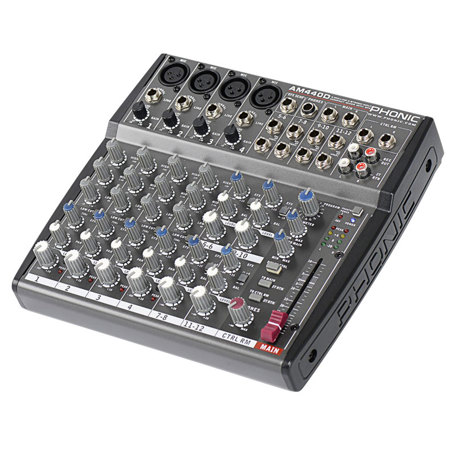

Phonic AM440D 4-Mic/Line 4-Stereo Input Compact Mixer with DFX

SKU: PHAM440D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Laura K : Upgrade from previously used mixer in same line, good stuff

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Phonic AM440D Specifications

Inputs
  • Total Channels

    8

  • Balanced Mono Mic / Line Channel

    4

  • Balanced Mic / Stereo Line Channel

    No

  • Balanced Stereo Line Channel

    4

  • Aux Return

    2 stereo

  • 2T Input

    Stereo RCA

Outputs

Jump to...
  • Main L/R Stereo

    2x 1/4" TRS, Bal.

  • Aux/Efx Send

    1x 1/4" TRS, Bal.

  • Rec Out

    Stereo RCA

  • CTRL RM L/R

    2x 1/4" TS

  • Phones

    1

  • Direct Outputs

    No

  • Channel Strips

    6

  • Aux/Efx Send Outputs

    2

  • Pan/Balance Control

    Yes

  • Volume Controls

    Rotary

  • Inserts

    4

Master Section

Jump to...
  • Aux Send Mater

    No

  • Master Aux Send Solo

    No

  • Stereo Aux Returns

    No

  • Aux Return Assign to Subgroup

    No

  • Effects Return to Monitor

    No

  • Phones Level Control

    Yes

  • Main L/R Level Control

    60mm fader

Metering

Jump to...
  • Number of Channels

    2

  • Segments

    4

  • Phantom Power Supply

    +48V DC

Frequency Response

Jump to...
  • Mic input to any output

    20Hz - 60KHz: +0/-1 dB
    20Hz - 100KHz: +0/-3 dB

Crosstalk

Jump to...
  • Channel fader down

    <-90dB, other channels at unity

  • Master at unity, channel fader down

    -86.5 dBu

  • Master at unity, channel fader at unity

    -84 dBu

  • S/N ratio, ref to +4

    >90 dB

Microphone Preamp E.I.N

Jump to...
  • Microphone Preamp E.I.N

    <-129.5 dBm (150Ohms terminated, max gain)

  • THD

    <0.005% (Any output, 1KHz at +14dBu, 20Hz to 20KHz, channel inputs)

  • CMRR

    80 dB (1 KHz at -60dBu, Gain at maximum)

Maximum Level

Jump to...
  • Mic Preamp Input

    +10 dBu

  • All Other Input

    +21 dBu

  • Balanced Output

    +28 dBu

Impedance

Jump to...
  • Mic Preamp Input

    2 KOhms

  • All Other Input (except insert)

    10 KOhms

  • RCA 2T Output

    1.1 KOhms

  • Equalization

    3-band, +/-15 dB

  • Low EQ

    80 Hz

  • Mid EQ

    2.5 KHz

  • Hi-Mid EQ

    No

  • Lo-Mid EQ

    No

  • Hi EQ

    12 KHz

  • Low Cut Filter

    75Hz (-18dB/oct)

  • 32/40-bit Digital Effect Processor

    100 effects with tap delay

Power Requirement

Jump to...
  • Power Requirement

    100VAC, 120VAC, 220 to 240VAC, 50/60Hz

General

Jump to...
  • Dimensions (WxHxD)

    242 x 55 x 228mm (9.53 x 2.17 x 8.98")

  • Weight

    1.72kg (3.79 lbs)

About Phonic AM440D

The AM series of analog mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

Phonic AM440D Features

  • Four mono mic/line and four stereo channels
  • AUX send on each channel
  • 32/40-bit DFX processor with 16 programs and main parameter control
  • 75Hz low-cut filter on mono channel
  • 3-band EQ on mono channels
  • Control Room/Phones source matrix for maximum monitor flexibility
  • EFX/AUX send cue for monitoring individual channel

What's in the box:

  • Phonic AM440D 4-Mic/Line 4-Stereo Input Compact Mixer
  • AC Power Cable
  • Phonic 1 Year Limited Warranty
