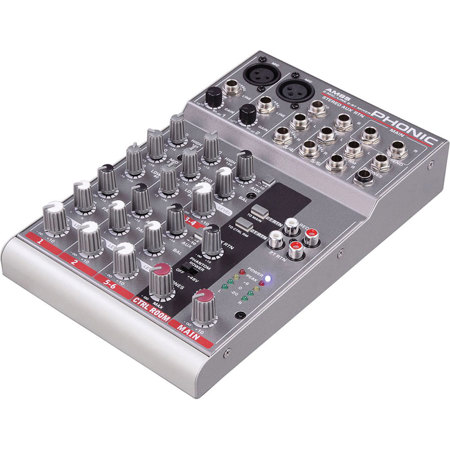

Phonic AM85 2-Mic/Line 2-Stereo Analog Mixer
See all Phonic items

Phonic AM85 2-Mic/Line 2-Stereo Compact Analog Mixer

SKU: PHAM85
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Phonic AM85 Specifications

Inputs

Inputs

Jump to...

  • Total Channels

    4

  • Balanced Mono Mic / Line channel

    2

  • Balanced Stereo Line Channel

    4

  • Aux Return

    1 stereo

  • 2T Input

    Stereo RCA

Outputs

Jump to...

  • Main L/R Stereo

    2x 1/4" TRS, Bal.

  • Rec Out

    Stereo RCA

  • CTRL RM L/R

    2x 1/4" TS

  • Phones

    1

  • Channel Strips

    4

  • Aux Sends

    1

  • Pan/Balance Control

    Yes

  • Channel insert

    No

  • Volume Controls

    Rotary

Master Section

Jump to...

  • Aux Send Masters

    No

  • Phones Level Control

    Yes

  • Faders

    Main L & R (Rotary)

Metering

Jump to...

  • Number of Channels

    2

  • Segments

    4

  • Phantom Power Supply

    +48V DC

  • Switches

    Master

  • Digital Effect Processor

    No

Frequency Response

Jump to...

  • Mic input to any output

    20Hz - 60KHz: +0/-1 dB
    20Hz - 100KHz: +0/-3 dB

Crosstalk

Jump to...

  • Channel fader down

    <-90dB, other channels at unity

Noise

Jump to...

  • Master at unity, channel fader down

    -86.5 dBu

  • Master at unity, channel fader at unity

    -84 dBu

  • S/N ratio, ref to +4

    >90 dB

Microphone Preamp E.I.N

Jump to...

  • Microphone Preamp E.I.N

    <-129.5 dBm (150Ohms terminated, max gain)

THD

Jump to...

  • THD

    <0.005% (Any output, 1KHz at +14dBu, 20Hz to 20KHz, channel inputs)

CMRR

Jump to...

  • CMRR

    80 dB (1 KHz at -60dBu, Gain at maximum)

Maximum Level

Jump to...

  • Mic Preamp Input

    +10dBu

  • All Other Input

    +21dBu

  • Balanced Output

    +28dBu

Impedance

Jump to...

  • Mic Preamp Input

    2 KOhms

  • All Other Input (except insert)

    10 KOhms

  • RCA 2T Output

    1.1 KOhms

  • Ch Equalization

    2-band, +/-15 dB

  • Low EQ

    80 Hz

  • Mid EQ (mono channel)

    2.5 KHz

  • Hi EQ

    12 KHz

  • Low cut filter

    No

General

Jump to...

  • Built-in Power Supply

    100 VAC, 120 VAC, 220 to 240 VAC, 50/60 Hz

  • Dimensions (WxHxD)

    145 x 56.9 x 234mm (5.71 x 2.24 x 9.21")

  • Weight

    0.95kg (2.09 lbs)

About Phonic AM85

No-frills professional mixing - in short, that's what Phonic's AM series delivers. While some other companies focus on cramming the latest technological fads into their mixers, Phonic's AM series delivers the most robust and usable features relied upon by professionals. From our premium EQs to our highly refined noiseless circuitry, the AM series provides you, the sound professional, everything you need - nothing more, nothing less. No-frills professional mixing at its best.

Phonic AM85 Features

  • 2 mic/line inputs with 3-band EQ
  • 2 stereo inputs
  • Stereo AUX return
  • Post-fader EFX send on every input
  • Global +48V phantom power
  • Peak and VU Metering
  • Peak indicators on each mono input channel
  • 2T RTN assignable individually to Main or Control Room
  • Stereo EFX send cue for ease of monitoring individual channel
  • 1/4" TS stereo master output

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Phonic AM85 1-Mic/Line 2-Stereo Compact Analog Mixer
  • AC Adapter
  • Phonic 1 Year Limited Warranty
