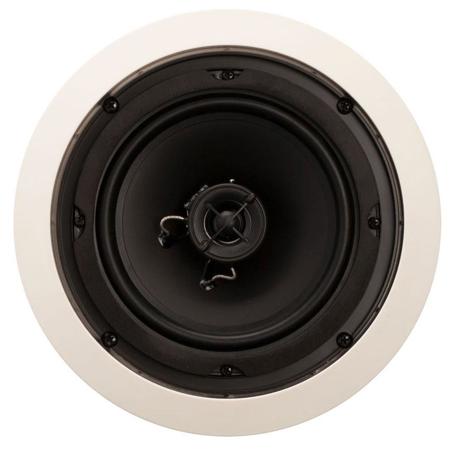

Phase Technology CS-6R 6.5" Coax In-Ceiling Speaker with Micro-Flange Grille, Master Pack - 16 Units

SKU: PHCS6RMP MFR: CS-6RMP
Earn VIP Reward Points

Key Features

  • Enjoy crisp audio with these Phase Technology in-ceiling speakers for home theater.
  • Experience balanced sound from 50 Hz to 20 kHz with these coaxial home speakers.
  • These 6.5" speakers ensure easy, paintable integration into any room's decor.
  • Achieve optimal sound with 87 dB sensitivity at 2.83V/1M for clear audio output.
  • These durable speakers offer a wide 5-100W power range, perfect for any home setup.
  • Install these speakers easily with a 8.06" cutout diameter for seamless integration.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$89.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Phase Technology CS-6R Specifications

  • Enclosure Properties

    Infinite Baffle

  • Source Inputs

    Metal Push Binding Posts

  • Frequency Response

    50 Hz - 20 kHz ( +/- 3 dB)

  • Grille Properties

    Flangeless, Magnetic, Powder-Coated, White, Paintable

  • Magnetically Boosted

    No

  • Mounting Depth

    2.87" (73mm)

  • Nominal Impedance

    8 Ohm

  • Driver

    Tweeter :0.75" Variable Axis Soft Dome
    Woofer: 6.5" Coaxial Polypropylene w/ NBR Surround

  • Recommended Power

    5-100 W

  • Sensitivity

    87 dB @ 2.83V/1M

  • Dimensions (D x Dia)

    3.4 x 9.1" (86.4 x 231.1mm)
    Cutout Diameter: 8.06" (204.7mm)

  • Weight

    2 lbs (0.91kg) Each

  • UPC Code

    748252171573

About Phase Technology CS-6R

While maintaining an elegant and minimalistic design, the CS-6R 6.5" Coax In-Ceiling Speaker with Micro-Flange Grille from Phase Technology sets a new standard for affordable, high-quality audio equipment. This innovative speaker is engineered with a 6.5-inch coaxial polypropylene cone, fortified with durable butyl rubber surrounds, ensuring longevity and consistent performance.

The CS-6R model also boasts a .75 inch variable-axis soft dome tweeter, a feature that enhances the clarity and richness of the sound output. This speaker is equipped with a true high-pass/low-pass crossover, a feature that allows for the seamless integration of high and low frequencies, resulting in a balanced and immersive audio experience.

The CS-6R's high-quality metal binding posts ensure a secure and stable connection, reducing the risk of audio distortion. The speaker's standout feature, the magnetic micro-flange grille, is one of the thinnest on the market. This stylish grille not only enhances the speaker's aesthetic appeal but also improves sound quality by reducing distortion and improving audio clarity.

The nearly invisible bezel of the CS-6R can be painted to blend seamlessly with your ceiling, making this speaker a stylish and unobtrusive addition to any room. For optimal performance, the CS-6R pairs perfectly with Phase Velocity's V52, V62, and V5520 models. Experience the blend of style, innovation, and efficiency with the CS-6R 6.5" Coax In-Ceiling Speaker with Micro-Flange Grille.

Phase Technology CS-6R Features

  • One 6.5" polypropylene woofer with butyl rubber surrounds
  • Two .75" soft dome tweeters
  • Auto-Reset Overload Protection
  • Absolute Phase Crossover Network
  • Ultra-Thin Magnetic Micro-Flange Grille

Key Features

  • Enjoy crisp audio with these Phase Technology in-ceiling speakers for home theater.
  • Experience balanced sound from 50 Hz to 20 kHz with these coaxial home speakers.
  • These 6.5" speakers ensure easy, paintable integration into any room's decor.
  • Achieve optimal sound with 87 dB sensitivity at 2.83V/1M for clear audio output.
  • These durable speakers offer a wide 5-100W power range, perfect for any home setup.
  • Install these speakers easily with a 8.06" cutout diameter for seamless integration.

What's in the box:

  • 16x CS-6R 6.5 " Coax In-Ceiling Speaker
  • 16x Grille
  • 16x Hole Template
  • Phase Technology 10 Year Limited Warranty
