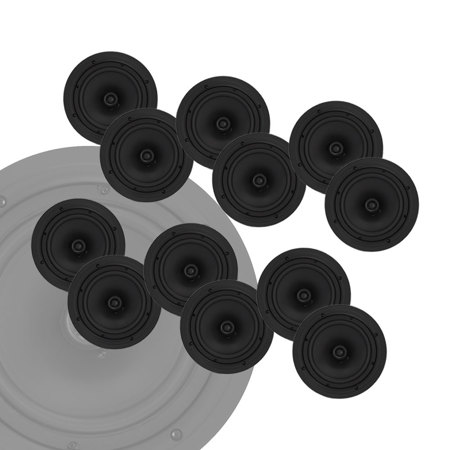

Phase Technology CS-8R 8" 2-Way Coax In-Ceiling Speaker - 6 Pair (12 Units)
See all Phase Technology items

Phase Technology CS-8R 8" 2-Way Coax In-Ceiling Speaker with Micro-Flange Grille, Master Pack - 6 Pair (12 Units)

SKU: PHCS8RMP
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Phase Technology CI20X: Picture 1 regular
Phase Technology CI20X 6.5" 2-Way Ceiling Speaker w/ Micro-Flange Grille
$286.00
Phase Technology CI20X: Picture 1 regular

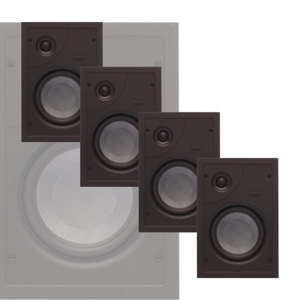

Phase Technology CI20X 6.5" 2-Way Ceiling Speaker with Grille, 4 Units
$1,029.60
Phase Technology CI6.0X: Picture 1 regular

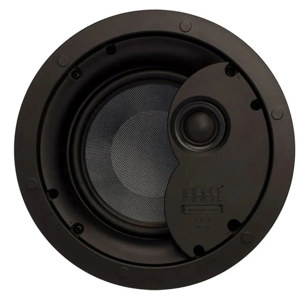

Phase Technology CI6.0X 6.5" 2-Way Ceiling Speaker with Grille
$171.60
Phase Technology CI6.0X: Picture 1 regular

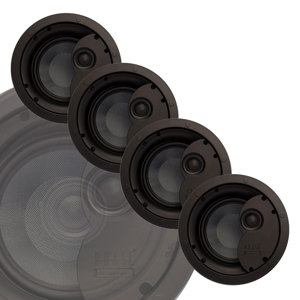

Phase Technology CI6.0X 6.5" 2-Way Ceiling Speaker with Grille, 4 Units
$617.80
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the CS-8R 8" 2-Way Coax In-Ceiling Speaker stand out?

The CS-8R stands out for its high-quality sound reproduction, thanks to its engineering for dynamic multi-channel audio technologies and traditional two-channel sources. It also features a .75 inch pivoting tweeter and an 8" coaxial polypropylene cone with butyl rubber surround for superb mid and low-end frequency performance.

Can the CS-8R 8" 2-Way Coax In-Ceiling Speaker be integrated into my room's aesthetics?

Absolutely. The CS-8R has an unobtrusive design with a paintable magnetic micro-flange grille and nearly invisible bezel, allowing it to blend seamlessly with your room's aesthetics.

What other equipment pairs well with the CS-8R 8" 2-Way Coax In-Ceiling Speaker?

The CS-8R pairs perfectly with Phase Velocity's V626, offering a comprehensive audio solution for your home or office.

Does the CS-8R 8" 2-Way Coax In-Ceiling Speaker handle both movies and music well?

Yes, the CS-8R is engineered to handle the dynamic range of multi-channel audio technologies, making it an ideal choice for both movie enthusiasts and music lovers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Phase Technology CS-8R Specifications

  • Enclosure Properties

    Infinite Baffle

  • Source Inputs

    Metal Push Binding Posts

  • Frequency Response

    42 Hz - 20 kHz ( +/- 3 dB)

  • Grille Properties

    Flangeless, Magnetic, Powder-Coated, White, Paintable

  • Magnetically Boosted

    No

  • Nominal Impedance

    8 Ohm

  • Driver

    Tweeter: 0.75" Variable Axis Soft Dome
    Woofer: 8" Coaxial Polypropylene w/ NBR Surround

  • Recommended Power

    5-120 W

  • Sensitivity

    87 dB @ 2.83V/1M

  • Dimensions (D x Dia)

    3.8 x 10.6" (96.52 x 269.2mm)
    Cutout Diameter: 9.63" (244.6mm)

  • Weight

    4.75 lbs (2.15kg) Each

  • UPC Code

    748252171665

About Phase Technology CS-8R

8" Coax In-Ceiling Speaker w/ Micro-Flange Grille. The CS-8R is engineered to handle the dynamic range of multi-channel audio technologies as well as traditional two-channel sources for outstanding reproduction of movies and music.

The .75 inch pivoting tweeter allows the speaker to be properly aimed at the listener in off-axis mounting situations while the 8" coaxial polypropylene cone with butyl rubber surround offers fantastic mid and low-end frequency performance. The CS-8R was designed to be unobtrusive to a room's aesthetics with its paintable magnetic micro-flange grille and a bezel that is nearly invisible. The CS-8R pairs with Phase Velocity's V626.

Phase Technology CS-8R Features

  • One .75" Variable Axis Soft Dome Tweeter in an Offset Design
  • Auto-Reset Overload Protection
  • Absolute Phase Crossover Network
  • Ultra-Thin Magnetic Micro-Flange Grille
  • Optional accessories: pre-construction bracket (AC-CS-8R-PCB), square microflange grille (CI7X-SG)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • One .75" Variable Axis Soft Dome Tweeterin an Offset Design
  • Auto-Reset Overload Protection
  • Absolute Phase Crossover Network
  • Ultra-Thin Magnetic Micro-Flange Grille
  • Optional accessories: pre-constructionbracket (AC-CS-8R-PCB), square microflange grille (CI7X-SG)

What's in the box:

  • 12 CS-8R 8 " 2-Way Coax In-Ceiling Speaker
  • 12 Micro-Flange Grille
  • 12 Hole Template
  • Phase Technology 10 Year Limited Warranty
