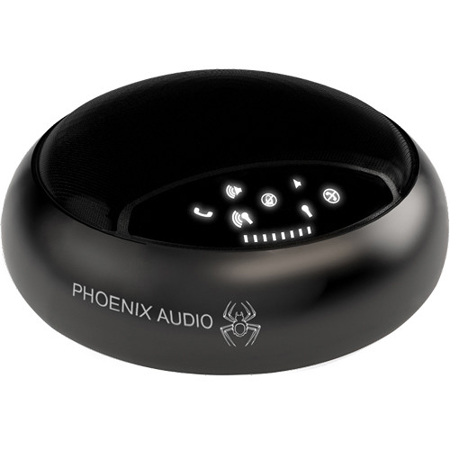

Phoenix Audio MT503 Smart Spider USB Conference Speakerphone

SKU: PHMT503

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Phoenix Audio MT503 Specifications

  • Connections

    UBS interface (mini B connector)
    3.5mm external loudspeaker and microphone jack
    Volume Up / Volume Down buttons
    Daisy chain expandability of up to 15 units

  • Power Consumption

    5V 500 mA peak through USB and wall mount AC/DC converted

  • Frequency Response

    50 Hz - 16 kHz

  • Low Latency

    10 ms

  • Broadcast Level Peak

    92 dB SPL at 1 m (5W RMS)

  • Bridging Capability

    3-way bridging

  • Noise Cancellation

    > 10dB(Without Pumping Noise)

  • Duplex Mode

    100% full duplex with no attenuation

  • Performance

    High-end performance confirms to ITU-T G.167

  • Echo Cancellation

    Acoustic Echo Cancellation: > 40 dB/s

  • Microphone

    4 high quality directional

  • Algorithm

    Direction-finding algorithm (determines the presence and direction of a speaker),Beamforming algorithm (forms and directs audio beams towards a defined direction)

  • Adjustments

    Automatic voice-level adjustment (AGC)

  • Software

    Plug-and-play - No installation or drivers
    Audio setup utility is available for Windows
    The setup utility helps monitor the audio input and output level but is not required
    Recording utility is available for Windows
    Recording utility allows you to record conversations to your computer via the device
    Operating systems: Windows 98 and up / Linux / MacOS

  • Dimensions (Dia. x H)

    7 x 1.9" / 177.80 x 48.26mm

  • Weight

    1.75lbs / 0.79kg

  • UPC Code

    854969001307

About Phoenix Audio MT503

The Smart Spider is a high-quality conference speakerphone that will turn any room into a professional conference room. It has an exceptionally large pickup and broadcasting range, yet is small in size and discreet in design. The Smart Spider utilizes multiple microphones, a uniquely designed speaker and a powerful DSP to achieve commanding performance.

• Bridging between USB and Smart phone or tablet
• Daisy chainable up to 14 units
• LED lit control buttons
• Four microphone beamforming array with directional LED lighting
• Full duplex communication
• DSP based algorithms
• Echo canceling
• Noise reduction
• De-reverb
• Automatic gain control

The intuitive and interactive user interface is incorporated through LED lights and discreetly placed throughout the unit. The Spider comes to life when It Is In action and displays only the needed functions depending on the specific scenario to provide an easy to use audio solution for your conference room.

The USB outlet allows you to connect to a computer for any web conferencing applications, such as Skype for Business, GoToMeeting, etc. The Smart interface on this model allows you to connect to any analog audio device. Included with this model is a 2.5mm to 3.5mm cable adapter that enables you to connect to any smart phone or tablet device, such as IPhone, Android, Blackberry, IPad, Galaxy, etc.

The Ideal Audio Conferencing Solution For:
• Smartphone and tablet conferencing (BYOD)
• Small offices or home offices
• Small to very large conference rooms
• Classrooms and training rooms

Performance
A state-of the-art acoustic design that delivers a pick up range and speaker clarity like no other conference phone on the market The Smart Spider's powerful DSP accompanied by Phoenix Audio Technologies proprietary algorithms provides best in class echo-cancellation, noise suppression and a true HD audio experience.

Intuitive User Interface
The Smart Spider is the first conference phone that you can see what your audio device is doing during the conference call. Discreetly placed LED lights under the grill and control buttons come to life when the Spider is in action.

Expand
The Smart Spider supports power daisy chaining of up to 14 slave units to cover any size conference room. The cable connectivity is conveniently placed under the unit for a sleek look in your conference room.

Connect
The Smart Spider is designed to fulfill your every conference room audio need. It has the capability to connect to your smart device and video codec simultaneously and perform a three way call bridge. With the Smart Spider there is no more need for multiple audio solutions for one conference room.

What's in the box:

  • Phoenix Audio MT503 Smart Spider USB Conference Speakerphone
  • USB Cable
  • International Power Supply Adaptor
  • Daisy Chain Cable (Ethernet)
  • 2.5mm (Male) to 3.5mm 4-Pin (Male) Cable
  • Interchangeable Wire Slot Cover
  • Phoenix Audio 2 Year Limited Warranty
