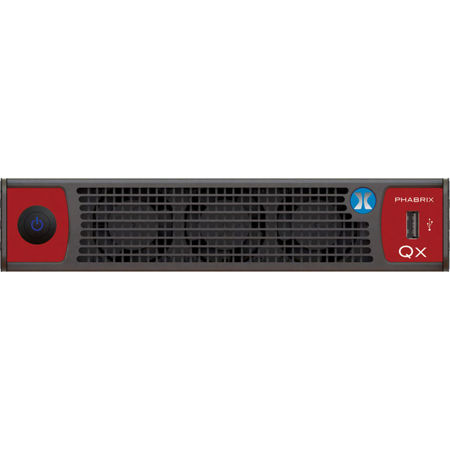

PHABRIX Qx 12G 1RU 1/2 Rack 4K/UHD (12G/6G/3G/HD-SDI) Rasterizer Analyzer/Generator with Eye/Jitter Toolset

Qx 12G

IP, 4K/UHD + HDR generation, analysis & monitoring
The top of the range Qx 12G is designed for next generation, hybrid IP/SDI environments using 4K/UHD (12G/6G/3G-SDI) and HD-SDI plus SMPTE 2110 (Upcoming software release) and 2022-6. The high performance Qx 12G offers 4K/UHD-SDI generation, analysis and video/audio monitoring as standard. It's available with ultra-responsive, 12G/6G/3G/HD RTETM (Real-time Eye) physical layer testing and can be upgraded to offer HDR instruments plus advanced, IP traffic analysis and stress testing.

4K/UHD (12G/6G/3G/HD-SDI) generation & analysis
• Simultaneous generation and analysis
• 12-bit YRGB/YUV waveform monitor with H,V zoom
• Vectorscope for checking color bias / conformity
• Test pattern generation, including Pathological and moving patterns
• 32 channel audio signal generation and embedding
• Video and audio monitoring
• REF locking and timing analysis

Physical layer testing
• HD/3G/6G/12G-SDI RTE (Real-time Eye) option for testing SMPTE compliance issues, including under/overshoot
• Jitter analysis in five specified frequency bands

System features
• Logging
• Configuration presets

Control
• TCP/IP interface for remote control and automated testing

Form factor
• Compact 1/2 RU
• Air filter option for live production
