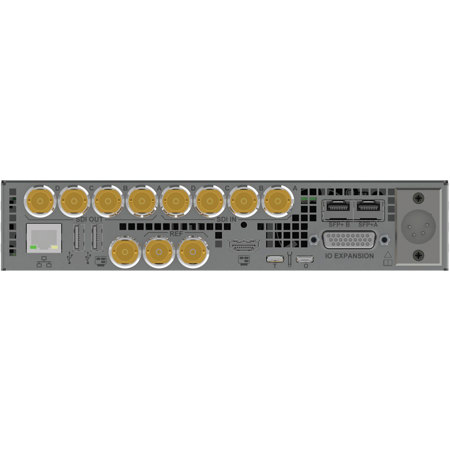

PHABRIX Qx IP 1RU 1/2 Rack Hybrid IP/3G/HD-SDI Rasterizer Analyzer with Eye/Jitter Toolset for ST 2022-6 Encapsulator/Decapsulator

Qx IP

IP, 3G-SDI + HDR generation, analysis & monitoring
The advanced Qx IP offers hybrid IP/SDI generation, analysis and video/audio monitoring for SMPTE 2110 (Upcoming software release) and 2022-6 plus 3G/HD-SDI environments. Designed for IP network traffic analysis and stress testing, the solution is also available with RTETM (Real-time Eye) 3G/HD-SDI physical layer testing. Qx IP can be upgraded with a comprehensive HDR/WCG analysis toolset, signal generator and even 12G/6G-SDI performance.

IP tools for analyzing congestion & stress testing
With Qx IP, you can quickly analyze SMPTE 2110 (Upcoming software release) and 2022-6 IP video network traffic to determine the cause of typical problems like packet congestion, packet loss and jitter. A high performance IP toolset includes a decapsulator with Packet Interval Timing (PIT) analysis for network traffic monitoring. There's also a unique signal generator with IP encapsulator and Packet Profile Generator for stress testing video networks.

Fast, automated 3G/HD physical layer analysis
Qx IP offers the fastest 3G-SDI physical layer testing, with its RTETM (Real-time Eye) technology instantly highlighting any SMPTE compliance issues, including eye under/overshoot. Additional physical layer tools include Jitter analysis with monitoring across five specified frequency bands, as well as UHD/HD pathological test patterns. Built-in automation control allows testing to be performed faster, more reliably and at lower cost.

IP generation & analysis
• SMPTE ST 2110 (Upcoming software release) and ST 2022-6 decapsulation / encapsulation
• Packet Interval Timing (PIT) analysis histogram for monitoring network traffic
• PIT Logging offers effective longer-term network monitoring
• Packet Profile Generator for stress testing video networks
• Stream & network analysis tools
• Network management multicast support (IGMP2,3)

3G/HD-SDI generation & analysis
• Simultaneous 3G/HD-SDI generation and analysis
• Waveform monitor for YRGB/YUV monitoring
• Vectorscope for checking color bias / conformity
• Test pattern generation, including Pathological and moving patterns
• 32 channel audio signal generation and embedding
• Video and audio monitoring
• REF locking and timing analysis

Physical layer testing
• HD/3G/6G/12G-SDI RTETM (Real-time Eye) options for testing SMPTE compliance issues, including under/overshoot
• Jitter analysis in five specified frequency bands

System features
• Logging
• Configuration presets

Control
• TCP/IP interface for remote control and automated testing

Form factor
• Compact 1/2 RU
• Air filter option for live production

IP toolset

Packet Profile Generator
• Unique Packet Profile Generator for stress testing video networks
• Create different packet interval timing distribution profiles to simulate IP network congestion conditions

Packet Interval Timing (PIT) analysis
• Stream health reporting using histogram to visualize distribution of packet arrival times
• Packet counts mapped against arrival time (MuS)
• Easy diagnosis of congestion with max, mean and min Inter Packet

PIT Logging
• Versatile PIT Logging tool offers effective longer-term network monitoring
• Tool can present accumulated max/min Packet Interval Timing (PIT) for all packets plotted against time

Network stream analysis
• Table identifies streams within an IP signal
• Presents protocol, bitrate, CRC status, source and destination addresses

IP network analysis
• Transmission and receive traffic analysis
• Monitoring packet types and sizes

SFP status monitoring
• SFP status for monitoring physical network connection
