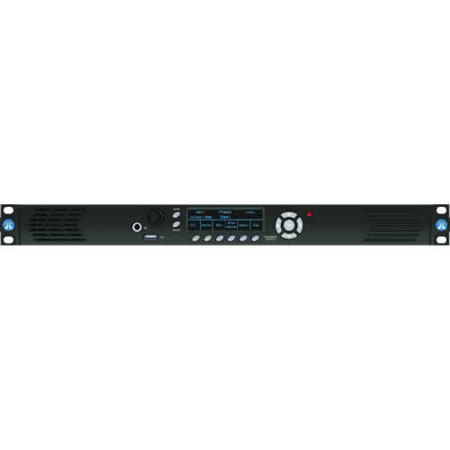

PHABRIX Rx 1000 (1RU) 4-Channel HD/SD-SDI Waveform Monitoring/Testing Analyzer with One Analyzer Module

Overcome the challenges of space-restricted broadcast facilities, OB trucks, and technology manufacturing with the Rx 1000 (1RU) 4-Channel HD/SD-SDI Waveform Monitoring/Testing Analyzer. This compact, 1RU device is a streamlined version of the Rx 2000, offering 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring without the need for dual built-in monitors.

The Rx 1000 is a versatile tool, capable of displaying up to 16 instruments per channel for in-depth video analysis and physical layer testing via an external monitor. It also doubles as a signal generator, making it a comprehensive solution for your video and audio analysis needs.

Experience rapid fault diagnosis with the Rx 1000's advanced features. It offers video and audio capture capabilities that can be automatically triggered when faults are detected, based on user-defined criteria. This feature, combined with remote access capabilities, allows engineers to monitor and analyze video from any location, speeding up the fault diagnosis process.

Optimize your workflows with the Rx 1000's highly customizable layouts. You can display up to 16 instruments simultaneously, with sizes ranging from full screen to 1/16 screen. The device also offers color-coded windows for each channel, simplifying channel identification in multichannel monitoring environments. With up to 99 layout presets available, you can easily tailor the device to suit individual operators and key applications.

The Rx 1000 is equipped with a comprehensive toolset ideal for broadcasters and video technology manufacturers. It includes up to four simultaneous Real-time Eye and Jitter physical layer analysis instruments, closed caption, loudness, and Dolby monitoring. It also supports 2K/3G/HD/SD-SDI generation, analysis, and monitoring, making it a versatile tool for any broadcast facility or OB truck.

The Rx 1000 also offers a range of advanced analysis tools, including support for WTS/OP42/OP47, EIA 608, and EIA 708 formats. It also features an ancillary data analyzer with support for ANC Timecode, reference VITC, and LTC.

For audio monitoring, the Rx 1000 supports up to 4 channels of loudness metering and monitoring, using selected stereo pair or 5.1 surround audio. It also supports ITU or EBU Recommendation 128, with automatic storage of loudness logs.

The Rx 1000's compact 1RU design, low power consumption, and remote control capabilities make it a practical and efficient solution for any broadcast or video technology environment. Its single analyzer module allows two signals to be connected and monitored continuously, providing a comprehensive solution for input feed confidence and video and audio level checking.
