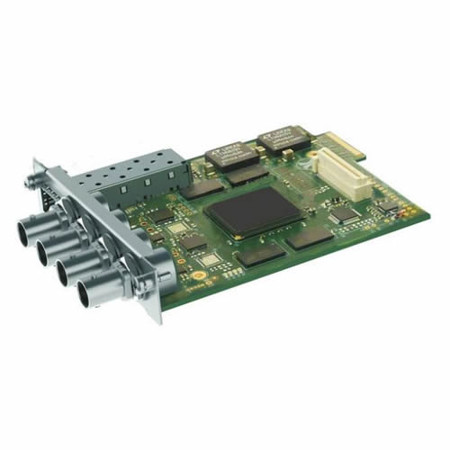

PHABRIX Single SDI Generator with Dual Link Support for Rx Series T&M Instruments

SKU: PHRXMGDL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

PHABRIX Generator Specifications

  • Generator SDI Outputs: Label

    SDI GEN-A OUT and SDI GEN-B OUT

  • Generator SDI O/p: Supported standards

    SD-SDI or HD-SDI. See Supported formats

  • Generator SDI Outputs: Connector

    BNC x 4

  • Generator SDI Outputs: Output Impedance

    75 ohm terminated

  • Generator SDI Outputs: Output Level

    +/- 400mV

  • Generator SDI Outputs: Purpose

    Generator Outputs

  • Generator Optical Ouputs: Label

    OPTICAL GEN-A and OPTICAL GEN-B

  • Generator Optical Ouputs: Type

    SFP Optical Dual Transmitter Module (option PHRXM-OPTGG)

  • Generator Optical Ouputs: Specifications

    SMPTE 424M, SMPTE 292M, and SMPTE 259M

  • Generator Optical Ouputs: Purpose

    To provide 2 optical video/audio outputs

  • Video test signals: Resolution

    10-bit (12-bit with PHRXO-3G)

  • Video test signals: Static Test patterns

    32+ including full frame

  • Video test signals: User defined

    DPX, YUV, TGA, BMP

  • Video test signals: Zone plate

    Yes

  • Audio test signals: Fixed tones

    17

  • Audio test signals: Variable tones

    1Hz-24Khz in 1Hz steps

  • Audio test signals: Intermittent tone

    Yes

  • Audio test signal:White noise generation

    Yes

  • Audio test signal: Audio levels variable

    0 to -100dB in 1dB steps

  • Audio test signals: Audio phase invert

    Yes

  • Test patterns: User File

    .bmp, .dpx, .yuv, .tga

  • Test patterns: Color Field

    Black, 75% Gray, 50% Gray, 25% Gray, white, red, green, blue, cyan, magenta, yellow

  • Test patterns: Zone Plate

    Moving, static, vertical sweep, horizontal sweep, custom

  • Test patterns: Color Bars

    100%, 75%, 75%+Red, tartan

  • Test patterns: SMPTE Bars

    219-100, 219-75, 219+i

  • Test patterns: ARIB Bars

    28-100, 28-75, 28+i

  • Test patterns: Staircase

    5 step vertical, 5 step horizontal,

  • Test patterns: Pathological

    Check field, EQ check, PLL check

  • Test patterns: Ramp

    Luminance horizontal, luminance vertical, component, chroma horizontal

About PHABRIX Generator

The generator module provides dual output in support of dual link or two independent test patterns with the same video standard and frame rate. The PHRXM-GDL module provides a dual link video signal generator functionality. The Generator menu allows the following test signals to be generated. The Generator provides:

• 32, 10-bit Line-based video test patterns such as color bars, ramp, color plate, multiburst and user defined (DPX, YUV, TGA, BMP ) that can be used to check video levels, linearity, saturation, hue, color phase and frequency response.
• Pathogenic video test patterns such as Bars+Red, SMPTE Bars, Check Field that can be used to check that decoding, encoding and transmission processes are correct.
• Zone Plate generator test patterns are provided and allow the selection of several predetermined zone plates as well as 3 user customizable zone plates.
• 17 fixed Audio test tones (fixed 100Hz to 20kHz ), variable tones (1Hz-24Khz in 1Hz steps), intermittent tone, white noise or silence on audio pairs and audio groups. Audio level variable (0 to -100dB in 1dB steps).

PHABRIX Generator Features

  • Dual Video signal generators providing 32, 10 bit Line-based video test patterns
  • Pathogenic video test patterns such as Bars+Red, SMPTE Bars, Check Field
  • Zone Plate generator test patterns plus 3 user customizable zone plates
  • Audio signal generators providing 17 fixed tones, variable tones, intermittent tone and white noise
  • SDI-SD / SDI-HD outputs
  • Optical SFP option (PHRXM-OPTGG)

What's in the box:

  • PHABRIX Single SDI Generator with Dual Link Support
  • PHABRIX 1 Year Warranty
