PHABRIX Advanced Physical Layer Analysis Software Option for PHRXM-AE, PHRXM-AGE Module and Rx2000, Rx1000, Rx500 Instrument Chassis

From advanced broadcast manufacturers to professional video editors, the Advanced Physical Layer Analysis Software Option for PHRXM-AE, PHRXM-AGE Module, and Rx2000, Rx1000, Rx500 Instrument Chassis (PHRXO-EA) is an indispensable tool for high-end video analysis. This software option expands the capabilities of the PHABRIX Rx range by introducing an additional jitter screen and enhancing the eye display.

Designed with a focus on high-end analysis tools, this software option offers a plethora of features tailored to meet the needs of professionals in the broadcast industry. It includes histograms, decade filters, multiple eye display, full screen jitter display, and alignment and timing thermometers, all complemented with comprehensive logging capabilities.

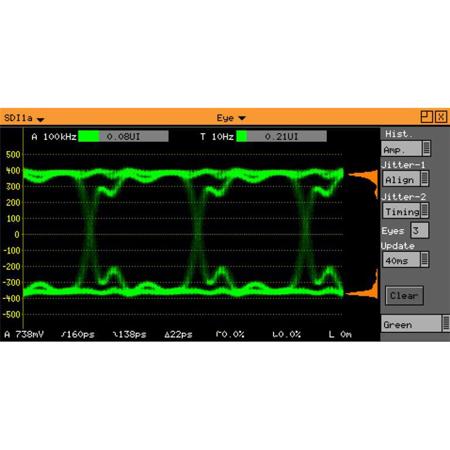

The software's multiple eye display feature is particularly beneficial when analyzing serializer jitter. It processes video in either a 10 or 20 bit parallel data domain, which is then transmitted as a single bit serial data stream. By triggering every 10 or 20 eyes, you can reveal repetitive parallel/serial clock domain jitter in the equipment being analyzed.

The software also includes histogram displays, providing statistical information that can be used to accurately measure rise time, fall time, and amplitude. These measurements can be logged for extended periods, ensuring you have a detailed record of your analysis.

The decade filters included in the software allow engineers to analyze the frequency content of any jitter present. The number of eyes displayed is adjustable, ranging from one eye up to one frame of eyes.

The full screen jitter analysis feature provides a separate display that allows engineers to analyze the nature of jitter present using a graph of jitter versus time. The decade filters are present here as well, and the time base can be adjusted from 1 line through to 1 frame. The dual jitter meters display the filtered effect controlled by the Jitter 1 and 2 filter values.

This Advanced Physical Layer Analysis Software Option operates with all SD/HD video standards and is compatible with 3G video standards if option PHRXO-3G is installed. It's an essential tool for any professional seeking to conduct in-depth video analysis.
