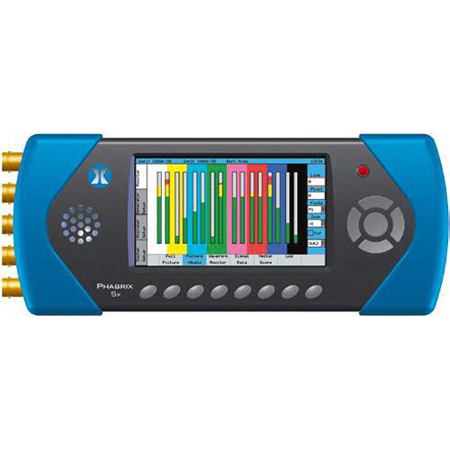

PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link, Includes PHSXO-F and PHSXO-VNC Software Options

Before you delve into the world of professional broadcasting and production, equip yourself with the PHABRIX SxD, an advanced 3-in-1 generator, analyzer, and monitor. This high-tech device is specifically designed for comprehensive post-production, studio, camera, and projector testing and measurement, supporting SD-SDI, HD-SDI, and 3G-SDI formats.

As an enhanced version of the popular PHABRIX SxA, the SxD model boasts dual input and output capabilities, supporting an impressive array of over 350 formats, including Dual Link. This innovative feature allows the SxD to accommodate a wider range of broadcasting and production needs, making it a versatile tool for professionals in the field.

The PHABRIX SxD is not just a handheld device, but a sophisticated instrument engineered for mobility. It features a full generator with 32 patterns, moving zone plate, and custom options, along with comprehensive analysis tools including waveform, vectorscope, and data toolsets.

Audio is not left behind with this device, as it supports 16 channels of embedded audio with level meters. It even offers Dolby E generation and analysis as an optional feature. All these functionalities are housed in a rugged aluminum case with a small profile, designed for durability and portability.

The device is powered by a low-consumption lithium polymer rechargeable battery, offering 2-3 hours of tether-free operation. It also features an Ethernet upgrade for easy firmware and software updates, ensuring your device stays up-to-date with the latest advancements.

The PHABRIX SxD stands out with its support for 3G, a feature highly valued by broadcaster manufacturers as the industry continues to debate the use of 3G level A or B in studios. It supports over 350 different combinations of formats, including the new SMPTE 372M for testing bit-rates of 2.970 Gbit/s and 2.970/1.001 Gbit/s over two wires capable of carrying 1080p video.

The device also supports different color spaces like 4:2:2 YUV, 4:4:4 RGB, 4:4:4 YUV, at 10/12 bit. With two inputs and two outputs, the PHABRIX SxD offers full CRC/EDH checking on each signal and logging throughout any test procedures.

The PHABRIX SxD is a testament to the brand's commitment to delivering focused technology and creative applications that impress a worldwide audience. Whether you're in broadcast manufacturing, studio production, outside broadcast facilities, or control room operations, the PHABRIX SxD is a reliable, professional-grade tool that offers flexibility and precision in one compact device.
