PHABRIX Advanced Eye & Jitter Analysis Software Option for SxE Handheld Signal Analyzer

A pinnacle of precision and efficiency, the Advanced Eye & Jitter Analysis Software Option for the PHABRIX SxE Handheld Signal Analyzer represents a significant enhancement for broadcast manufacturers and audiovisual professionals. This innovative software upgrade introduces a comprehensive jitter analysis screen, coupled with substantial improvements to the eye pattern display, ensuring that high-end analysis tools are at your fingertips.

The software's histograms feature delivers statistical insights, enabling the accurate measurement of critical signal parameters such as rise time, fall time, and amplitude. These measurements are automatically calculated with precision, and can be continuously logged over extended periods, providing invaluable data for quality assurance and troubleshooting.

Navigating the complexities of Serial Digital Interface (SDI) signals becomes a streamlined process with the PHABRIX SxE. The software excels in offering user-friendly, automatic measurements that remain reliable even amidst excessive jitter, a common challenge in the industry.

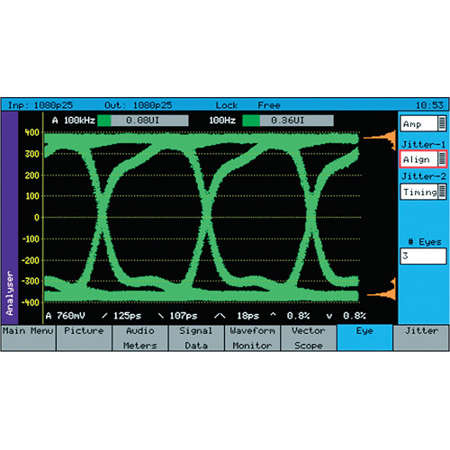

The inclusion of decade filters further refines the analysis capabilities. These filters allow engineers to dissect the frequency content of jitter with granularity, facilitating a deeper understanding of signal integrity issues. The adjustable eye display, ranging from a single eye to a full frame of eyes, is a versatile feature that aids in identifying power supply irregularities that may be affecting the source.

For scenarios involving serializer jitter, the Multi Eye Display is particularly beneficial. By triggering every 10 or 20 eyes, the software reveals repetitive parallel/serial clock domain jitter, a critical aspect when assessing the performance of video processing equipment.

The Full Screen Jitter Display is a standout feature, offering engineers a detailed graph of jitter over time. With the aid of decade filters and adjustable time bases, from one line to one frame, professionals can ascertain whether a signal meets specifications and pinpoint the origins of any issues. A spiky waveform, for instance, could suggest power supply noise, and the software's visual cues are instrumental in diagnosing such problems. The controls for vertical gain and horizontal magnification are thoughtfully provided to enhance problem identification and resolution.

Overall, the Advanced Eye & Jitter Analysis Software Option for the SxE Handheld Signal Analyzer is a testament to innovation, delivering precise, efficient, and user-friendly tools for advanced signal analysis in a portable format. It is the ideal upgrade for those seeking to expand the capabilities of their PHABRIX SxE Handheld Signal Analyzer and maintain the highest standards of signal quality in the dynamic field of broadcast and audiovisual technology.
