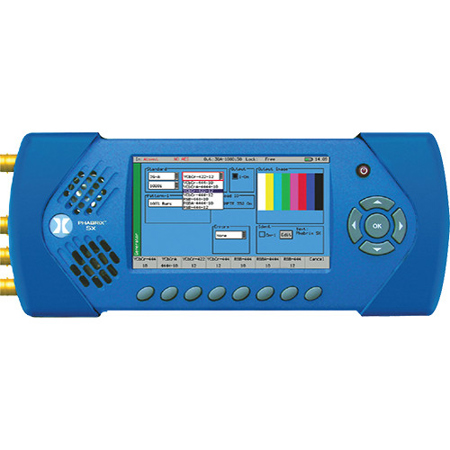

PHABRIX TAG Multi-Format HD-SDI/AES/Composite Analyzer/Generator/Monitor, Supports SDI, AES and Composite

SKU: PHSXTAGC MFR: PHSXTAGC
Earn VIP Reward Points

Key Features

  • Analyze & generate SDI signals with this multi-format analyzer/generator for broadcast needs.
  • Ensure top sound quality with 24-bit stereo audio DAC, perfect for critical audio monitoring.
  • Verify accurate video using the composite video input/output, vital for legacy system checks.
  • Utilize the web browser interface for remote control, enhancing workflow and system management.
  • Rely on the genlock feature for seamless integration, essential for synchronized broadcasts.
  • Trust in the durable design, featuring a Kensington lock for security in any studio environment.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PHABRIX Analyzer/Monitor Specifications

  • Resolution

    480 x 272 Pixels, auto scaling

  • Display Type

    9 24-bit Color TFT

  • Display Size

    3.7 x 2.1" (93.98 x 53.34mm)

  • Formats

    SD-SDI, HD-SDI

  • Input/Output

    1x 75Ohms BNC

  • EDH

    Yes (SD-SDI)

  • Genlock

    Bi/Tri/SDI with cross lock

  • Ref Generator

    Bi-Level PAL/NTSC +/-5 ppm

  • Generator Timing

    0 to 1 Frame WRT reference source

  • Composite Video

    Composite Video

  • Input

    1x 75Ohms BNC

  • Output

    1x 75Ohms BNC

  • Interface

    Single Tx, Single Rx, or Transceiver (Non-MSA)

  • Module Types

    See manufacturer's website for updated list of supported modules

  • Internal Speaker

    0.5W

  • Audio DAC

    24-bit Stereo

  • Headphone Socket

    3.5mm Mini with auto line out

  • Generator/Monitor

    48kHz 20-bit (SD-SDI), 24-bit (HD-SDI)

  • Metering

    16 Channel PPM with phase detection

  • AES Output

    75Ohms AES Pair via 15-way D-type

  • Analog Output

    Balanced stereo pair via 15-way D-type

  • Analog Input

    Balanced stereo pair via 15-way D-type

  • Navigation Panel

    Five menu keys, eight custom select

  • Integral Battery Supply

    Lithium-polymer, 2 to 3 hours

  • Internal Storage

    2GB

  • Remote Control

    Web browser interface

  • Ethernet

    Web server, remote control (TCP/IP Sockets)

  • Security

    Kensington lock fitting

  • Dimensions

    3.6 x 8.6 x 1.7" (91.44 x 218.44 x 43.18mm)

  • Weight

    2 lbs (0.91kg)

About PHABRIX Analyzer/Monitor

Discover the TAG Multi-Format HD-SDI/AES/Composite Analyzer/Generator/Monitor, a high-tech, advanced, and sophisticated tool designed for professional use. This innovative product by Phabrix, a reputable brand in the industry, offers a versatile solution for signal analysis and test pattern generation. It supports multiple signal types, including SDI, AES, and composite, making it an essential tool for a variety of applications.

The TAG is a handheld instrument that combines the functionalities of an analyzer and monitor, with an optional generator feature. It offers full support for PAL/NTSC SD-SDI and HD-SDI as standard, and includes a studio locking reference analyzer and generator. The device is designed with SFP support for NON-MSA optical or mini BNC packages, making it a truly portable tool for engineers on a budget who require mobility and value for money.

This professional-grade device provides a comprehensive analysis that includes picture display, waveform, vector scope, and data toolsets. It fully supports balanced analogue, AES, and embedded audio, with 16 channels of embedded audio and level meters. The TAG also offers full AES audio with 16 independent tones, and options for Dolby E, D, and D+ analysis and generation.

Designed with a small profile and a rugged aluminum case, the TAG is built for durability and ease of use. It operates coolly and efficiently, with low power consumption and full power management. The device is powered by a lithium polymer rechargeable battery, allowing for 2-3 hours of tether-free operation. For firmware and software upgrades, the TAG features an Ethernet connection for easy download and installation.

The TAG is more than just a signal analyzer and generator. It's a comprehensive tool that offers a range of advanced features and options for enhanced functionality. Whether you're working in a studio, OB, or lab environment, the TAG is the ideal solution for all your signal analysis and generation needs. With its state-of-the-art technology and extensive audio support, the TAG is a testament to Phabrix's commitment to delivering high-quality, reliable, and innovative equipment.

PHABRIX Analyzer/Monitor Features

  • Multi-format HD-SDI/AES/Composite Analyzer/Generator/Monitor for professional signal analysis
  • Supports multiple signal types including SDI, AES, and composite for versatile use
  • Full support for PAL/NTSC SD-SDI and HD-SDI, with optional 3G-SDI upgrade
  • Advanced analysis features including picture display, waveform, vector scope, and data toolsets
  • Comprehensive audio support with 16 channels of embedded audio and level meters
  • Durable, handheld design with a rugged aluminum case for on-the-go usage
  • Low power consumption and full power management for efficient operation
  • Ethernet connection for easy firmware and software upgrades
  • Enhanced functionality with options for Dolby E, D, and D+ analysis and generation
  • State-of-the-art technology from reputable brand Phabrix

Key Features

  • Analyze & generate SDI signals with this multi-format analyzer/generator for broadcast needs.
  • Ensure top sound quality with 24-bit stereo audio DAC, perfect for critical audio monitoring.
  • Verify accurate video using the composite video input/output, vital for legacy system checks.
  • Utilize the web browser interface for remote control, enhancing workflow and system management.
  • Rely on the genlock feature for seamless integration, essential for synchronized broadcasts.
  • Trust in the durable design, featuring a Kensington lock for security in any studio environment.

What's in the box:

  • Phabrix TAG Multi-Format HD-SDI/AES/Composite Analyzer/Generator/Monitor
  • SDI Signal Generator
  • AC Power Supply
  • Carrying Case
  • Phabrix 1 Year Warranty
