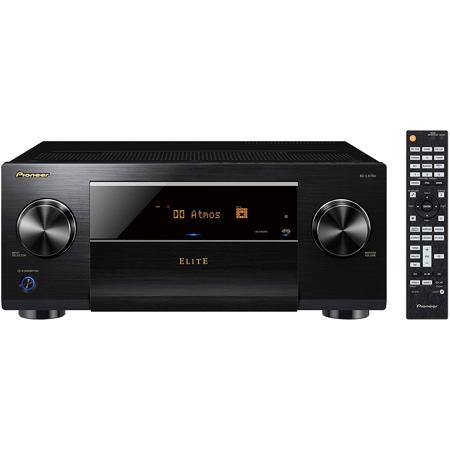

Pioneer Home Audio Elite SC-LX704 9.2-Channel Network AV Receiver with IMAX

Equipped with the 6th generation of Direct Energy HD Amplifier, the SC-LX704 is worthy of being your home cinema's centerpiece, and an ideal combination for Pioneer's flagship universal disc player. Two ES9026PRO DACs ensure quality audio reproduction, while MCACC Pro Auto Room Tuning technology with Full Band Phase Control brings out the best from 3D surround sounds of IMAX Enhanced, Dolby Atmos, and DTS:X. Enjoy rich, vibrant sound with PQLS jitterless transmission. The new Audio Exclusive Mode and AV Direct Mode enhance detailed sound reproduction by turning off the unused functions to eliminate unwanted noise.

Direct Energy HD Class D Switching Amplifier
Continuously evolving throughout the years, Pioneer's Direct Energy HD Amp has now reached the 6th generation. New power coils are adopted for the ideal speaker drive, as well as new custom film capacitors co-developed with Shinyei Capacitor for the ultimate sound. The power supply and patterning has been developed through repeated tuning. Also, the entire transmission path from the pre stage to the power stage has been changed to balanced circuitry, to transmit noise-free high-quality signals to the power stage.

MCACC Pro Auto Room Tuning
MCACC Pro, the pinnacle of Pioneer's auto room tuning technology, analyzes the phase and group delay characteristics to precisely control phase differences between speakers. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers. Required microphone included.

IMAX Enhanced MODE
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.

ESS 384 kHz/32-bit DAC
Two 384 kHz/32-bit ESS DACs (ES9026PRO), same as the ones used for Pioneers PD-70AE SACD player, are used for all channels. With extremely precise D/A conversion and high S/N ratio, the DAC provides powerful sound full of rich details.

Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.

DTS:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.

Full Band Phase Control
Pioneer's Phase Control technology effectively eliminates phase lag and significantly improves the multi-channel sound without any extra operation. Furthermore, The Full Band Phase Control technology focuses on the group delay in the speaker network filter, and adjusts the phase of each unit as well as the group delay for each speaker. Multi-range speakers gain the sound coherence of full-range speakers, while retaining the wide frequency range advantage. In an environment where the phase of all units and all channels are precisely controlled, a remarkably clear sound location with a surrounding feel is achieved. In combination with MCACC Pro, the ideal multi-channel reproduction environment can be created, which faithfully replicates object audio and the intention of the original content developer.

PQFA Jitterless Sound Processing for Network/USB
With PQFA (Precision Quartz File-based Audio), clocks are available for each stage of input, digital signal processing, and D/A conversion, and the shorter path prevents jitter from occurring. Additionally, a high-precision clock IC (OSC) is used to realise D/A conversion with significantly less jitter.

PQLS Jitterless Sound Transmission
With the precision quartz controller on the AV receiver, Precision Quartz Lock System (PQLS) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the Pioneer universal disc player connected via HDMI, giving the best possible digital-to-analog conversion.

Audio Exclusive Mode
Interference from video signals is eliminated by turning off the video signal path via HDMI. You can enjoy detailed sound, full of spatial feel.

AV Direct Mode
The feature turns off the network functions to suppress digital noise within the AV receiver, and improves sound quality for analog playback, digital input, HDMI playback etc. Mode 1 turns off the network module operation clock, while Mode 2 shuts down the network power completely for more superior sound.

Works with Alexa
Works with Alexa makes you control SC-LX704 with your voice via Alexa-enabled device such as the Amazon Echo, to play, pause, and skip titles or control the volume. You can enjoy the music via streaming service such like Amazon Music by selecting song title, artist name, release year, and genre.

Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.

High-Performance AC Cable
Included detachable OFC power cable contributes to superior sound.

Anti-Standing Wave Insulators
Features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.
