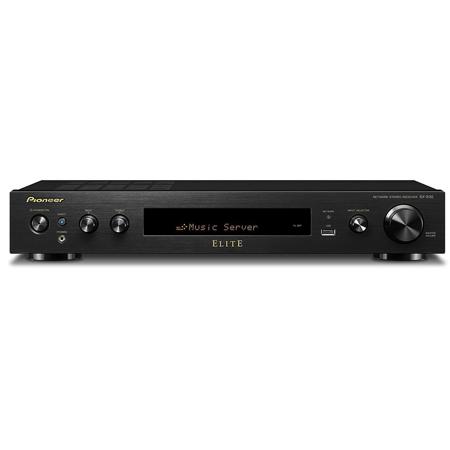

Pioneer Electronics SX-S30 2-Channel Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through HDR Compatible Receiver, 85W Per Channel at 4 Ohms

SKU: PISXS30

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Sean L : What is the wattage at 6ohms?
Michael P : Would this be a good match for my crewin Vega at 15 speakers. I’m using my pioneer sx 750 receiver that I had recapped?
Shopper : Why Did You Choose This?Seth C : bass management, iPhone ready, convenient UBS front socket, adequate rated power, small overall size. IMPORTANT: Please deliver to back door. Thanks.CORAZON M : Thinner ,lighter reasonable price. Streaming device readyWilliam N : Because pioneer is known for qualityMARY B : because of the slim profileMarc H : ReviewsWILL A : AirPlay and right price. Seems reliable and hope it sounds good!KATHERINE S : Because it does the jobSTEVEN D : Space efficient, runs cool enough to house on a small shelf and has a rich feature set.VEER M : 2 channel with network streaming and it had a pre-sub out.KATHERINE S : Only thing availableJEFFERY R : Well, I wish I could add a center channel speaker... but that's okay. I wish it had a couple of other things like a zone2 and/or a B set of speakers... but that's okay. Really, it is going to be perfect with the new pair of Klipsch RP-500m fronts I just bought and a Klipsch powered subwoofer I've had for years. It's going in a 14'x14' bedroom. It's going to be perfect... for me.RICHARD C : PowerKEVIN A : I have been looking for a slimline receiver for a while now. This is perfect for my new wireless SVS speaker system.KEVIN J : Price, availability & feature setDuncan M : to match existing units

Reviews about this item

Review Summary

2022-09-06T08:42:16

Rated 4 out of 5

Very Satisfied

Great unit, perfect for what I needed. Lots of thought put into it. Shipped fast as promised, smooth process. Would order from here again.

NICHOLAS E.

2021-04-18T11:42:22

Rated 4 out of 5

Great 2.1 audio. Small quirks, but one of the best and only 2.1 recievers on the market.

So, you get what you pay for, clean audio and nice visual presentation. My only real gripe, the UI is a little slow. It takes a while to load chromecast apps and spotify playback. Something to note, when you run the auto audio calibration, you may not get any action from your powered sub, that's because the auto eq doesn't think you need one. Go into sound settings and look for "double bass". Turn that on and your sub will be used again.

Veer M.

2021-03-26T14:00:00

Rated 5 out of 5

It is going in a 11? X 14? bedroom. It will be perfect.

Haven?t set it up yet.

Jeffery R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pioneer Electronics SX-S30 Specifications

Audio Section

Audio Section

Jump to...
  • Number of Channels

    2

  • Amplifier Type

    Class D

  • Power Output

    85 W at 4 Ohms, 1 kHz, 1& THD, 1-channel driven

  • Frequency Response

    10 Hz to 40 kHz / +1 dB, -3 dB

  • Signal-to-Noise Ratio

    80 dB (IHF-A, line in, SP out)
    70 dB (IHF-A, phono in, SP out)

  • Tone Control

    Bass: +/-10 dB, 90 Hz
    Treble: +/-10 dB, 7.5 kHz

  • Speaker Impedance

    4 to 8 Ohms

  • Formats Supported

    Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DSD, PCM

Connectivity

Jump to...
  • Wi-Fi

    Dual-band 2.4 / 5 GHz IEEE 802.11 a/b/g/n

  • AirPlay

    Yes

  • Bluetooth

    Version: 4.1+LE
    Frequency: 2.4 GHz
    Modulation Method: FHSS (Freq Hopping Spread Spectrum)
    Profiles: A2DP 1.2, AVRCP 1.3, HOGP-Host (Client), HOGP-HID Device (Server), HID Service (HIDS)
    Codec: SBC/AAC
    Transmission Range (A2DP): 20 Hz to 20 kHz (sampling frequency 44.1 kHz)
    Line-of-Sight Range: 49.2' (15 m)

  • Wireless

    FireConnect powered by Blackfire (via future firmware update)

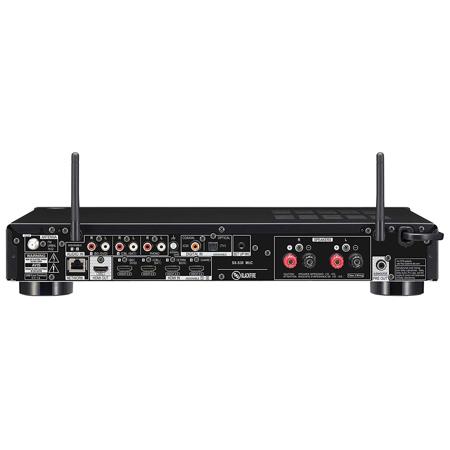

  • Inputs

    4x HDMI
    2x Stereo RCA
    1x Stereo RCA phono (MM)
    1x Digital coaxial
    1x Optical TOSLINK

  • Outputs

    1x HDMI with ARC
    1x Subwoofer pre-out
    1x 1/8" (3.5 mm) headphone (front)

  • Other Connectors

    1x USB (front) in
    1x Ethernet in
    1x FM Antenna in
    1x MCACC setup mic in

  • HDCP Version

    2.2

  • HDMI Support

    Deep Color, x.v.Color, LipSync, Audio Return Channel, 3D, 4K 60Hz, CEC, Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601), Content Type, HDR

  • Maximum Video Resolution

    4K 60 Hz (YCbCr 4:4:4)

  • Ethernet (LAN) Capability

    10BASE-T / 100BASE-TX

  • Speaker Connectors

    2x Binding post pairs

  • Input Sensitivity and Impedance

    Line, Unbalanced: 200 mV / 47 k Ohms
    Phono MM: 6 mV / 47 k Ohms

  • RCA Output Level and Impedance

    Subwoofer Pre-Out, Rated: 1 V / 470 Ohms

  • Headphone Output Impedance

    102 Ohms

  • Rated Output

    Headphone: 85 mW at 32 Ohms, 1 kHz, 10% THD

  • Phono Overload

    30 mV (MM 1 kHz 1%)

Radio Specifications

Jump to...
  • FM Tuner

    Yes

  • Tuning Range

    87.5 to 107.9 MHz

  • Number of Presets

    40

General

Jump to...
  • Power Requirements

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    Active: 55 W
    No Sound: 16 W
    Standby: 0.2 W
    Network Standby Off: 0.38 W
    Network Standby On / HDMI Standby Through: 2 W

  • Dimensions (WxHxD)

    17.12 x 3.06 x 13" (434.85 x 77.72 x 330.20mm)

  • Weight

    8.8 lbs (3.99kg)

  • UPC Code

    889951000488

About Pioneer Electronics SX-S30

FEATURED REVIEWS

It is going in a 11? X 14? bedroom. It will be perfect.

By Jeffery R.

Haven?t set it up yet.

Enjoy versatile audio playback with this two-channel Pioneer Elite network receiver. Its FlareConnect technology provides Wi-Fi and Bluetooth connectivity for smooth streaming of hi-fi music and on-demand radio services and it has dedicated ports for your turntable and various A/V components. This Pioneer Elite network receiver has a built-in FM tuner with 40 station presets for your favorite local programs. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.

• 85 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch Driven) 2-ch Receiver
• Built-in Bluetooth and Wi-Fi (Dual Band 5 GHz/2.4 GHz)
• Phono (MM) Input for a Vinyl Record Player
• Hi-Res Audio File Playback via USB/Network
• MCACC Auto Room Tuning with Included custom microphone

Streaming Services & Internet Radio

Enjoy listening to whatever music you like with streaming services such as Pandora, Spotify, TIDAL and Deezer. The unit is also preset with TuneIn for enjoying internet radio. With over 100,000 radio stations, you can listen to free broadcasts of music, sports, news and talk shows from around the world.

Connect with Chromecast built-in, AirPlay and Wi-Fi
With the Chromecast built-in network stereo receiver, you can use your mobile device to stream your favorite music, radio or podcasts to the receiver. You can control the audio from anywhere in the house using Chromecast-enabled apps. You can also stream songs from your music library with AirPlay or enjoy network features via dual band (5 GHz/2.4 GHz) Wi-Fi.

Built-in Bluetooth Wireless Technology
With Bluetooth Wireless Technology (ver. 4.1), you can easily stream songs from compatible devices. The SX-S30 features A2DP/AVRCP profiles, with support for SBC/AAC codecs.

Versatile Connectivity
The SX-S30 is equipped with the phono (MM) input for a vinyl record player, as well as optical and coaxial digital inputs for connecting other audio sources. The HDMI (HDCP 2.2) terminal lets you connect to your streaming devices' and enjoy audio streaming.

Hi-Res Audio File Playback via USB/Network
You can play up to 5.6 MHz DSD (Direct Stream Digital) files and up to 192 kHz/24-bit WAV, FLAC, AIFF and Apple Lossless files from a USB device or via wired or wireless network.

MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer's MCACC, developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance and equalizes response. As an innovative solution for the phase lag between the subwoofer and the main channel speakers caused by the network filter, Phase Control compensates the delayed bass to improve sound synchronization.

Multi-room Audio Offers a Variety of Ways to Enjoy Music
FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services and more with supported components and speaker systems. Music selection, speaker grouping and playback management across the home are built into the Pioneer Remote App.

Intuitive Control with New Pioneer Remote App (iOS/Android)
Enjoy smooth control with album artwork using your beloved device. With the free Pioneer Remote app, you can use your iPad/iPhone/iPod touch or Android smartphone for operating the network CD receiver or play back tunes stored on your device. You can also select internet radio stations and play songs from your media server.

What's in the box:

  • Pioneer Electronics SX-S30 2-Channel Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through HDR Compatible Receiver
  • RC-933R Remote Control
  • 2x AAA/R03 Batteries
  • Indoor FM Antenna
  • Speaker Setup Microphone
  • Pioneer Electronics 2 Year Parts and Labor Limited Warranty
