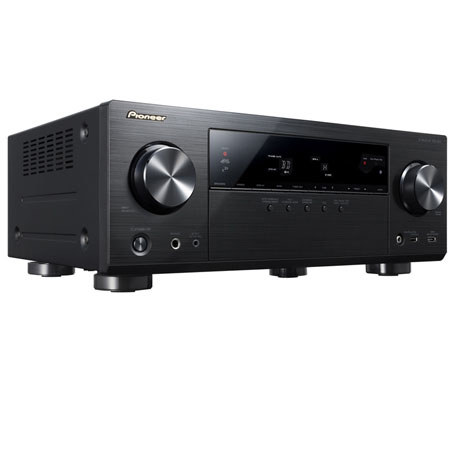

Pioneer Electronics VSX-823-K 5.1-Channel Network Ready AV Receiver, 140W Power Output/Channel, 192 kHz / 24-bit DAC, HDMI/USB

SKU: PIVSX823K

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pioneer Electronics VSX-823-K Specifications

  • Channels

    5.1

  • Amplification

    Direct Energy

  • DAC Type

    192 kHz / 24-bit

  • DSP

    Digital Core Engine with Texas Instruments Aureus

  • Power Output

    140 W per channel (6 ohms, 1 kHz, 1% THD, 1-ch driven)
    80 W per channel (20 Hz - 20 kHz, 0.08% THD at 8 ohms FTC)

  • Inputs

    HDMI x 5 (rear)
    HDMI (assignable, MHL compatible) x 1 (front)
    AV (composite) x 2
    Composite video x 1 (iPod/iPhone/iPad)
    Ethernet x 1
    Digital coaxial x 1 (assignable)
    Digital optical x 1 (assignable)
    Audio x 1 (assignable)
    USB x 1 (iPod/iPhone/iPad/USB drive)
    MCACC setup mic input x 1

  • Outputs

    HDMI x 1
    Monitor (composite) x 1
    Subwoofer pre-out x 1
    Headphone jack x 1
    Speaker jacks x 5 (5-channels)

  • I/O Ports

    Bluetooth Adapter Port for AS-BT200

  • Bluetooth Compatible

    Optional (requires AS-BT200 Bluetooth Adapter)

  • Dolby / DTS Decoding

    Dolby TrueHD
    Dolby Pro Logic IIz
    Dolby Digital Plus
    DTS-HD Master Audio
    DTS Neo:6

  • Power Requirements

    AC 120 V / 60 Hz

  • Power Consumption (Operating)

    450 W

  • Power Consumption (Standby)

    0.1 W

  • Dimensions (WxHxD)

    17.1x6.6x13.1" / 43.43x16.76x33.27 cm

  • Weight

    18.7 lbs / 8.48 kg

  • UPC Code

    8849382062235

About Pioneer Electronics VSX-823-K

The Pioneer VSX-823-K 5.1-Channel Network Ready AV Receiver features Direct Energy amplification with up to 140W per channel. It's equipped with Dolby and DTS high-definition surround sound decoding, Ethernet connectivity and a GUI that supports album artwork. The receiver features six HDMI inputs that support 4K and 3D pass-through, Audio Return Channel (ARC), Deep Color (36-bit) and x.v. Color. The front panel HDMI input also supports MHL 2.0 for Android audio/video playback. Plus, there are multiple advanced surround modes and an AM/FM tuner with 30 station presets.

The VSX-823-K is DLNA 1.5 Certified for network streaming. It is HTC Certified as well. It supports AirPlay for wireless audio streaming from compatible Apple devices. Plus, the receiver can also stream audio via Bluetooth, but an optional AS-BT200 adapter is required. You can use your iOS or Android mobile device as remote using the ControlApp. And, if you have the optional Bluetooth adapter, you can use the Air Jam App with your iOS or Android mobile device to share music and create playlists via Bluetooth.

The receiver also features multiple analog audio and video inputs, a coaxial audio input and an optical audio input. There is a front panel USB port as well, which you can use to connect your iPod, iPhone, iPad or USB drive. The USB port supports direct digital connection and it will even charge your device. Other features include multiple Pioneer sound enhancements and Pioneer Auto MCACC Room Calibration, which includes a setup mic so you can perfectly calibrate your system to your specific room dimensions.

Pioneer Electronics VSX-823-K Features

  • Dolby TrueHD, Dolby Pro Logic IIz and Dolby Digital Plus
  • DTS-HD Master Audio and DTS Neo:6
  • Digital Core Engine with Texas Instruments Aureus DSP
  • 192 kHz / 24-bit DAC
  • HDMI Audio Return Channel (ARC)
  • Pioneer Auto MCACC Room Calibration
  • Phase Control
  • Advanced Sound Retriever (2-channel)
  • Auto Level Control (2-channel)
  • Action, Drama, Advanced Game, Sports, Classical and Rock/Pop
  • Front Stage Surround and Extended Stereo
  • ECO Mode 1 and ECO Mode 2
  • Six HDMI inputs and one HDMI output
  • 3D Ready (Blu-ray Disc, Broadcast and Games)
  • Deep Color (36-bit) and x.v. Color
  • Ultra HD (4K) pass-through
  • Music file playback via LAN/USB (AIFF, Apple Lossless, WAV, FLAC, MP3, WMA, AAC)
  • 192 kHz / 24-bit audio playback (AIFF, WAV, FLAC)
  • Gapless playback for AIFF, Apple Lossless, WAV and FLAC
  • iPod, iPad and iPhone digital transmission via front USB port
  • USB port charges iPod, iPad and iPhone
  • Android audio/video playback with MHL 2.0
  • ControlApp ready for mobile device control of receiver (iOS and Android)
  • Share music and create playlists via optional Bluetooth connection (adapter required)
  • Air Jam App works with iOS and Android for optional Bluetooth streaming

What's in the box:

  • Pioneer VSX-823-K 5.1-Channel Network Ready AV Receiver
  • Setup Microphone
  • Remote Control
  • 2 x AAA Batteries (for Remote)
  • FM Wire Antenna
  • AM Loop Antenna
  • CD-ROM Owner's Manual
  • Pioneer Warranty
